Specification:

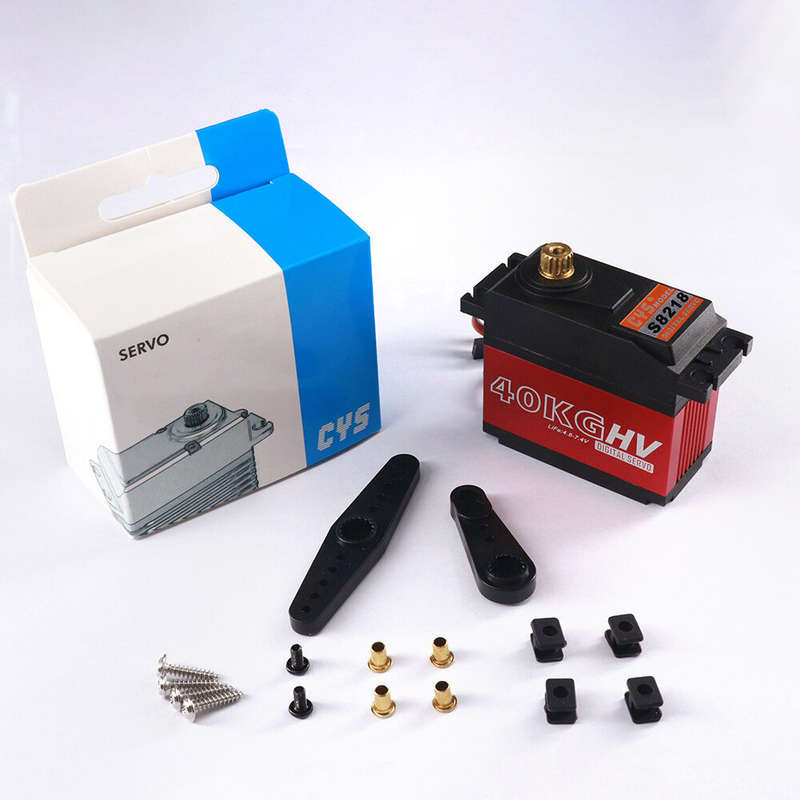

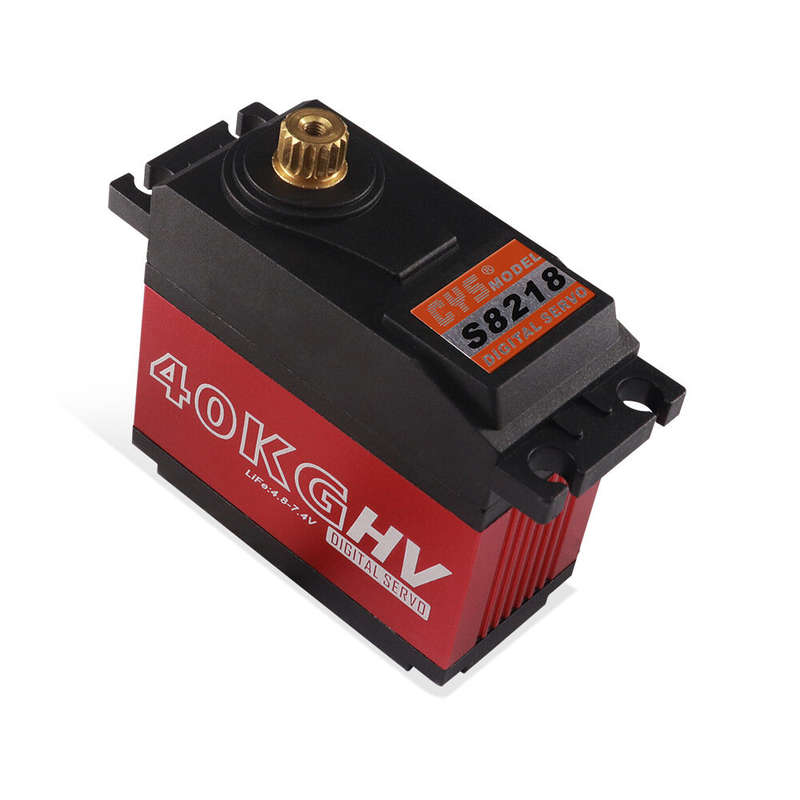

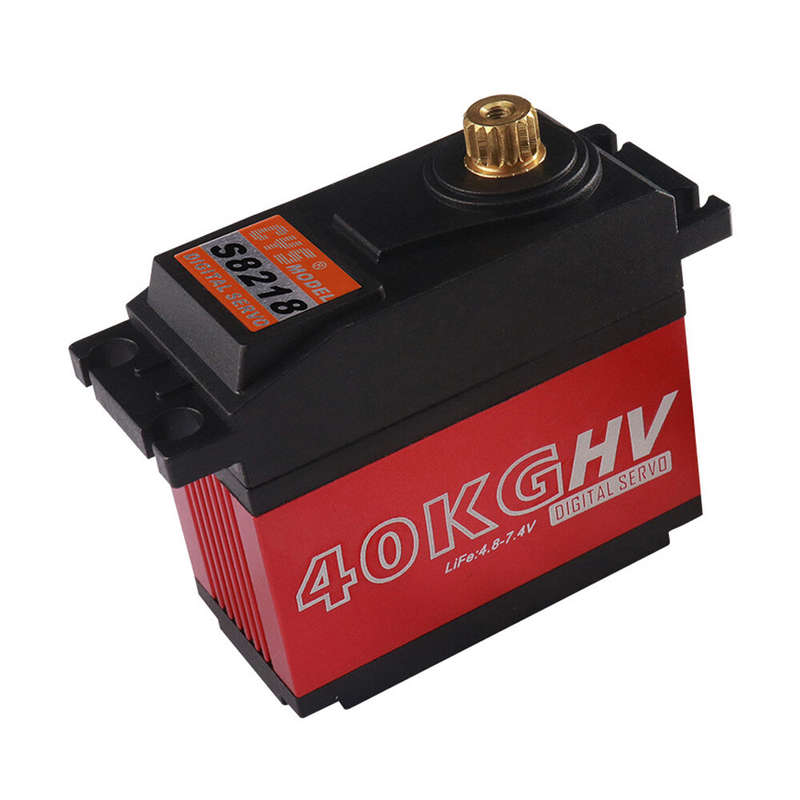

Item No.: CYS-S8218
Type: Digital
Weight: 164g
Size: 59.5*29*55.2mm
Control System: (+)Pulse Width Control 1500usec Neutral
Required Pulse
Operating Voltage: 6.0~7.4Volts
Operating Temperature Range: (-)10 to +50 degree C
Operating Speed (6.0V): 0.20sec/60° at no load
Operating Speed (7.4V): 0.18sec/60° at no load
Stall Torque (6.0V): 36kg.cm
Stall Torque (7.4V): 38kg.cm
Operating Angle: 45deg.one side pulse traveling 500 usec
360 Modifiable: No
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 700mA no load operating
Current Drain (7.4V): 20mA/idle and 900mA no load operating
Stall Current: 7.5A/8.6A
Dead Band Width: 4usec
Motor Type: 3 Pole Ferrite Drive
Bearing Type: Dual Ball Bearing
Horn gear spline: 17T
Gear Type: Metal
Connector Wire Length: 300mm
Wire info:
B
