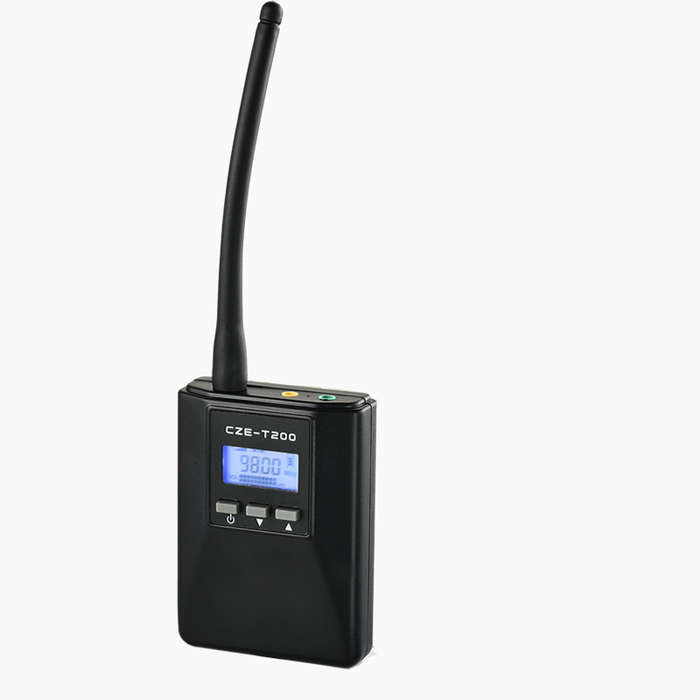

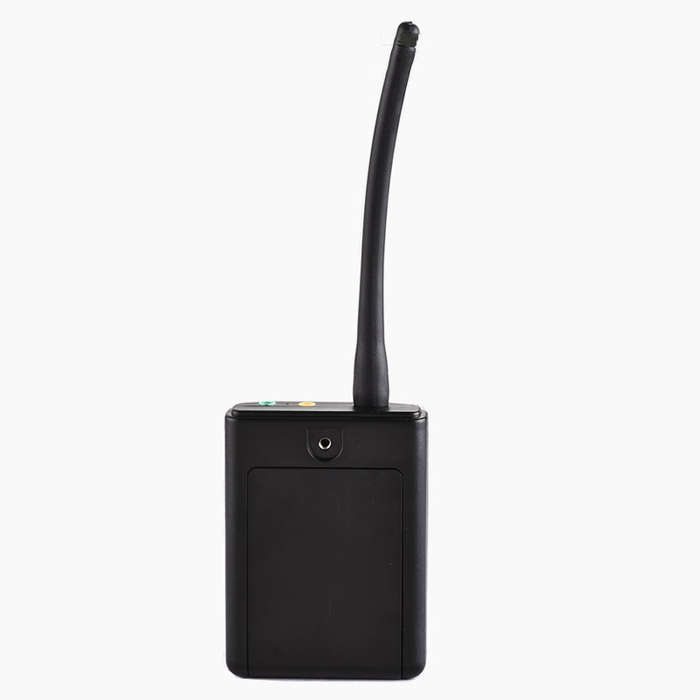

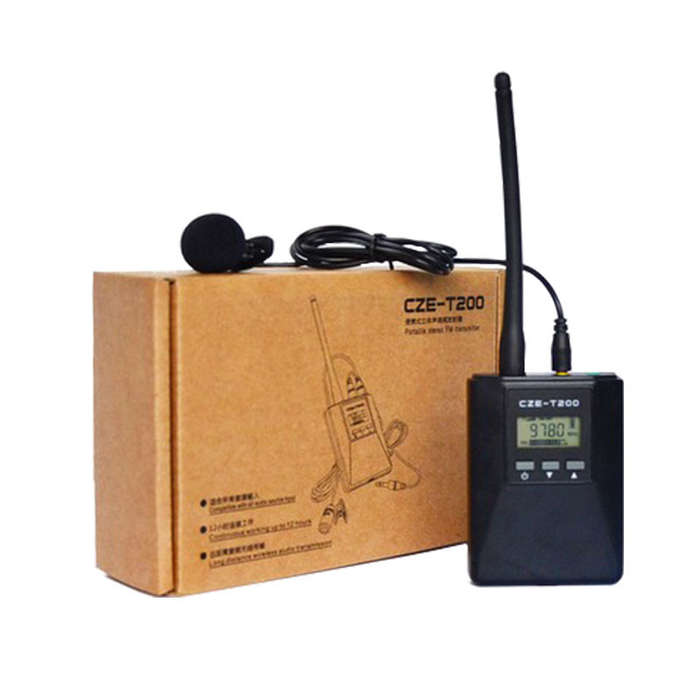

CZERF CZE-T200 0.2w Protable Stereo PLL Wireless Broadcast FM Transmitter Kits 76-108MHz Adjustable

Features: This CZE-T200 0-0.2w FM transmitter is a newly designed model featured by portable size,high quality, long broadcasting range and stable performance. It had 4 levels of power output, powered by 1000mah li-on battery. The maximum working time is 12hours at the lowest power level. It has both Stereo and Mono audio output, both line-in and microphone volume is adjustable by press the button on the case. It's very easy to operate, it's specially suitable for application areas like tourism, meeting, campus, driving school teaching, stadium, horse race, sports, and many other areas. We've also designed a high sensitivity FM Receiver to match the transmitter, its sensitivity is even better than Tecsun radios during our tests. Technical Specification: 1. Power supply: BL-5C Li-on battery, 3.7V 1000mAh 2. Frequency range: 87~108MHz / 76~90MHz (optional) 3. Frequency Stability: &pm;10PPM 4. Frequency stepping: 100KHz 5. RF power output (Level 1/2 /3/4) 0.01mW-10mW-100mW-200mW 6. Broadcasting range for reference (Level 1/2 /3/4) 10m-100m-300m-500m 7. Working time (Level 1/2 /3/4) 16h-10h-8h-6h 8. Battery Charging time: About 5hours, voltage is 5V. 9. Spurious, harmonic radiation: <= -60dB 10. Sound distortion: <=0.2% 11. Frequency response: 50Hz~15000Hz 12. Input level: <= -15 dBV 13. Frequency Modulation: &pm;75KHZ 14. SNR: >=60 dB 15. Device Size: 82*60*22mm (extruding part not included) 16. Weight: About 67g (Battery not included) Note: The antenna must install well before turn on the power, otherwise will very easy damage the power amplifier tube. Package included: 1 x CZE-T200 0.2w FM transmitter 1 x Reverse thread antenna 1 x Haning Buckle 1 x Battery 1 x Car charger 1 x DC charger 1 x Charging cable 1 x Microphone Details pictures:
