CZH CZE-7C FM 7W Transmitter Mini Radio Stereo Station PLL LCD with Antenna Kit

  Description:
cze-7c crust is made of high-quality aluminum, which also is the heating panel of power amplifier RD06HVF1, with blue backlight LCD to display five digits of frequency. Motherboard is applied with chip BH1415F, which is the new-generation integrated NC FM stereo radio chip by ROHM, built-in limiter and low pass filter circuit. Make sound more sweet. Control board is designed with high performance MCU STC series, its performance is better than AT89C2051. With microphone and audio input of the amplifier, adjustable input level. Transmitting power can switch between 1W and 7W.
Specification:FM Transmitter Frequencies:87-108Mhz
Tuning Step: 100Khz/0.1Mhz
Power Supply:12V DC (The current load of power supply should over 2A)
Stability of Frequency: ±0ppm-10~+50)
Frequency Response: 76 ~ 108Mhz
Signal to Noise Ratio: >70dB
Distortion: < 0.5%
Operation Time: True 24/7
Antenna Design:Metal telescoping antenna

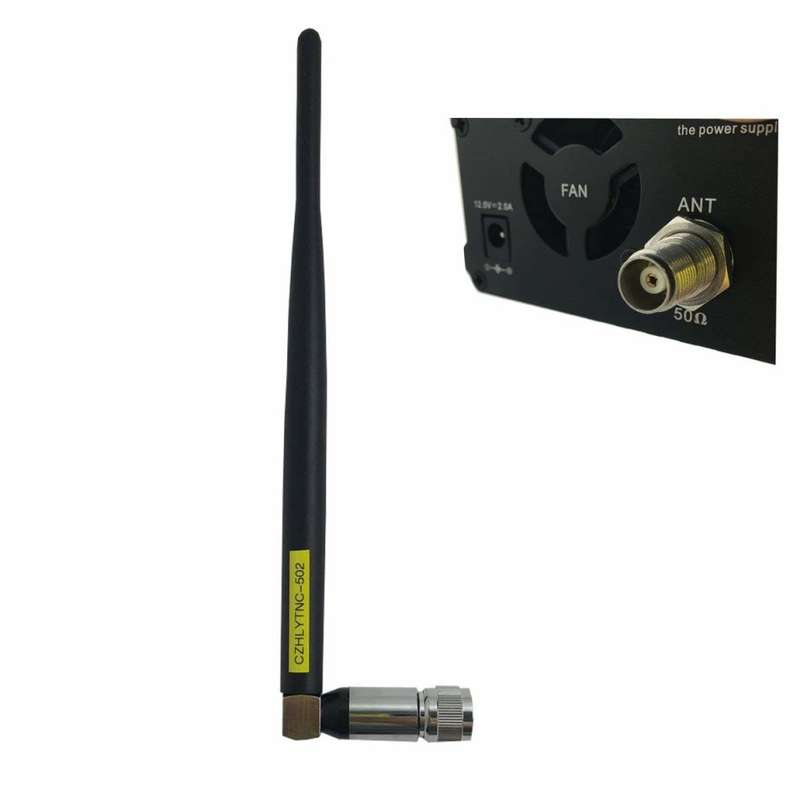

Antenna Connector:TNC type
Output Impedance:50 ohm
RF output power: 1W/7W (Power can be switched)
WHne you are in the high Power the Output the power generally 5-7W
Audio Input Connector:3.5mm
Mic Input Connector:3.5mm
Antenna type: TNC telescopic antenna IS-01
Tuning Design:Stable PLL Technology
Transmission Signal:FM Stereo
Size:160mm*95mm*54mm
