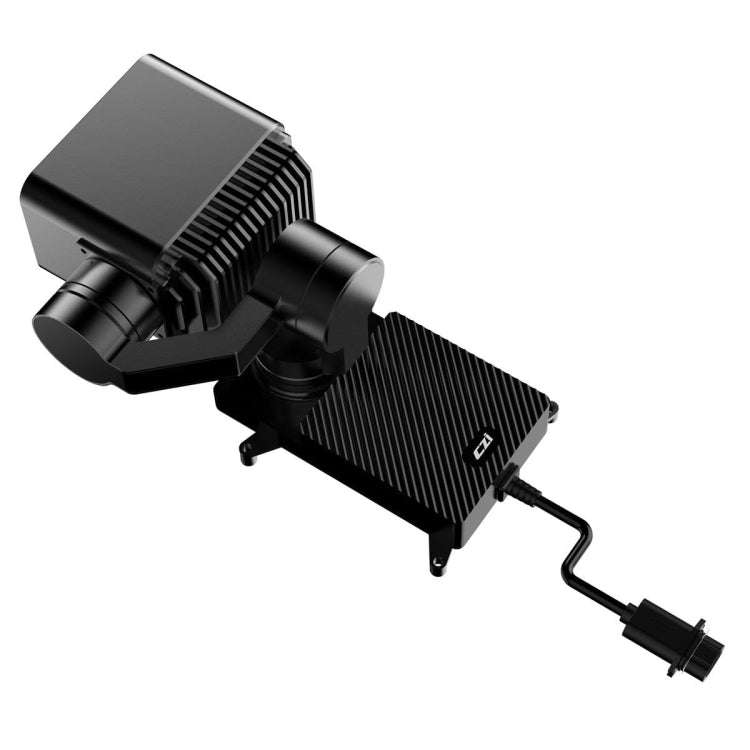

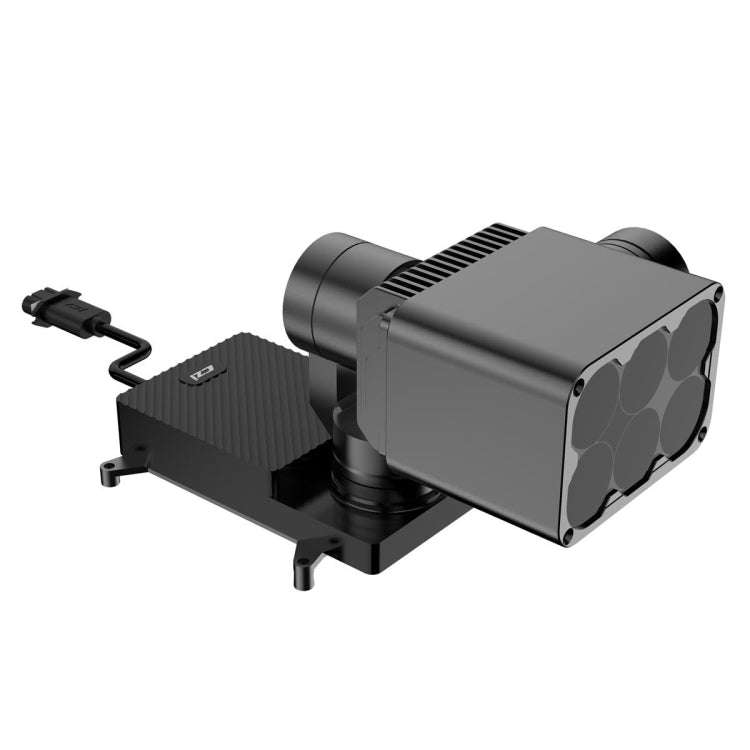

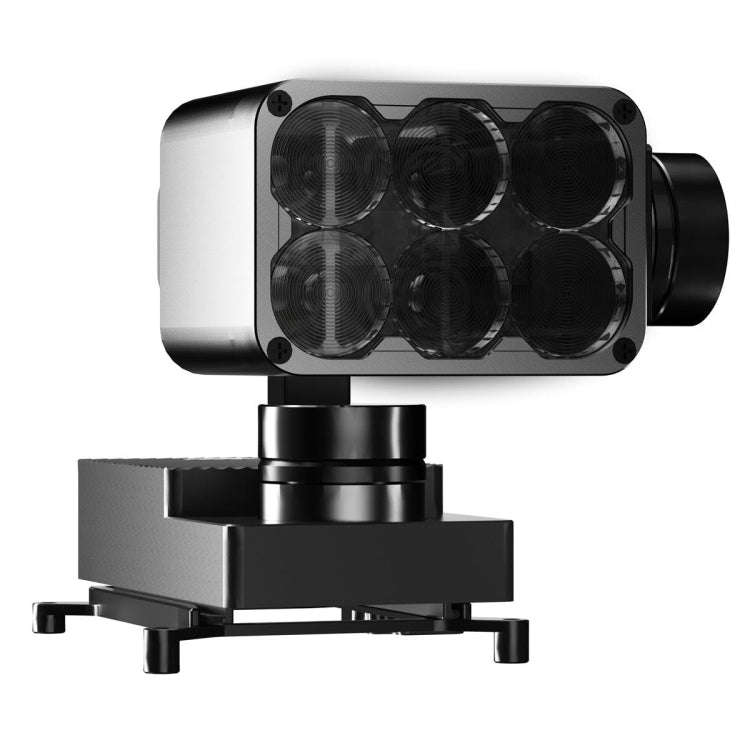

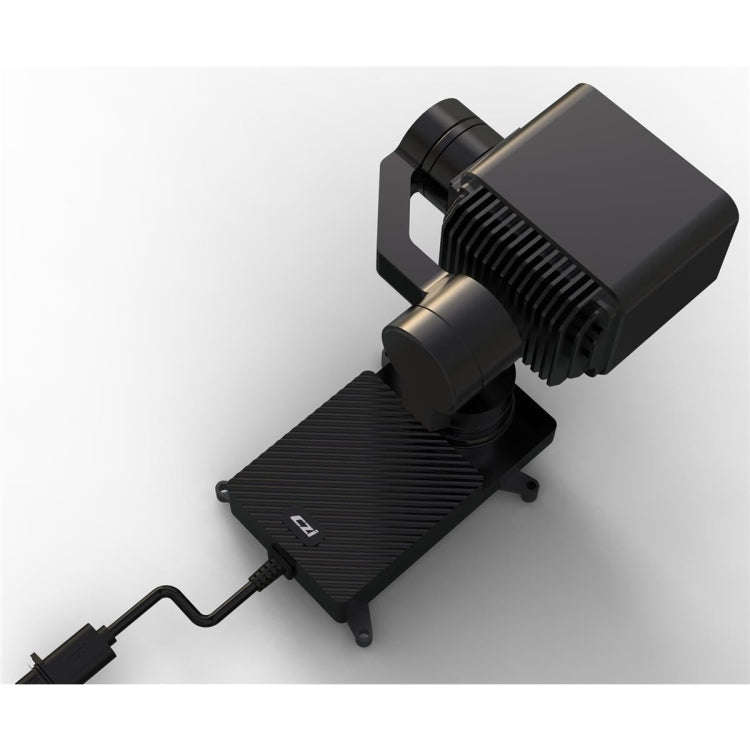

CZI GL60 Mini Gimbal Searchlight For DJI Matrice M30 Drone

1. The GL60 Mini three-axis gimbal searchlight weighs only 240g, but can provide a central brightness of 6000lm, with a rated power of 70W. It can emit a sharp beam at an angle of 13 degrees, and the effective search distance can reach 150 meters, bringing a more flexible and convenient lighting experience for drone night operations
2. The GL60 Mini integrates AI algorithm intelligent technology, the light spot can be automatically centered on the camera screen, and the light column changes with the angle;
3. Through the DJI SkyPort V2.0 interface, it can be applied to the DJI Jingwei M30 industry drone to meet the needs of night inspections, warnings and expulsions, power line inspections, search and rescue, and other night operations.

Parameters:
1. Electrical interface: DJI PSDK
2. Weight: 240g +/- 3%
3. Size: 135 x 87 x 84mm
4. Total power: 70W
5. White LED power: 60W
6. Red and blue LED power: 2W
7. Supply voltage: 24V
8. Luminous flux: 6000lm +/- 3%
9. FOV: 13 degrees
10. Search distance: 150m 100m 50m
11. Spot diameter: 34m 22.8m 11.4m
12. Search area: 917 square meters 407 square meters 102 square meters
13. Center illumination: 6.3Lux 14.4Lux 57Lux
14. Gimbal controllable rotation range: pitch -60~+110 degrees, roll -45~+28 degrees
15. Working temperature: -20~+50 degrees Celsius
