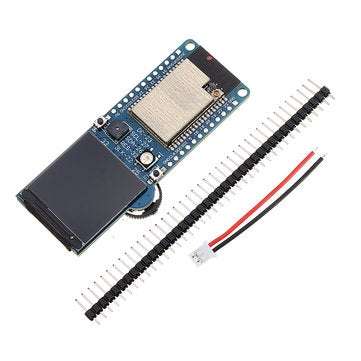

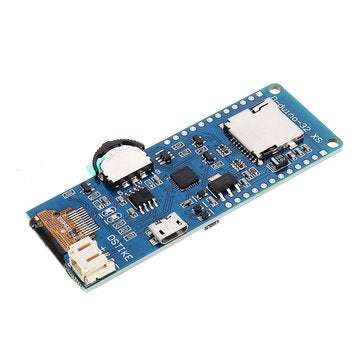

D-duino-32 XS ESP32 Development Board with TFT Color LCD

GPIOs and hardware info: Display: ST7789 1.3 Screen Display SDA(MOSI): GPIO 26 Display SCL/SCK: GPIO 27 Display DC: GPIO 23 Display RST: GPIO32 Display Background LED : GPIO22 (Low will close BackGround) Resolution: 240*240 WS2812b LED: GPIO 25 Buzzer: GPIO33 Button Up: GPIO 19 Button Down: GPIO 5 Button Select: GPIO 18 SD card GPIO12--DAT2 GPIO13--DAT3 GPIO15--CMD GPIO14--CLK GPIO2--DAT0 GPIO4--DAT1 GPIO21--card What makes it special 100mA power usage LM39100 Low Voltage Low-Dropout Regulator All GPIO breakouts and 3.3 and 5V output 2 LEDs to indicate battery charging status (Red:Charging,Green:Full) Protection: short, over charging, over discharging, temperature, reverse ESP32-Wrover inside(4MB Flash+4MB PSRAM) Auto download function integrated SD-card function integrated Passive buzzer and RGB LED Tutorial: 1. 2. 3. 4.Code Example Specs and Docs Package Included: 1 x DSTIKE D-duino-32 XS ESP32 Development Board
