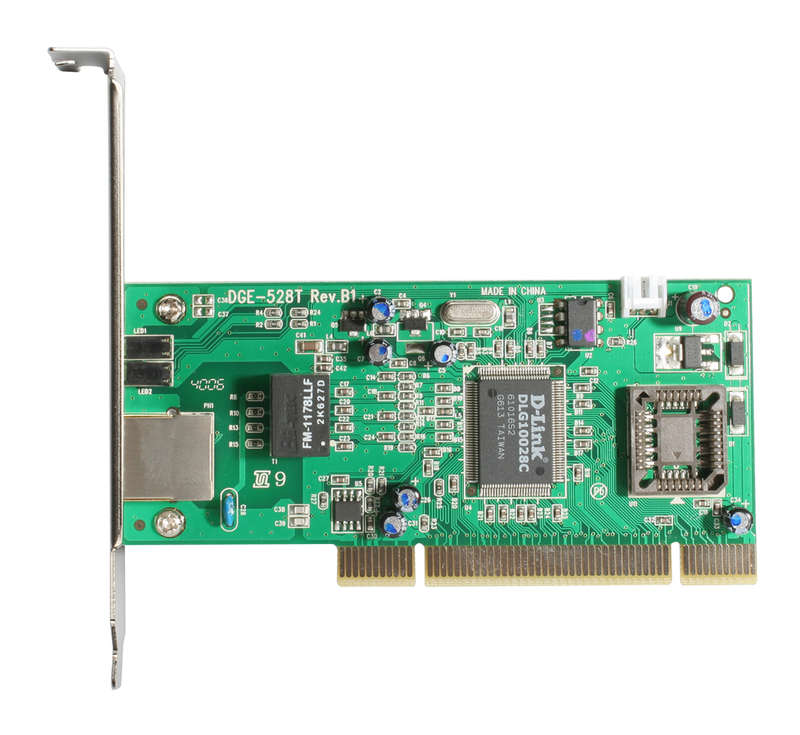

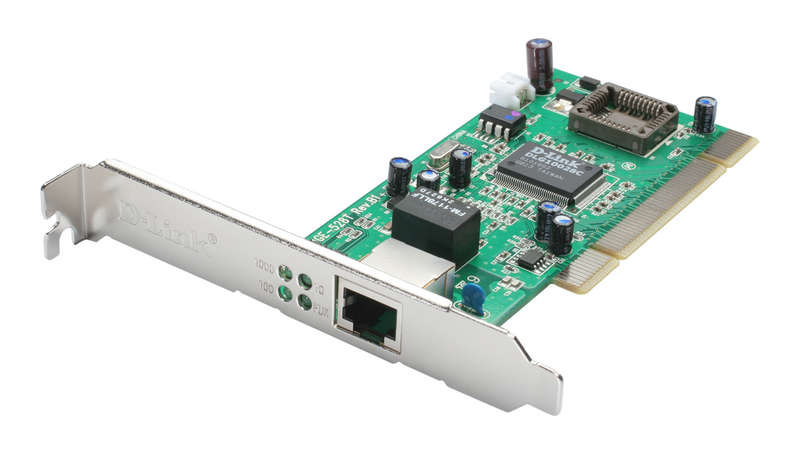

D-Link DGE-528T Gigabit PCI Ethernet Adapter

High-Performance Gigabit Speed

Capable of running at full-duplex Gigabit speed, this card gives your PC 2000Mbps data transmission on your existing Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, the card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation. In addition, as a single chip solution, this device consumes little power from a computer system.

VLAN To Improve Performance And Security

The card provides on-board screening of VLANs Tagged Ethernet frames, allowing your PC to be configured with a VLAN-supported switch. Your PC can be part of a VLAN network, where domains are segmented up to enhance performance and security.

Wake-On-LAN For Power Management

Wake-On-LAN (WOL) is an Advanced Configuration Power Interface (ACPI) function allowing a powered OFF computer to be powered ON from a remote station. This function allows the administrator to send wake-up signals to a computer. The WOL function provides a great utility for power management of the PC and allows users to initiate action at irregular times and from distant locations.

Flow Control To Minimize Packet Loss

The card's embedded flow control and independent FIFO provide a means to protect against possible data loss during transmission on the network. When connected to a Gigabit switch supporting flow control, the card receives signals from the switch regarding buffer overrun during peak usageperiods. The card then delays transmission until the switch is ready again to accept new data.

Copper Gigabit connection for PC

32-bit 33/66MHz clock speed PCI Bus Master operation

Built-in 72K FIFO buffer to reduce overhead of memory

802.3x Flow Control, auto MDI/MDIX support

Supports 802.1Q VLAN Tagging, 802.1p Priority Queues
