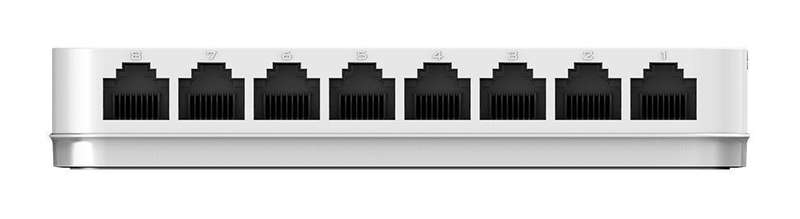

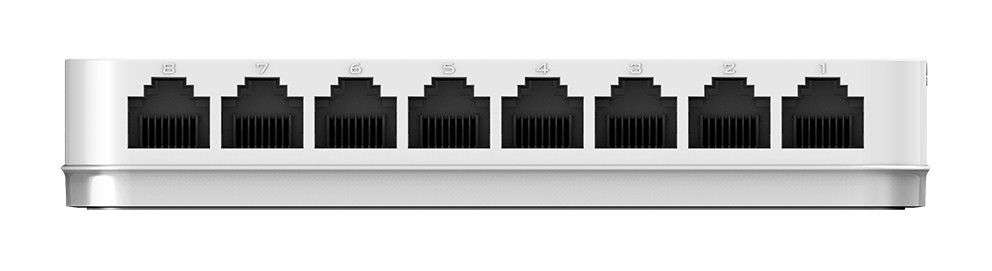

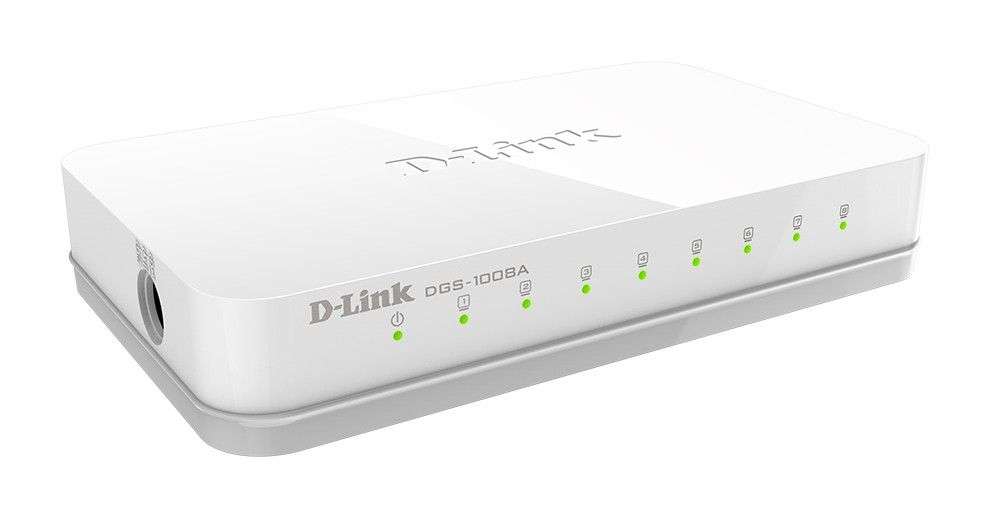

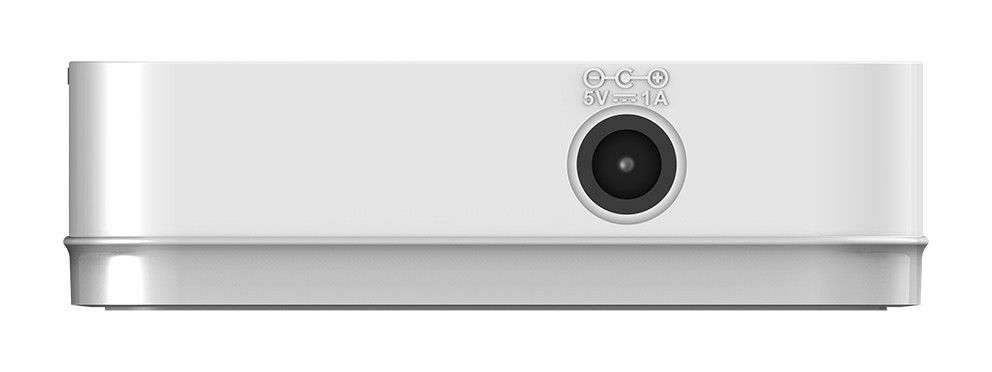

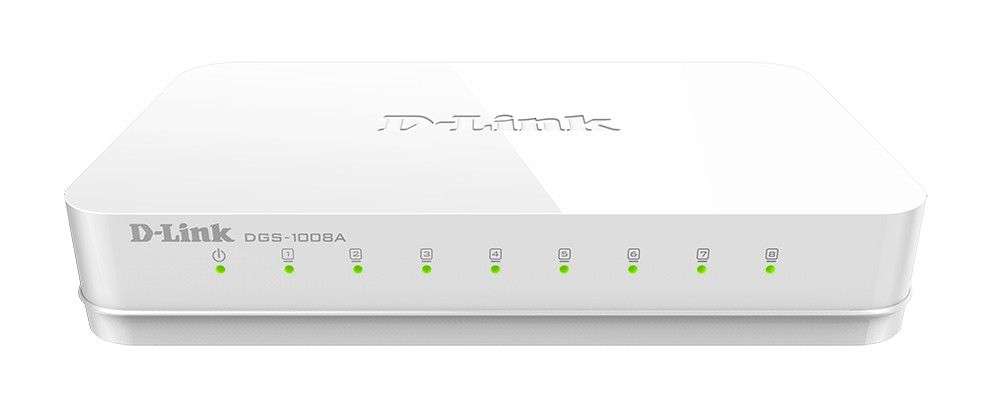

D-Link DGS-1008A 8-Port Gigabit Unmanaged Switch

D-Link DGS-1008A 8-Port Unmanaged Gigabit Switch - D-Link DGS-1008A 8-Port Gigabit Unmanaged Switch DGS-1008AE - The DGS-1008AE 8-Port Gigabit Desktop Switch is part of D-Links series of SOHO devices that allows you to easily expand and upgrade your network - Eight Gigabit Ethernet LAN ports for high-speed wired connections - Cable Diagnostics function notifies users of cable conditions through product LEDs - Reduces power to a port when no link is detected - Adjust power to a port by detecting the length of the connected Ethernet cable Technical Specifications Device Interfaces - Eight 10/100/1000 Gigabit LAN ports - Advanced Features - Green Ethernet - 16 Gbps switching fabric - Auto MDI/MDIX crossover for all ports - Secure store-and-forward switching scheme - Full/half-duplex for Ethernet/Fast Ethernet speeds - IEEE 802.3x Flow Control - Supports 9,216 Byte Jumbo Frames - Supports IEEE 802.1p QoS (4 Queues, Strict Mode) - Supports Cable Diagnostics Function Standards - IEEE 802.3 10BASE-T Ethernet - IEEE 802.3u 100BASE-TX Fast Ethernet - IEEE 802.3ab 1000BASE-T Gigabit Ethernet - ANSI/IEEE 802.3 NWay auto-negotiation - IEEE 802.3x Flow Control - IEEE 802.3az Energy-Efficient Ethernet (EEE) Protocol - CSMA/CD Data Transfer Rates - Ethernet - 10 Mbps (half duplex) - 20 Mbps (full duplex) Fast Ethernet - 100 Mbps (half duplex) - 200 Mbps (full duplex) Gigabit Ethernet: - 2000 Mbps (full duplex) Transmission Method - Store-and-forward MAC Address Table - 8 K MAC Address Learning - Automatic Update Packet Filtering/Forwarding Rates - Ethernet - 14,880 pps per port Fast Ethernet - 148,800 pps per port Gigabit Ethernet - 1,488,000 pps per port RAM Buffer - 128 KB per device Power - 5 V/1 A Power Adapter Power Consumption - Power On (Standby): DC input: 0.59 watts, AC input: 1.5 watts - Maximum: DC input: 3.48 watts, AC input: 5.4 watts Temperature - Operating: 0 to 40 degree C (32 to 104 degree F) - Storage: -10 to 70 degree C (14 to 158 degree F) Humidity - Operating: 10 percent to 90 percent non-condensing - Storage: 5percent to 90percent non-condensing MTBF - 522,270 hours Certifications - CE class B, - FCC class B - ICES-003 Class B - VCCI class B - C-Tick - cUL - CB - LVD

What's in the box
D-Link DGS-1008A 8-Port Unmanaged Gigabit Switch
