Think Green
Conserves Energy
Environmentally Friendly

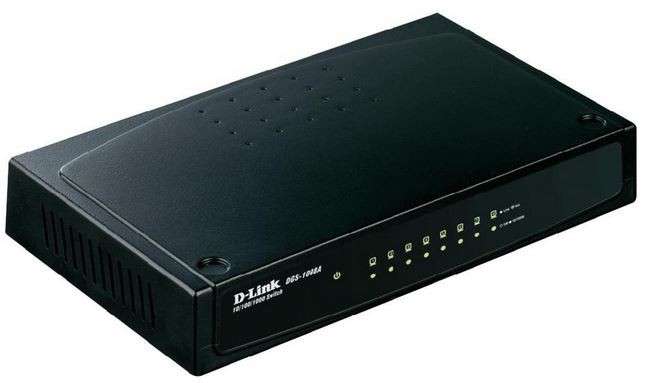

The 8-port Gigabit Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.
Technical Specifications | |
DGS-1008D | (8) Ports 10/100/1000Mbps |
MAC Address Table Size | 8K |
Switch Fabric | 16Gbps Forwarding Capacity |
Transmission Method | Store-and-forward |
Diagnostics LEDs | Per Unit: Power |
Per Port: Activity/Link | |
Packet Buffer Memory | On Chip 1MByte Buffer Memory Per Device |
Forwarding Rate | 10Mbps-14,880pps/100Mbps-148,810pps/1000Mbps-1,488,100pps |
Address Aging Timer | Automatic Update |
Max Power Consumption | 4.5 Watts (Max) |
QoS | 802.1p (4 Queues) |
Jumbo Frames | 9KB |
Interface Options | |
RJ-45 | 10BASE-T, 100BASE-TX & 1000BASE-T Universal UTP Cable Recognition for Straight-Through or Crossover Cables (MDI/MDI-X) |
Network Protocols and Standards | |
IEEE | 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3ab Gigabit Ethernet, 802.1p QoS |
Electrical & Emissions Summary | |
Emissions | CE Mark, FCC Class B |
Power Supply | DC Input: 7.5V 1A |
Safety Agency Certifications and Environmental | |
Safety | CSA |
Temperature | Operating: 0° -40° C (32° -104° F) |
Storage: -10° - 70° C (14° - 158° F) | |
Humidity | Operating: 10% to 90% RH, Non Condensing |
Physical Specifications | |
Dimensions (W x D x H) | |
Weight | |
Ordering Information | |
Part Number | Description |
DGS-1008D | Unmanaged Layer 2 Switch with (8) 10/100/1000BASE-T Ports |
Warranty Information | |
Warranty | Manufacturer's Warranty |
