Design
Product colour | Black,Silver |
---|---|
Rack mounting | Y |
Housing material | Metal |
Stackable | Y |
Form factor | 1U |
LED indicators | Activity,Link,Power,Speed |
Certification | cUL/UL\nCE LVD\nCCC\nCB\nBSMI |
Electromagnetic compatibility | ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC |
Certification | cUL/UL CE LVD CCC CB BSMI |
Power
AC input voltage | 100 - 240 |
---|---|
AC input frequency | 50 - 60 |
AC input frequency | 50/60 |
Power supply included | Y |
Input current | 0.3 |
Power consumption (max) | 13.3 |
Operational conditions
Operating temperature (T-T) | 0 - 40 |
---|---|
Operating relative humidity (H-H) | 0 - 95 |
Storage relative humidity (H-H) | 0 - 95 |
Storage temperature (T-T) | -10 - 70 |
Heat dissipation | 45.35 |
Weight & dimensions
Width | 280 |
---|---|
Weight | 1300 |
Depth | 180 |
Height | 44 |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity | 24 |
---|---|
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

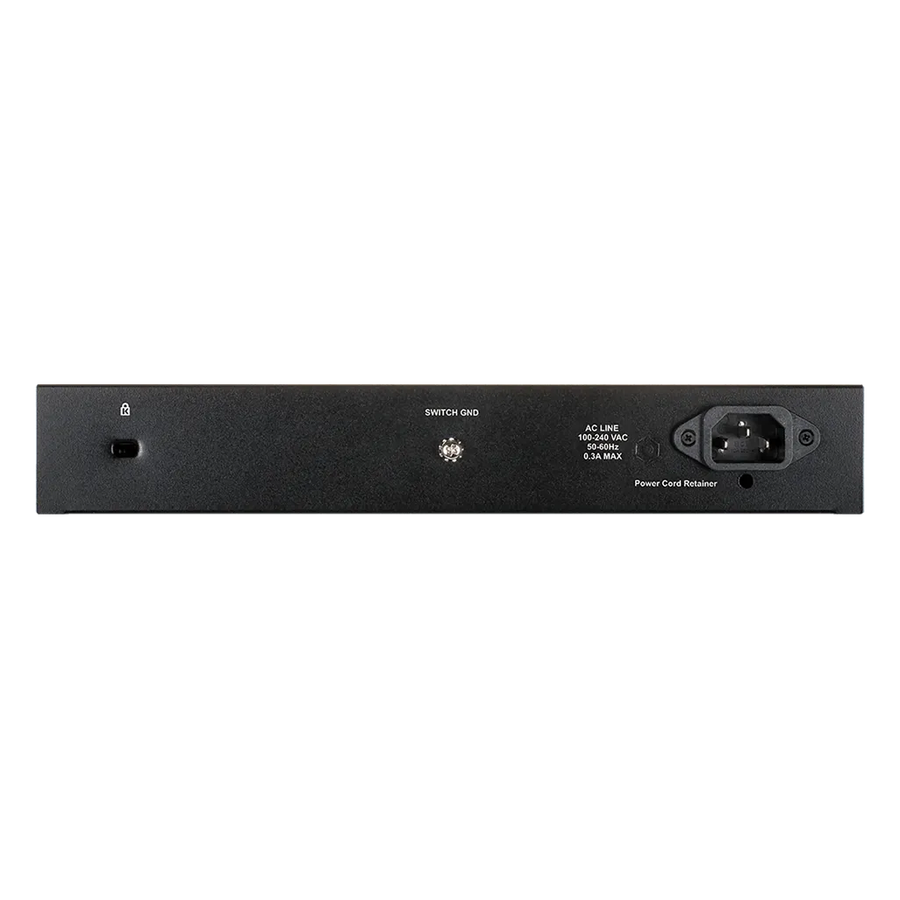

Power connector | AC-in jack |
Network
Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
---|---|
10G support | N |
Full duplex | Y |
Broadcast storm control | Y |
Flow control support | Y |
Auto MDI/MDI-X | Y |
Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-T |
Cable types supported | Cat3,Cat4,Cat5,Cat5e |
MAC address auto-learning supported | Y |
Active link detection | Y |
MAC address auto-aging supported | Y |
Power over Ethernet (PoE)
Power over Ethernet (PoE) | N |
---|
Data transmission
MAC address table | 8000 |
---|---|
Number of queues | 8 |
Jumbo frames support | Y |
Store-and-forward | Y |
Packet forwarding rate (1 Gbps) | 14880 |
Packet forwarding rate (100 Mbps) | 148800 |
Packet forwarding rate (10 Mbps) | 1488000 |
Switching capacity | 48 |
Packet buffer memory | 0.5 |
Forwarding rate | 35.71 |
Jumbo frames | 10000 |
Management features
Switch type | Unmanaged |
---|---|
Quality of Service (QoS) support | Y |
Performance
Mean time between failures (MTBF) | 863100 |
---|
