D-Link DKVM-4U 4-Port USB KVM Switch
Features
- VGA/SVGA Monitor Support
- USB Connection to Keyboard & Mouse
- Connects Up to 4 Servers/PCs
- PC/Server Selection Through Push Button or Hot Key Command
- Automatic Scanning of PCs Every 10 Seconds
USB KVM Switch For 4 PCs
The D-Link DKVM-4U KVM switch is a handy device that allows you to control up to 4 PCs using only one monitor, keyboard and mouse. The monitor and the two input devices are connected directly to this KVM switch and not to the client computers. For office users with a need for several PCs, this KVM switch box eliminates the need for several monitors, keyboards and mice, saving the money and desktop space. The DKVM-4U is also a cost effective solution for control of several servers in a computer room, allowing an engineer to handily manipulate all connected computers from a single monitor, keyboard and mouse.
Save Money and Space
The DKVM-4U allows you to control up to 4 computers from a single keyboard, monitor and mouse, so you don't have to purchase a monitor, keyboard and mouse for each PC. Your desktop will also look less chaotic. Your KVM switch can be placed underneath your desk, with 4 sets to KVM cables connecting from this switch box to 4 computers. Each KVM cable set includes a video cable for PC's VGA connector, and a single USB 2.0 cable for the PC's USB port. From the KVM switch box, you can connect to 2 USB devices: a USB keyboard and a USB mouse. 2 sets of KVM cables are provided for ready connection to 2 computers, the remaining KVM cables are optional.
Easy Control
You can switch quickly between the individual client computers by pushing a button on the DKVM-4U or by pressing the hot keys on your keyboard. The KVM switch confirms the switchover with an acoustic signal, and has LEDs indicating which PC is currently being served by the console. All connected PCs are automatically scanned every 10 seconds, so your monitor, keyboard and mouse are updated whenever you switch to a selected PC. CAPS LOCK, NUM LOCK and SCROLL LOCK key's status for each computer is automatically recalled. The DKVM-4U guarantees that the client PC does not crash when it is disconnected from KVM switch box.
High Monitor Resolution Support
The DKVM-4U is capable of supporting the most demanding resolutions (VGA, SVGA and Multisync monitors) of up to 2048 x 1536 at 75Hz refresh rate (bandwidth up to 400MHz) without any noticeable degradation in image quality.
Technical Specifications
Connectors to Computers

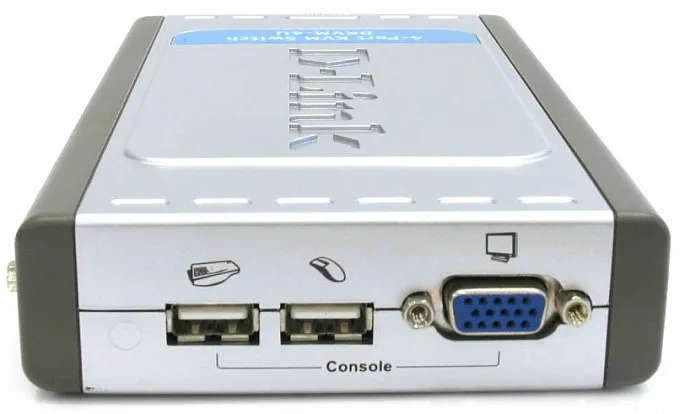

Connectors to Console
DB-15 HDDB video connector (to console monitor)
USB Type A connector (to console USB keyboard)
USB connector (to console USB mouse)
Computer Selection: Through push button, Through hot keys
Power Supply: Directly from connected computer's USB port, no external power adapter required
Box Includes
Optional KVM Cables (To be purchased separately)
