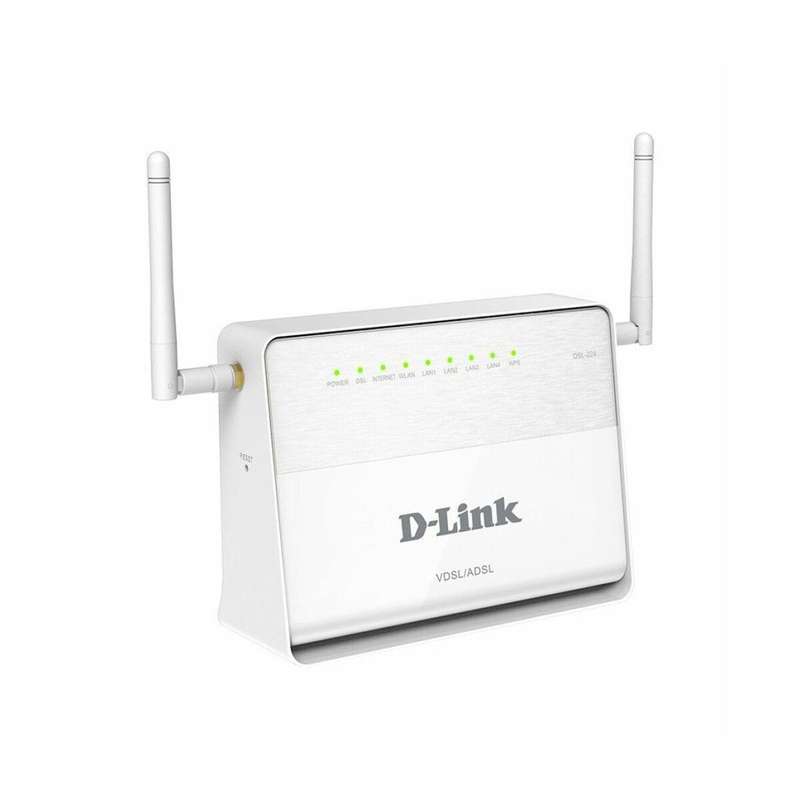

VDSL2/ADSL2+ Wireless N300 4-port router
The DSL-224 VDSL2/ADSL2+ Wireless N300 4-port router is everything you need for high-speed Internet access for your entire home or office. It combines both a VDSL2/ADSL2+ modem and high-end wireless router together to create a single, easy-to-use device that connects to the Internet, and shares that connection with all your devices.
? 3x 10/100 Mbsp LAN Ports
? 1x 10/100 Mbps WAN/LAN Port (LAN port 4)
? Wireless Speed up to 300 Mbps
? 5dBi Fixed Antennas
? WPA/WPA2 encryption
Complete Internet Solution
- A total solution that helps you connect, share, and enjoy your VDSL2 /ADSL2+ Internet connection using a single easy-to-set-up and manage device.
High-Speed Connectivity
- Fast Ethernet ports and high-speed 802.11n wireless give you the bandwidth for online-gaming, video conferences, and HD multimedia.
Robust Security Features
- Built-in Firewall to protect your network from internet attacks, and wireless security encryption to keep your Wirless traffic safe.
Connectivity
- Built-in VDSL2/ADSL2+/ADSL modem for connecting to your high-speed broadband.
Internet connection.
- Four Fast Ethernet LAN ports to connect wired devices for high-speed online activities.
- Fast 802.11n wireless for reliable long-range wireless connections to devices throughout your home.
Security
- NAT FIrewall to control traffic and prevent exploits and intrusions.
- Wifi Protected Setup (WPS) to quickly and securely add devices to your network.
- WPA/WPA2 encryption to secure your wireless traffic.
Easy Setup
- Web Browser-based set-up and configuration.
- Set Up Wizard.
VDSL2/ADSL2+ Modem and Router in a Single Device
- The DSL-224 combines the functionality of a high-speed VDSL2/ADSL2+ broadband modem and a wireless router in one device, eliminating the need for separate modem and wireless router devices.
- Connect to your VDSL2/ADSL2+ Internet Service Provider with downlink speeds of up to 100Mbps, then immediately share the Internet connection with both wireless and wired devices.
- Additionally, the DSL-224 gives you the option to connect to your broadband modem via WAN/LAN Ethernet port giving you the freedom to access the Internet via VDSL2/ADSL2+, Cable, or other connection types.
Spec :
Device Interfaces
- 802.11 b/g/n Wireless LAN Four 10/100 BASE-TX LAN ports
- WDS
- VDSL2/ADSL2+/ADSL
Standards
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11b
LEDs
Power
- WLAN
- VDSL
- Internet
- WPS
- LAN (x4)
Functionality
General
Wireless
- E.I.R.P on 2.4 GHz less then 100 mW
Security
WPA & WPA2 (Wi-Fi Protected Access)
- WEP 64-bit and 128-bit
- Wi-Fi Protected Setup (WPS) - PIN/PBC
Advanced Features
Quality of Service (QoS)
- UPnP support
- Stateful Packet Inspection (SPI)
- Network Address Translation (NAT)
- VPN passthrough/multi-session PPTP/L2TP/IPSec
Device Configuration/Management
Installation wizard (optional)
- Web-based GUI for con guratio rmware upgrade
- Code lock to prevent improper rmware upgrade
- Telnet
- Syslog monitoring
Minimum System Requirements
- Windows 8/7/Vista/XP SP3 or
- Mac OS X 10.4 or higher
- Microsoft Internet Explorer 6.0, Firefox 3.0, Chome 20.0,or Safari 5.0
- Subscription with an Internet Service Provider
Package Contents :
- 1 x DSL-224
- 1 x Filter
- 1 x RJ11 Telephone Cable
- 1 x Ethernet Cable
- 1 x Quick start guide
- 1 x power AC adapter
