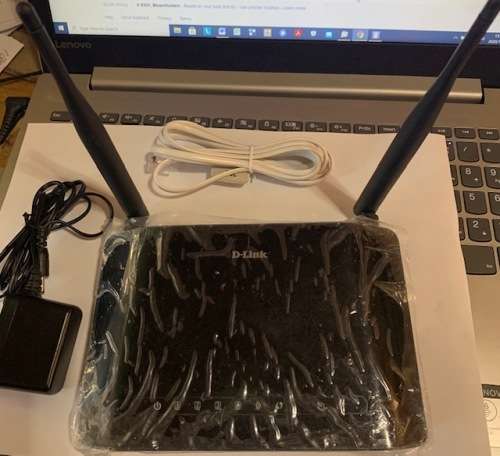

The DSL-2740U Wireless N ADSL2+ 4-Port Wi-Fi Router is a versatile, high-performance router for home and the small office. With integrated ADSL2/2+, supporting download speeds up to 24 Mbps, firewall protection, Quality of Service (QoS), 802.11n wireless LAN, and 4 Ethernet switch ports, the Wireless N ADSL2+ 4-Port Wi-Fi Router provides all the functions that a home or small office needs to establish a secure and high-speed link to the Internet.
Quick Spec:
4 x Fast Ethernet Ports
1 x WAN/LAN Port
Wireless Speed up to 300 Mbps
5dBi Fixed Antennas
WPA/WPA2 encryption
General
802.11b/g/n standards
Wireless speed: up to 54 Mbps (802.11g), 300 Mbps(802.11n)
G.dmt: 8 Mbps downstream, 832 Kbps upstream
G.lite: 1.5 Mbps downstream, 512 Kbps upstream
ADSL2: 12 Mbps downstream, 1 Mbps upstream
ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)
Frequency range: 2.4 GHz to 2.4835 GHz, EIPR: 18.7dBm
Antennas: Dual 2x2 built-in MIMO antennas
ADSL2+: 24 Mbps downstream, 1 Mbps upstream
VC and LLC based multiplexing
PPP over Ethernet (PPPoE)
PPP over ATM (RFC 2364)
ITU-T I.610 OAM F4/F5
ATM Adaptation Layer Type 5 (AAL5)
ATM QoS (Traffic Shaping)
Bridged or routed Ethernet encapsulation
Device Interfaces
RJ-11 ADSL port
4 RJ-45 10/100BASE-TX Ethernet ports with auto MDI/MDIX
Factory reset button
Built-in 802.11n wireless LAN
WPS button
Wireless on/off switch (optional)
Power on/off switch
ADSL Standards
Multi-mode
ANSI T1.413 Issue 2
ITU G.992.1 (G.dmt) Annex A
ITU G.992.2 (G.lite) Annex A
TU G.994.1 (G.hs)
ADSL2 Standards
ITU G.992.3 (G.dmt.bis)
Annex A/L/M, ITU G.992.4 (G.lite.bis) Annex A
What's in the box
1 x DSL-2740U Wireless ADSL Router
2 x Antennas
1 x Power Adapter
1 x straight-through Ethernet cable.
