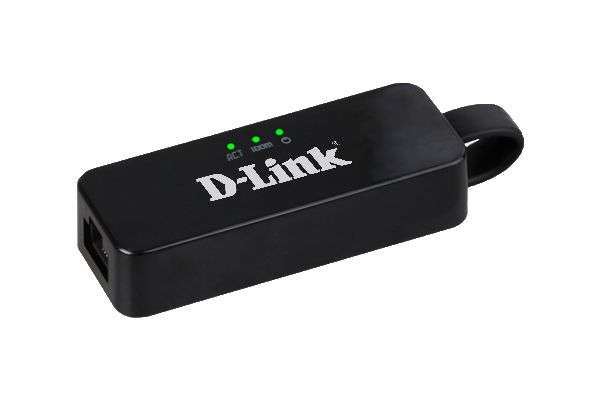

The DUB-E100 network adapter provides a Fast Ethernet connection for desktop and laptop computers. Simply plug the adapter into your computer's USB port, then connect a switch or router to it via an Ethernet cable.
Fast Ethernet Connection
The DUB-E100 USB 2.0 10/100 Fast Ethernet adapter connects to any available USB port on your computer/laptop to give you access to an Ethernet network. This adapter makes network connection available even for laptops that do not have an RJ-45 port. The DUB-E100 eliminates the need to open the PC case to install a network adapter, and also leaves the expansion slot free for connecting other devices.
Easy to install and use
The DUB-E100 network adapter plugs into your computer's USB port and is ready to use immediately after installation. There is no need to change your computer settings, just install the drivers for the device.
Power Saving Function
The DUB-E100 adapter supports a power saving function that reduces power consumption, which is especially useful for laptop owners. This function helps extend the battery life of the laptop, allowing it to be used for a long period of time. Power is supplied directly via the USB bus, eliminating the need for an external power adapter.
Characteristics
Hardware |
Interfaces | Ethernet port with RJ-45 connector (10/100 Mbps) USB Type-A connector |
Indicators | Power Act 100M |
Functional |
Standards and Features | USB specification version 2.0 USB specification version 1.1 USB specification version 1.0 OHCI (Open Host Controller Interface) EHCI (Enhanced Host Controller Interface) IEEE 802.3 Ethernet IEEE 802.3u 100Base-T compliant IEEE 802.3az Energy Efficient Ethernet Automatic MDI/MDIX detection Supports half/full duplex mode for 10/100 Mbps speed IEEE 802.3x flow control in full duplex mode Back pressure method in half-duplex mode Jumbo frame Wake-on-LAN support |
Power management | Power saving function reduces power consumption during periods of no traffic or low traffic volume |
System requirements |
Minimum system requirements | Operating system: Microsoft Windows 7/8.x/10, Mac OS up to version 10.15, Linux |
Physical parameters |
Dimensions (L x W x H) | 72 x 27 x 16.5 mm |
Weight | 20 g |
terms of Use |
Nutrition | From USB bus |
Energy consumption | 165 mA, 5 VDC |
Temperature | Operating: 0 to 40°C Storage: from -20 to 70°C |
Humidity | During operation: from 10% to 90% (non-condensing) Storage: 5% to 90% (non-condensing) |
Delivery set |
Network adapter DUB-E100 |
Other |
Certificates | CE |
