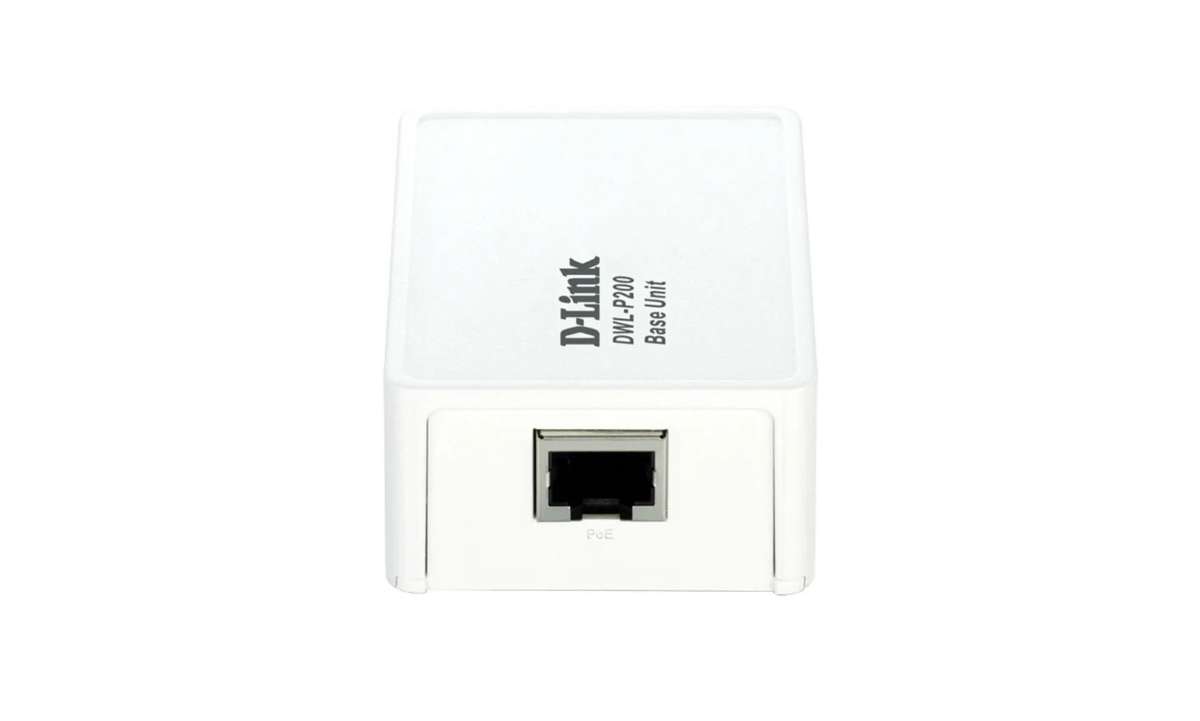

D-Link DWL-P200 Power Over Ethernet Adapter Kit –

The D-Link DWL-P200 PoE Adapter Kit enables both data and power to be transmitted over a single Ethernet cable, simplifying installations of surveillance cameras, wireless access points, and other network devices in hard-to-reach areas. With selectable 5VDC or 12VDC output, it offers flexibility for various powered devices while eliminating the need for separate power cabling.

Key Features & Benefits
Supplies both power and data over a single Ethernet cable for easy installation
Selectable 5VDC or 12VDC output via DIP switch for device compatibility
Ideal for wireless LAN devices, network cameras, and remote installations
Includes base and terminal units for complete PoE setup
Compact design with reliable FCC and CE safety certifications

Ideal Uses
Powering wireless access points and bridges in ceilings or rooftops
Supplying PoE to surveillance cameras in remote locations
Extending network devices where power outlets are unavailable
Simplifying cable management in offices and industrial environments

Specifications
Condition: device with no signs of previous use. Device has been extensively tested and is 100% functional.
Brand: D-Link
Model: DWL-P200
Product Type: Power Over Ethernet Adapter Kit
Included: 1 x Base Unit, 1 x Terminal Unit
Input Voltage: 48VDC, 400mA
Output Voltage: 5VDC or 12VDC (DIP switch selectable)
Data Rate: 10/100Mbps
Connector Type: RJ-45 (TIA/EIA 568 Cat 5)
Power Pin Assignment: Data Pins 1, 2, 3, 6 / Power Pins 4, 5, 7, 8
Dimensions (Base & Terminal): 81 x 52 x 28 mm each
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 80% RH
Storage Humidity: 5% to 90% RH
Certifications: FCC Part 15 Class B, CE Class B, CSA International
Warranty: 6 Month Carry-in Warranty
What's in the Box: Base Unit, Terminal Unit
