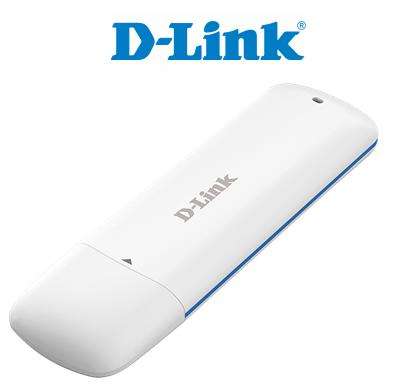

D-Link DWM-157 HSPA Plus 21Mbps Dual Band USB Adapter (DWM-157/ME3GA)

 Product Features:

-The HSPA USB Adapter allows users with a computer to connect to worldwide mobile broadband networks.
-While connected, users can transfer data, stream media, and send SMS messages.
-A built-in MicroSD card reader slot can be used for optional removable storage.

RELIABLE MOBILE CONNECTIVITY
-Whether at home, in the office, or traveling abroad, the DWM-157 provides reliable broadband connectivity for notebook users on the go.
-Do more with your mobile connection than ever before with maximum download speeds of up to 21.6 Mbps and upload speeds of up to 5.76 Mbps.

OPTIMAL PERFORMANCE WITH HSPA TECHNOLOGY
-This adapter supports the latest HSPA technology, which boosts the maximum uplink data rate to 5.76 Mbps and helps to reduce latency.
-HSPA is also backwards compatible with 3.75G, 3.5G, 3G, and 2.5G technologies.

EFFORTLESS INSTALLATION
-Device drivers and software are built into the DWM-157, which means that installing it is a quick and simple affair.
-The included software provides access to telephone numbers and messages stored on the SIM/USIM card.

PRACTICAL PORTABILITY
-The USB adapter also doubles as a MicroSD card reader for optional removable storage, allowing you to take both your network and your files with you wherever you go.
-Better yet, the device is small enough to fit in your pocket ¿ no batteries, cables, or additional hardware required.

Specifications:

Connectivity
-HSUPA/HSDPA/UMTS and GSM/GPRS/EDGE networks
-Maximum download speeds of up to 21.6 Mbps and upload speeds of up to 5.76 Mbps1
-SIM/USIM card slot
-Micro SD card reader for additional storage function

Support
-MicroSD card reader for external storage2
-SMS Manager PC, Phonebook applications
-Automatic software/driver installation

Device interface
-USB 2.0 port
-USIM slot: Standard 6-Pin SIM card interface

Data rates1
-Download: 21.6 Mbps
-Upload: 5.76 Mbps

Antennas
-Internal antenna

GSM band (GSM/GPRS/EDGE)
-850/900/1800/1900 MHz
-Power Class 4 (850/900 MHz)
-Power Class 1 (1800/1900 MHz)

UMTS/HSUPA band3
-850/2100 MHz or 850/1900 MHz or 900/2100 MHz
-Power Class 3 (+24 dBm)

MicroSD card reader
-Supports standard microSD cards up to 32 GB2

SMS
-Circuit-switched (GSM)

SMS manager
-Read/write/reply/forward/delete text messages
-Manage save location for text messages
-Save sender¿s number to the phone book
-Access to inbox, outbox, and draftbox

Phonebook
-Create/edit contacts
-Create/edit groups
-Send/save text messages
-Export contacts to PC as vCard type or CSV file

Minimum system requirement
-Microsoft Windows 8.1/8/7/Vista/XP SP2
-Apple Mac OS 10.6 or later

LED indicator
-Red LED: error, no SIM
-Green LED (solid): registering on network
-Green LED (blinking): connecting to network

Dimensions
-89.2 x 25.9 x 10.7 mm (3.5 x 1.0 x 0.4 inches)

Temperature
-Operating: -10 to 45 °C (14 to 113 °F)

Humidity
-Operating: 10% to 90% non-condensing
-Storage: 5% to 95% non-condensing
