D-Link Nuclias Connect AC1200 Wave 2 Access Points

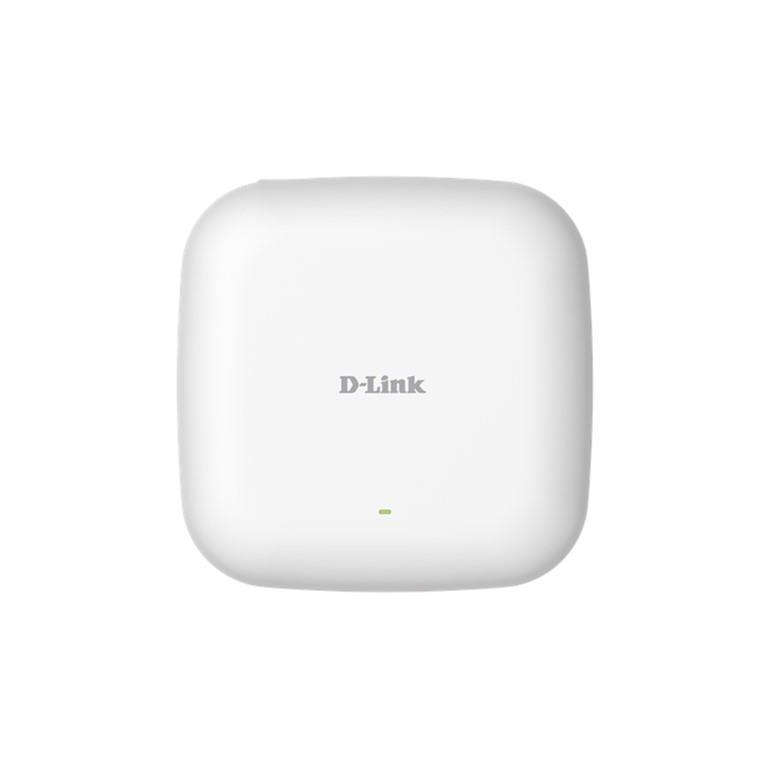

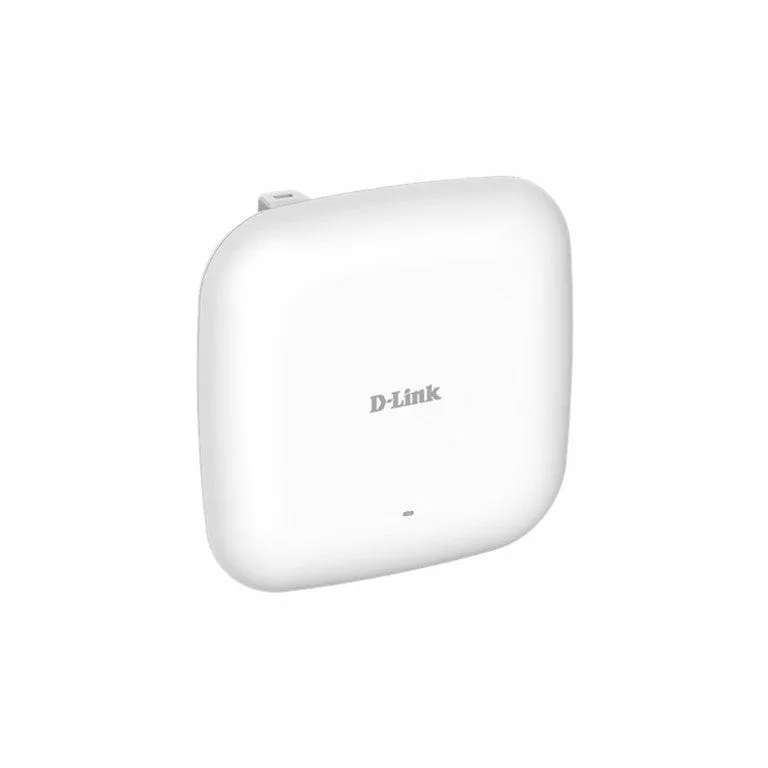

D-Link Nuclias Connect AC1200 Wave 2 Access Points DAP-2662

The DAP-2662 Nuclias Connect AC1200 Wave 2 Access Point is designed to support small-to-medium businesses or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilizing the cutting-edge speed of Wireless AC.

Wireless Performance

New-generation IEEE 802.11ac wireless with high-speed 1200 Mbps throughput.

Extensive Management

Powerful management, monitoring, and troubleshooting functionality with Nuclias Connect.

Versatile Installation

Powered by IEEE 802.3af Power over Ethernet for remote installation.

Trusted Security

• 128-bit Personal/Enterprise encryption

• 64/128 bit WEP

• MAC-based access filtering and WLAN partitioning

• Captive Portal with industry-standard authentication

• VLAN support for network segmentation

Powerful Remote Management

• Flexible access through web (HTTP), SSL, SSH, and Telnet

• Multiple operation modes including Access Point, Wireless Distribution System (WDS), WDS with Access Point, and Wireless Client

• Wireless scheduling to manage access point activity

Easy Installation

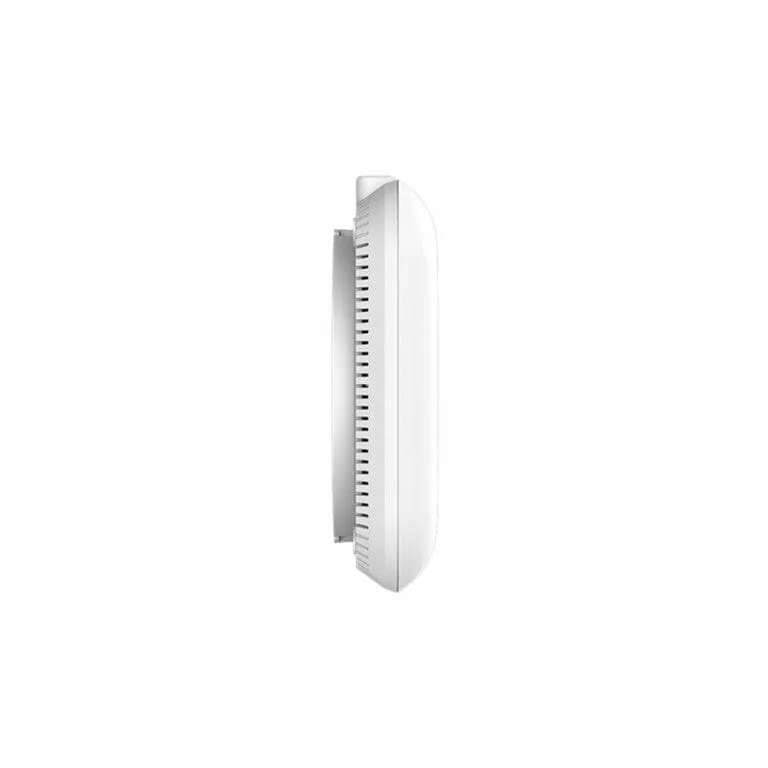

• Small form-factor for easy placement

• Support for Power of Ethernet 802.3at

Nuclias Connect features

• Powered by IEEE 802.3af Power over Ethernet for remote installation

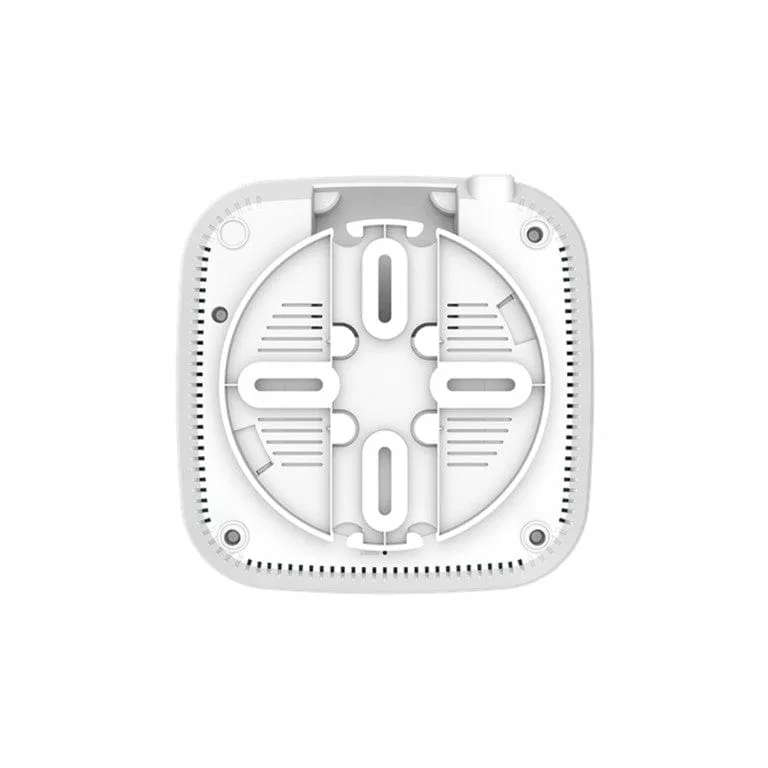

• Multiple installation options including desktop, wall and ceiling mounting

Features

• Powerful management, monitoring, and troubleshooting with Nuclias Connect

• Wireless speeds of up to 1200Mbps

• 4x internal dual-band antennas

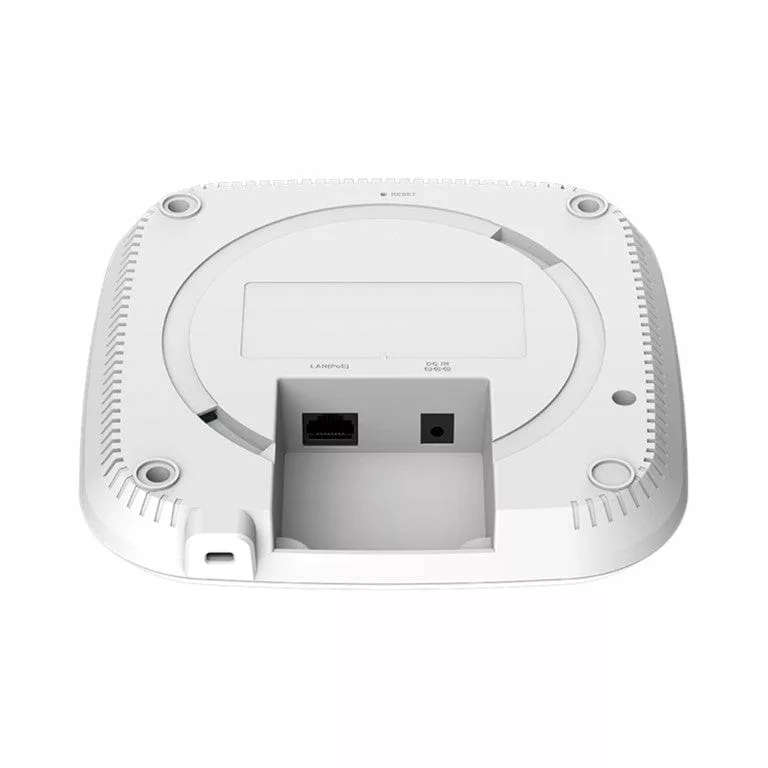

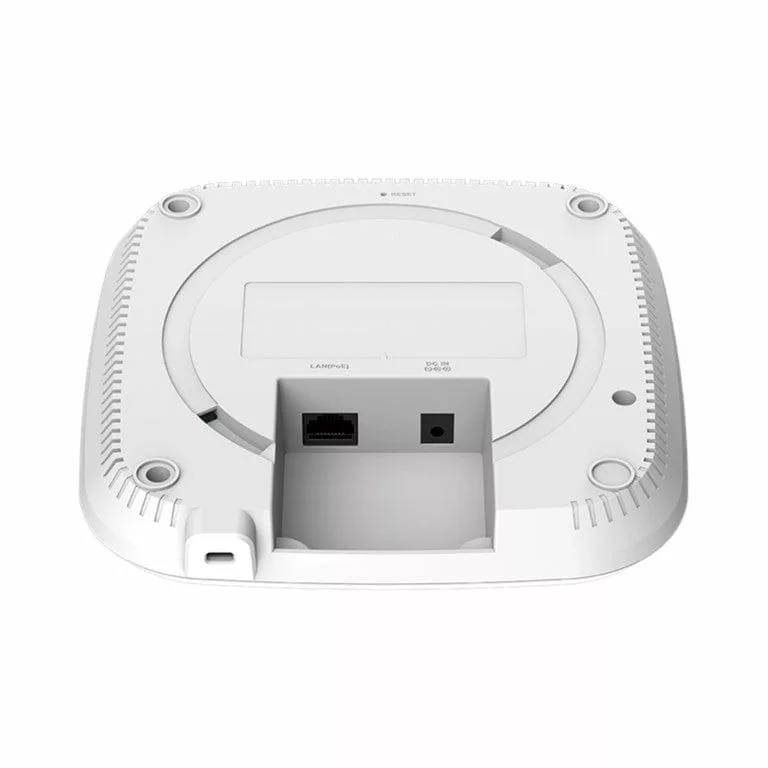

• 1x 10/100/1000 Mbps Gigabit LAN Port

• IEEE 802.3af Power over Ethernet

This Access Point is Nuclias Compatible

The DAP-2662 is compatible with Nuclias from
Hardware ver: Ax
Firmware ver: 1.00

Technical Specification

Product: D-Link AC1200

Maximum data transfer rate (2.4 GHz): Up to 300 Mbit/s

Maximum data transfer rate (5 GHz): Up to 867 Mbit/s

Ethernet LAN data rates: 10,100,1000 Mbit/s

Device Interfaces: IEEE 802.11a/b/g/n/ac wireless, 1 x Gigabit LAN (PoE supported)

Placement: Ceiling, Table, Wall

Product colour: White

Antenna type: 4 x internal dual-band antennas

• 2 x 3.8 dBi at 2.4 GHz

• 2 x 3.8 dBi at 5 GHz
