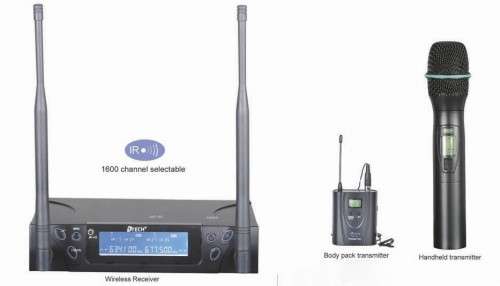

UHF-203 hand held, lavalier + headset system
Dual Channel PLL Wireless System
— Diversity
— Tone control squelch
— Working range adjustable
— LCD display
— 1600 channel selectable
— Group and channel selectable
— Smart option (Infrared SYNC)
— Adopting unidirectional condenser element, it creates superb isolation and unsurpassed gain-before-feedback effect, optimized for vocal and speaking performances.
— Convenient multi-channel selector. You can choose the best frequency from the hundreds available forthe best performance effect.
— Noise absorption design eliminates external and handing noise completely.
— Elegant steel grille provides durable protection to its own shape and element.
— Durable structure modular design is easy for assembly and detachment, especially convenient to after-sales service.
— Low battery consumption, Adopting two 1.5V AA batteries, it works a longer time than expected.
— Innovated design of the body-pack transmitter can be matched with lavalier, headset or instrument connector, providing another option besides handheld microphone; further more, it sets your hand free!
— Professional TA4F connector prevents the connector from dropping off and creating unwanted noise.
— Low battery consumption. Adopting two 1.5V AA batteries, it works a longer time than expected.
arrier Frequency Range: UHF 470-928MHz
Stability: ±0.005% (at 25â)
Ambient Temperature: 10â±50â
Normal Deviation: ±35 KHz
Max Deviation: ±80KHz
S/N Ratio: <-110dB
T.H.D: <0.5%
Squelch: Tone control and noise lock dual squelch
Frequency Response: 30Hz – 20KHz
Operating Range: 100m(approximately 300 feet under typical conditions)
Receiver
Receiving Mode: PLL Diversity (Dual Antenna)
Sensitivity: >-107dB
Image Rejection: Over 90dB
Audio Output: Balanced and Unbalanced
Power Requirement: AC 110-120V/220-240V
(50-60) External DC 18V 400mA
Dimensions (W x D x H): 240 x 130 x 42mm
Net Weight: Approx. 1.5kg
Wireless Microphone
Cartridge: Dynamic or Condenser
Antenna: Built-in
RF Output: <10mW
Spurious Emissions: <45dBc
Normal Deviation: ±35KHz
Maximum Deviation: ±80 KHz
Battery: Two 1.5V AA battery or 1.2V AA rechargeable battery
Battery Life: >8 Hours
