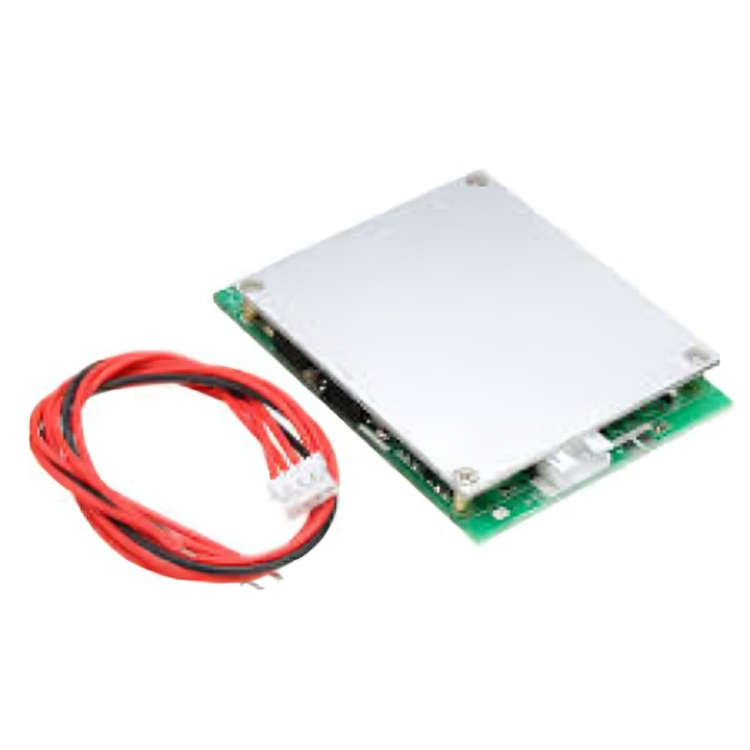

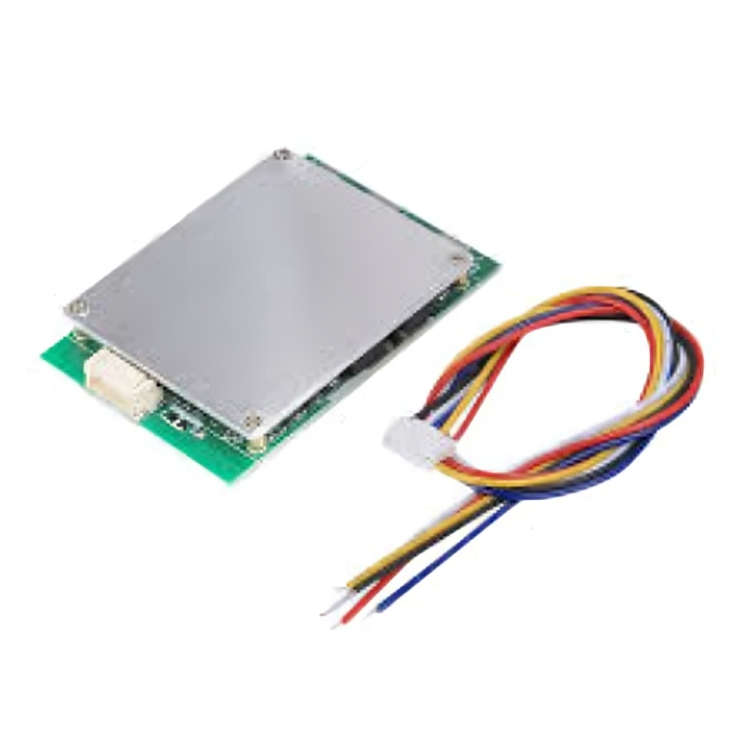

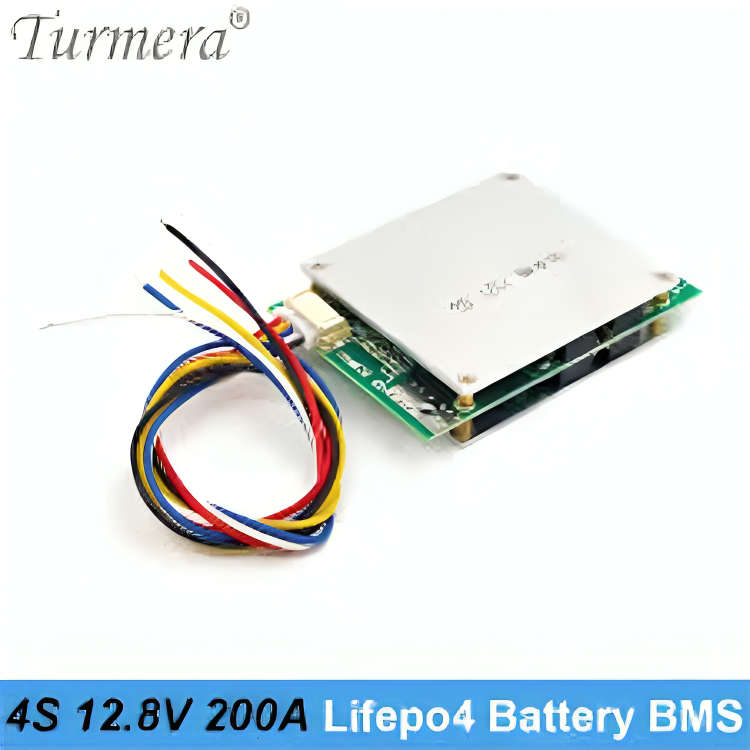

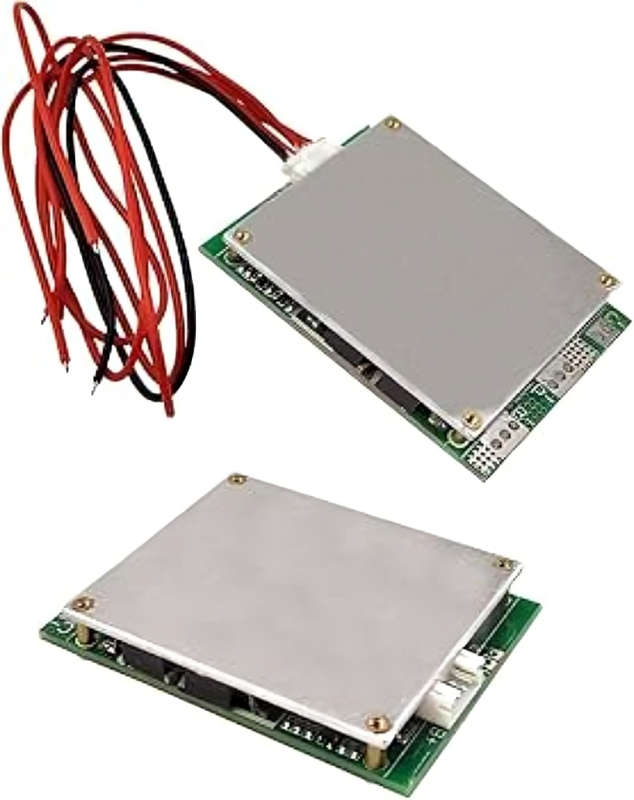

D020 - Turmera - BMS Lifepo4 4S 12.8V 200A

200A 4S 12.8V Lifepo4 Battery Protection Board with Balancing

This 4S 200A 12.8V Lifepo4 Battery Protection Board is designed to protect and manage a series of 4 Lifepo4 battery cells (such as 32650 or 32700) connected in series. It provides features like over-charge and over-discharge protection, cell balancing, and short circuit protection to ensure the safe and efficient operation of your battery pack.

Key Features:

• Nominal Voltage: 12.8V (for 4x 3.2V Lifepo4 cells)
• Continuous Discharge Current: 200A (de-rate in poor cooling conditions)
• Balancing Current: 56mA/cell
• Charging Voltage: 14.4V-16V
• Applications: 12V battery systems for solar panels, electric boats, and more

Important Notes:

• This product is only the BMS board and does not include the Lifepo4 battery cells or bracket.
• Ensure proper wiring and static precautions when working with the BMS.
• Do not modify the BMS components.
• This BMS is not for use with other battery chemistries besides Lifepo4.

This 200A BMS is a great choice for protecting your 4S Lifepo4 battery pack in various applications.
