D1 R2 WiFi ESP8266 Development Board Compatible UNO Program By IDE D1 R2 WiFi ESP8266 Development Board Compatible UNO Program By IDE D1 R2 WiFi ESP8266 Development Board Compatible UNO Program By IDE
D1 R2 WiFi ESP8266 Development Board Compatible UNO Program By IDE D1 R2 WiFi ESP8266 Development Board Compatible UNO Program By IDE D1 R2 WiFi ESP8266 Development Board Compatible UNO Program By IDE

D1 R2 WiFi ESP8266 Development Board Compatible UNO Program By IDE

20 available / new
R439.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643376712

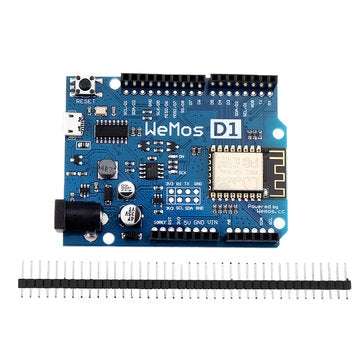

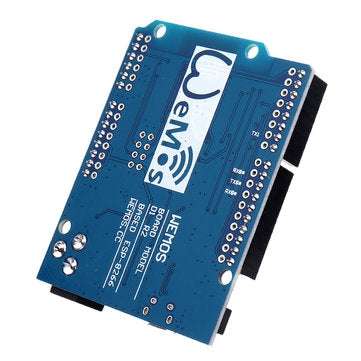

The D1 R2 is a mini wifi board based on ESP-8266EX. 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0) 1 analog input(3.3V max input) A Micro USB connection A power jack, 9-24V power input. Compatible with Compatible with nodemcu

Getting Started

NodeMcu


Technical specs:
Microcontroller ESP-8266EX
Operating Voltage 3.3V
Digital I/O Pins 11
Analog Input Pins 1
Clock Speed 80MHz/160MHz
FLash 4M bytes
Length 68.6mm
Width 53.4mm
Weight 25g
Pin Function ESP-8266 Pin
TX TXD TXD
RX RXD RXD
A0 Analog input, max 3.3V input A0
D0 IO GPIO16
D1 IO, SCL GPIO5
D2 IO, SDA GPIO4
D3 IO,Pull-up GPIO0
D4 IO,pull-up, BUILTIN_LED GPIO2
D5 IO, SCK GPIO14
D6 IO, MISO GPIO12
D7 IO, MOSI GPIO13
D8 IO,pull-down, SS GPIO15
G Gound GND
5V 5V -
3V3 3.3V 3.3V
RST Reset RST

*All IO have interrupt/pwm/I2C/one-wire supported(except D0)

Programming:

The D1 R2 has a micro USB for auto programming. Also you can programming it using OTA Warnings: All IO is work at 3.3V.
Package included:

1 x D1 R2 WiFi ESP8266 Development Board
