D1 R2 WiFi ESP8266 Development Board Compatible UNO Program By IDE

New

20 available

R439.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3903

92.56 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651225813

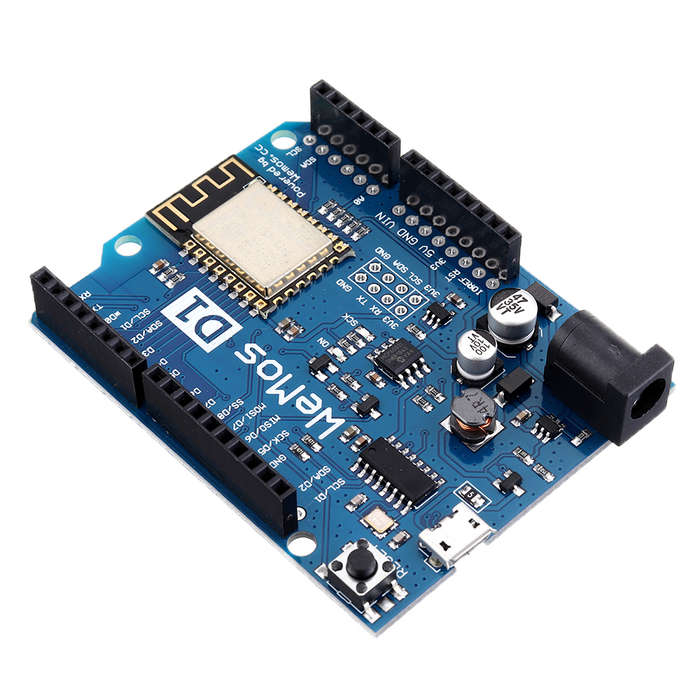

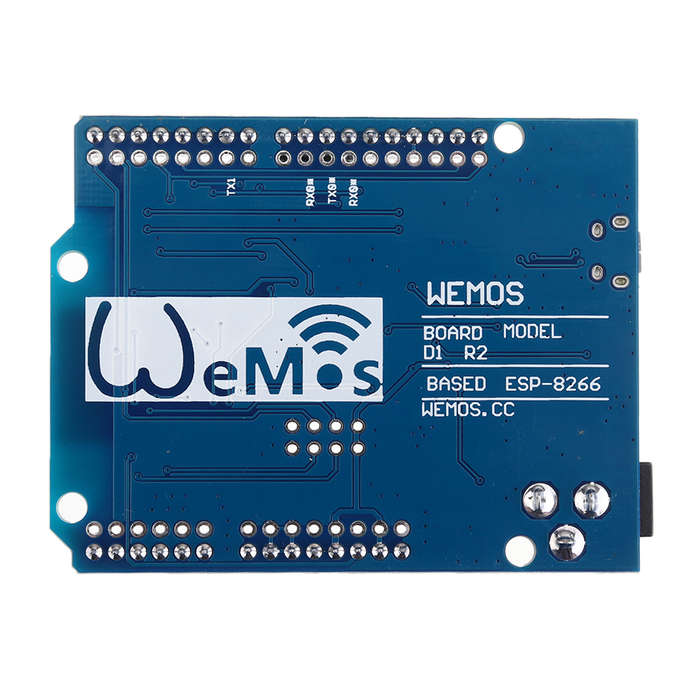

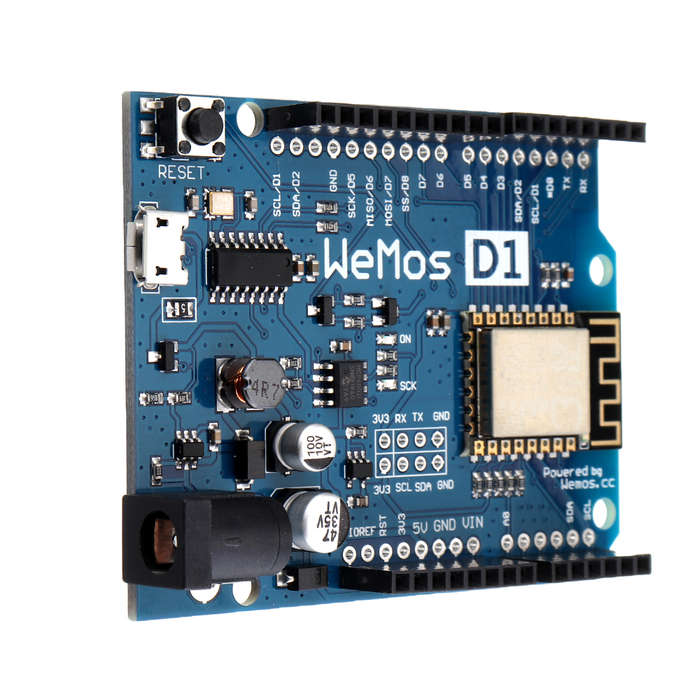

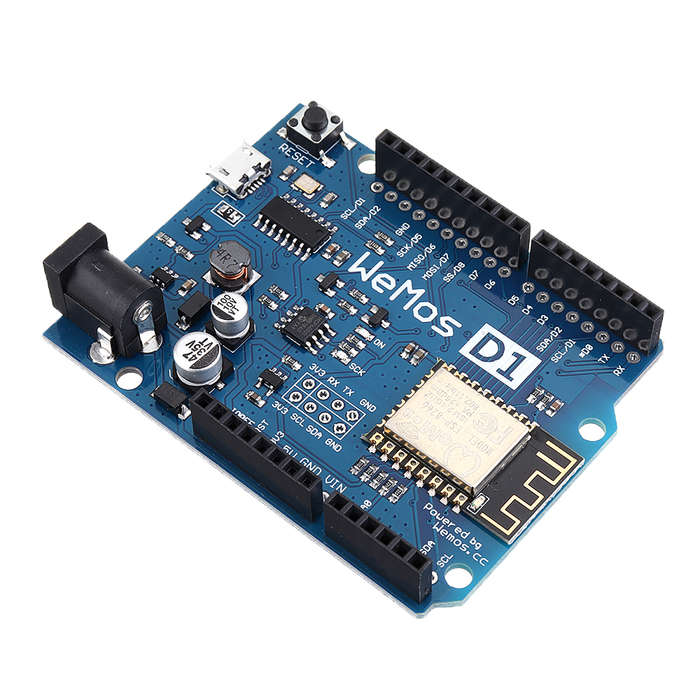

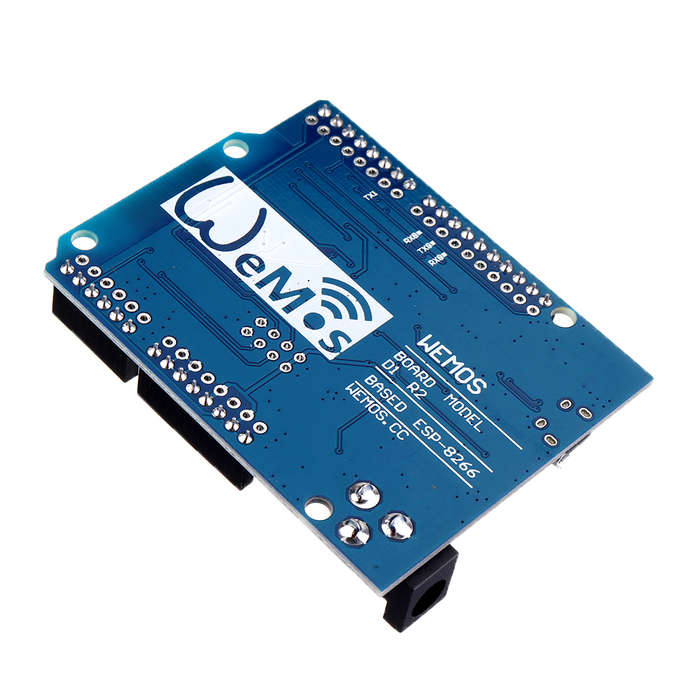

The D1 R2 is a mini wifi board based on ESP-8266EX. 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0) 1 analog input(3.3V max input) A Micro USB connection A power jack, 9-24V power input. Compatible with Compatible with nodemcu

Getting Started

NodeMcu

Technical specs:

Operating Voltage	3.3V
Microcontroller	ESP-8266EX
Digital I/O Pins	11
Analog Input Pins	1
Clock Speed	80MHz/160MHz
FLash	4M bytes

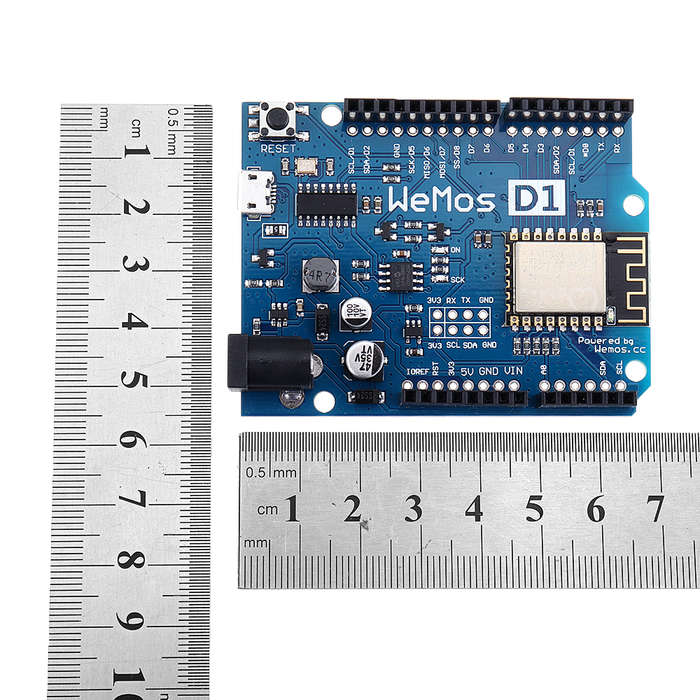

Length	68.6mm
Width	53.4mm
Weight	25g

Pin	Function	ESP-8266 Pin
TX	TXD	TXD
RX	RXD	RXD
A0	Analog input, max 3.3V input	A0
D0	IO	GPIO16
D1	IO, SCL	GPIO5
D2	IO, SDA	GPIO4
D3	IO,Pull-up	GPIO0
D4	IO,pull-up, BUILTIN_LED	GPIO2
D5	IO, SCK	GPIO14
D6	IO, MISO	GPIO12
D7	IO, MOSI	GPIO13
D8	IO,pull-down, SS	GPIO15
G	Gound	GND
5V	5V	-
3V3	3.3V	3.3V
RST	Reset	RST

*All IO have interrupt/pwm/I2C/one-wire supported(except D0)

Programming:

The D1 R2 has a micro USB for auto programming. Also you can programming it using OTA Warnings: All IO is work at 3.3V.
Package included:

1 x D1 R2 WiFi ESP8266 Development Board
