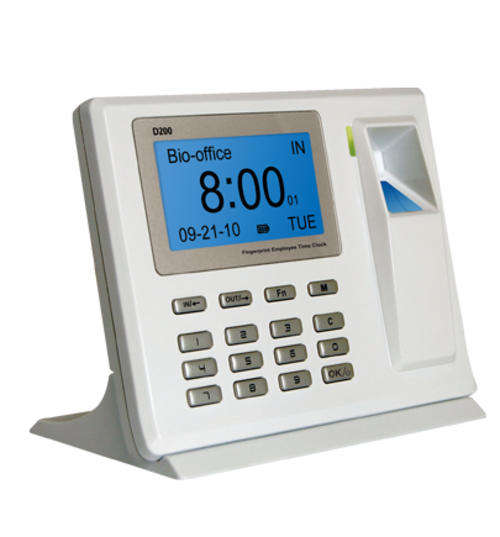

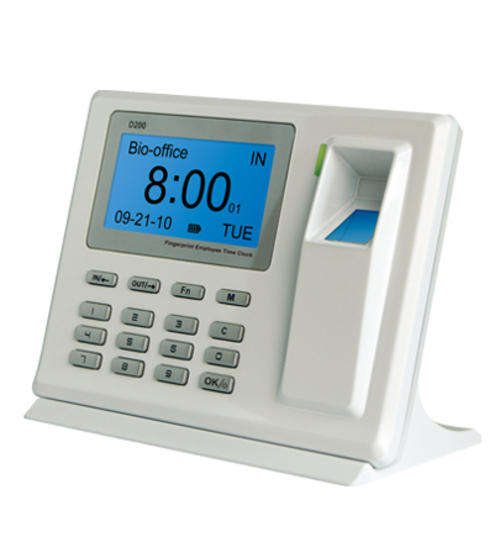

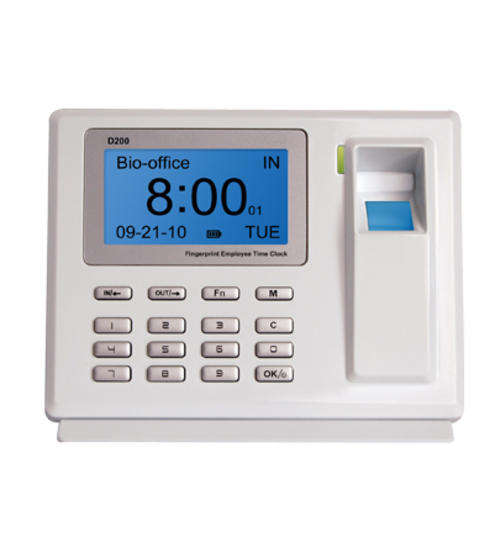

D200 Fingerprint Employee Time Clock

D200 Fingerprint Employee Time Clock

Overview:
The desktop series D200 is a basic time and attendance system, designed for small and medium companies. D200 has the most slim design among similar products. D200 doesn’t require any installation. Just put it on the table and that’s it! With a special 2-in-1 design, you can also install it on a wall. Whenever you need to get the employee in and out records, all you do is plug the USB cable into a PC or laptop and download the data into Bio-office simplified time & attendance software for reports. Even no need for any drivers - just like a USB pen drive! With inbuilt rechargeable battery, the D200 is ideal for portable or backup use or in the event there is no AC power available. Everything is simple.

Feature:
● Unique wall mounted & desktop design, super slim
● Texas Instruments 32-bit high speed CPU of low power consumption
● USA BioNANO V10 core fingerprint algorithm of high speed and stability
● New generation fully sealed, waterproof and dustproof AFOS300 fingerprint sensor
● Realtime data transfer and WEB online tracking
● Clear voice prompts along with all operations
● USB Plug & Play connection. No drivers needed
● Inbuilt high capacity 1100mAH Lithium battery backup. Ultra-long standby time up to 6 hours
● Employee authentication methods: ID + password, ID + fingerprint, fingerprint only
● Fast fingerprint scan in less than 0.5 second
● 16 different customizable time and attendance status
● 6-digit work code feature to calculate different job cost
● Support multiple display and software language

Parameters:
Sensor: AFOS300 Optical Sensor
Sensor Wake Up Mode: Press any key
Algorithm: BioNANO V10
LCD: 128*64 Blue LCD
LED: Green, Red
Keypad: 16
Function Key: Fn X 1
Operating Voltage: DC 5V
Backup Battery: 1100mAH/6 hours
Color: Pearl White
Case Material: ABS Plastic
Processor: 32-bit ARM MCU
Communication Interface: USB Device
Fingerprint Capacity: 2000
Log Capacity: 50000
Identification Mode: FP, ID+FP, ID+PW, FP+PW
Registration Mode: Fingerprint, Password
FRR: 0.001%
FAR: 0.00001%
Working Current: 0.2A-0.3A
Sleeping Current: 0.2A
ESD Tolerance: >15000V
Scan Area: 22mm*18mm
Resolution: 500DPI
Identification Time: <0.5 Sec
Size: 157(w)*119(h)*35(d)mm
Temperature: -10~40 degrees Celsius
Humidity: 20%-80%
ID Length: 6-digit
Status: IN, Break, OUT
Self-defined Status: 16 different customizable time attendance status
Workcode: 6-digit
Voice Prompt: Voice
Realtime Transfer: Yes
Name Display: 9-digit
Password Length: 6-digit
