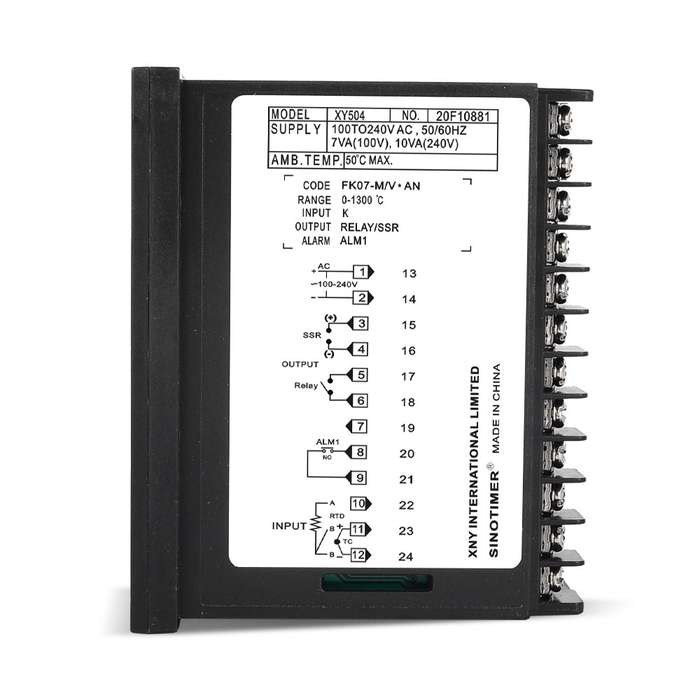

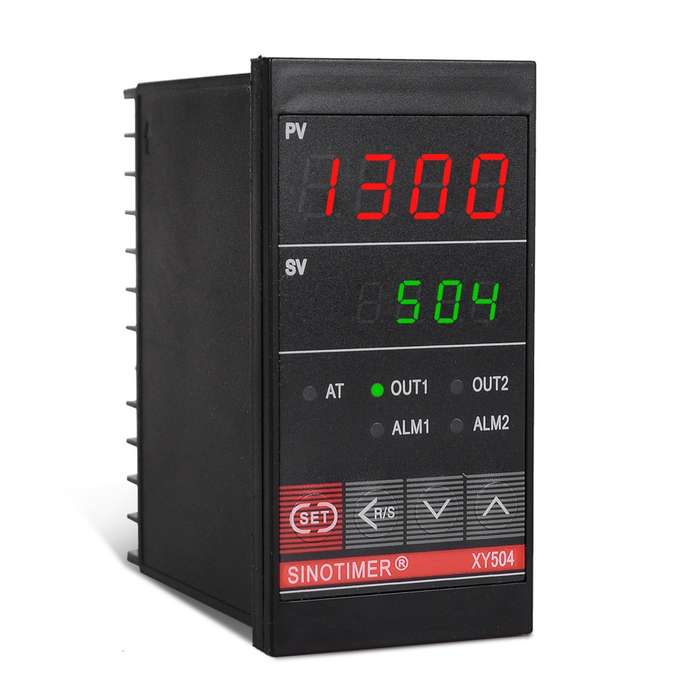

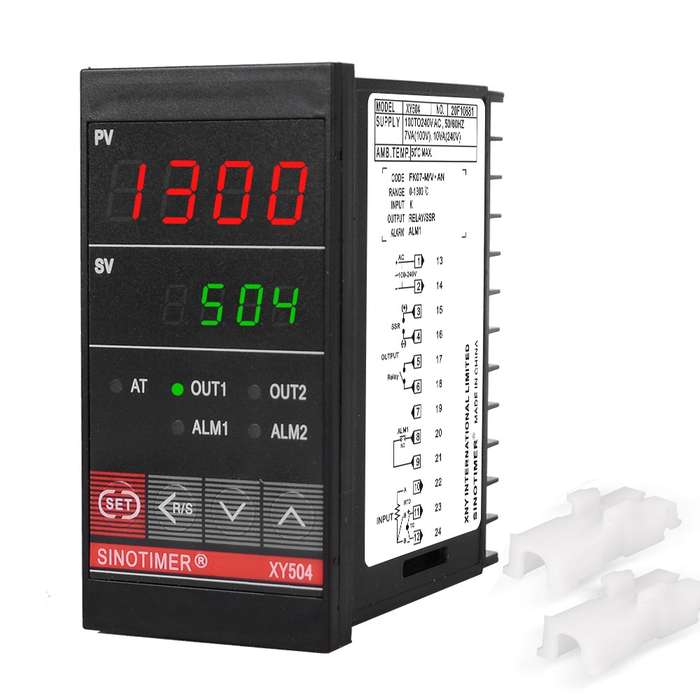

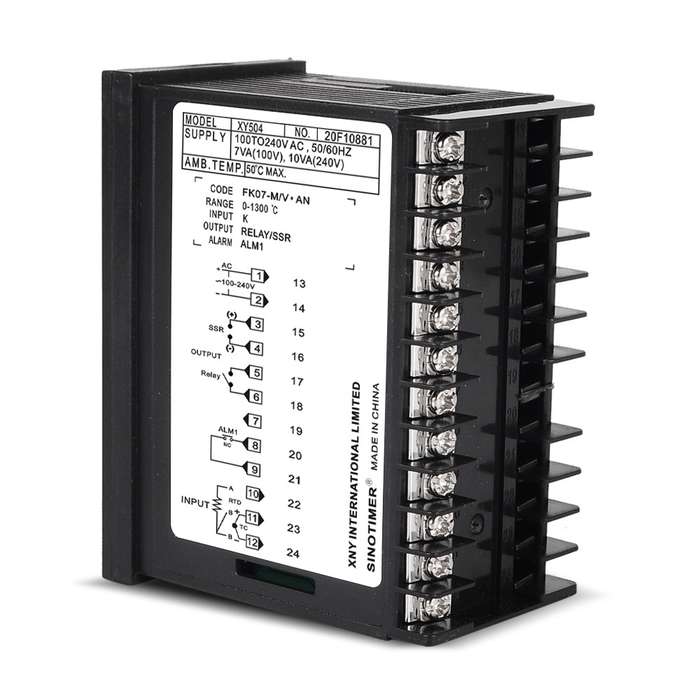

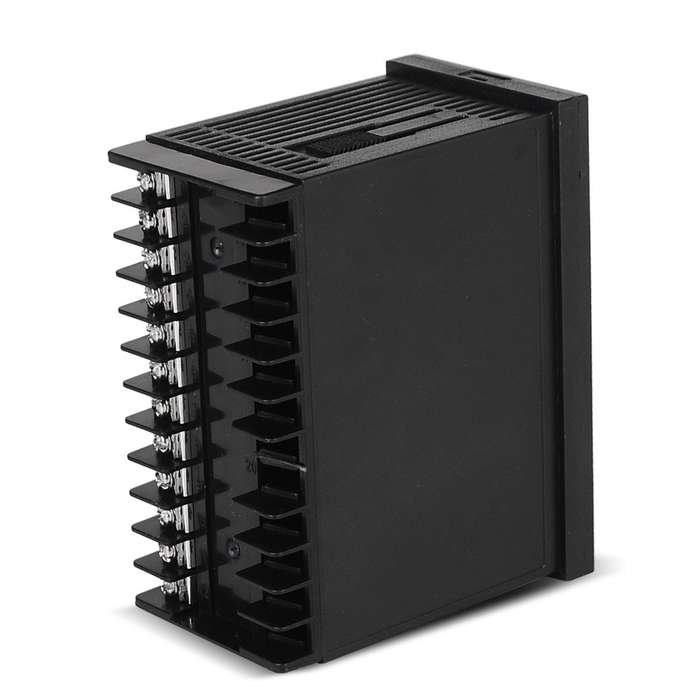

SINOTIMER XY504 Smart Temperature Control Instrument Short Case PID Heating Refrigeration Relay SSR Solid State Output

1. Measuring range: 0-1300 degrees Celsius
2. Measuring accuracy: 0.5%FS
3. Display mode: LED
4. Input: universal input, K/E/J/N/S/T/R/B/Pt100 and other signals, can be changed by yourself
5. Resolution: 0.1
6. Temperature display: degrees Fahrenheit / degrees Celsius
7. Power input: AC 100-240V 50/60Hz
8. Working environment: 0-50 degrees Celsius, 35%-85% RH
9. Output: relay/ SSR
10. Overall size: about 4.8 x 9.6 x 7.8cm

Features:

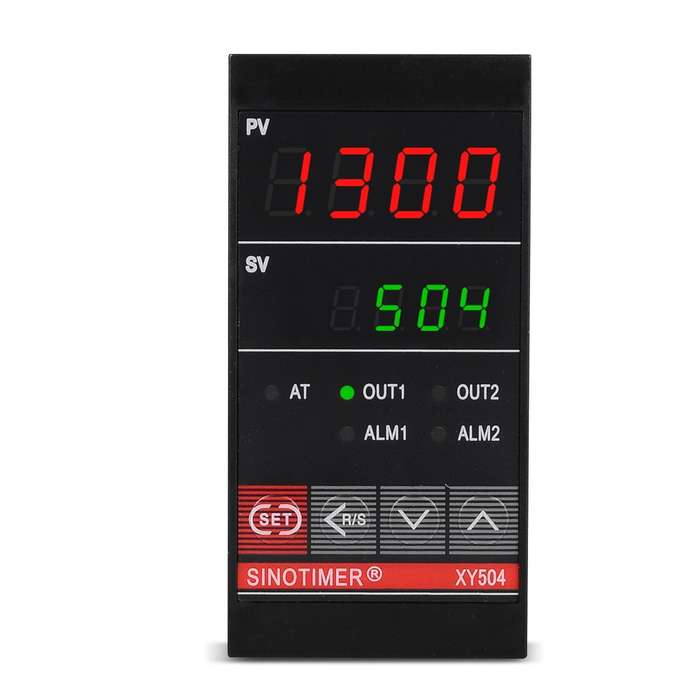

1. Dual display, set temperature and process temperature, mainly for heating and cooling control
2. Auto-set function can find the best PID setting automatically, very convenient
3. Universal inputs, support 10 different types of thermocouple and RTD inputs provided on the panel
4. Used for temperature control of oven, dryer, oven, incubator, can be widely used for display and control of temperature, pressure, flow rate, liquid level setting
5. Using anti-interference chip, liquid crystal display, simple and clear
