D900 Universal OBD2/ EOBD CAN Fault Code Reader Scanner diagnostic Tool
AS WELL AS THE USUAL OBD2 SCANNING THIS SCANNER ALSO OFFERS EOBD
EOBD is an abbreviation of European On-Board Diagnostics.
All petrol cars sold within Europe since 1 Jan 2001, and diesel cars manufactured from 2003, must have on-board diagnostic systems to monitor engine emissions.
Only the latest scan tools and code readers can be relied upon to read the diagnostic information through the EOBD socket.
DOES NOT READ AIRBAG FAULTS
D900 Code Scanner Description:
1. An essential piece of kit for all car and van owners save time and money with this hand held OBDII scan tool which enables you to troubleshoot any problems in your vehicle by reading the Diagnostic Trouble Codes (DTC) that appear when the check engine light is showing.
2. DTCs are codes that stored by the car which in board computer system in response to a vehicle issue. Codes relate to a particular problem and are made up of a 5 digit alphanumeric sequence and are used as a guide to help locate the fault in order for you to fix the vehicle.
3. Help prevent costly future engine trouble and identify problems when buying or selling a used vehicle with the MULT-OBD scan tool.
4. The D900 CanScan is brand new and is supplied with: scanner unit OBD II connector cable, disc with comprehensive user manual, OBD information and compatibility list .
D900 Code Scanner Functions:
1. Determines the malfunction indicator lamp (MIL) status and erase codes, reset MIL.
2. Retrieves the Vehicle Identification Number (VIN).
3. View live data stream.
4. View freeze frame data.
5. On screen to Read hard (memory) / pending (intermittent) and historic codes and show definitions.
6. Displays I/M readiness status.
7. Reads and clears all generic, and most manufacturer, specific DTCs.
8. Resets check engine lights.
9. Record and playback.
D900 Code Scanner Features:
1. No batteries needed for operation powered via detachable OBD2 cable.
2. Safely communicates with the on-board computer.
3. Battery compartment for off-vehicle reviewing or for when upgrading from PC.
4. Hand held and easy to use with one plug-in only.
5. Hot keys for quick read and release.
6. Wider vehicle coverage: works with CAN-equipped vehicles.
D900 Code Scanner Specifications:
1. Display: backlight 128 x 64 pixel display with contrast adjustment.
2. Easy-to-read screen and also saves up to 15 scans for later viewing.
3. Operating temperature: 0-50 C (-32 to 122F).
4. External power: 8.0 to 15.0 volts provided by vehicle battery.

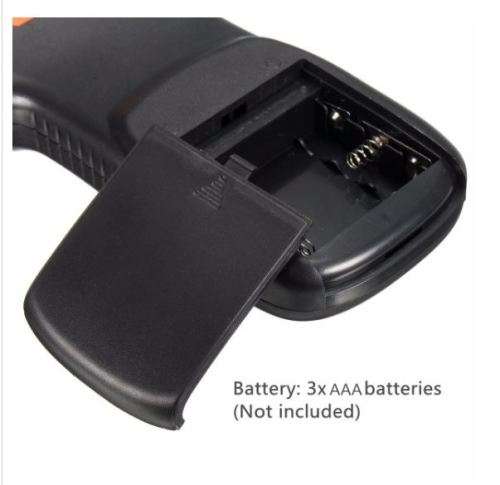

Internal Power: 3 AAA battery (not included).

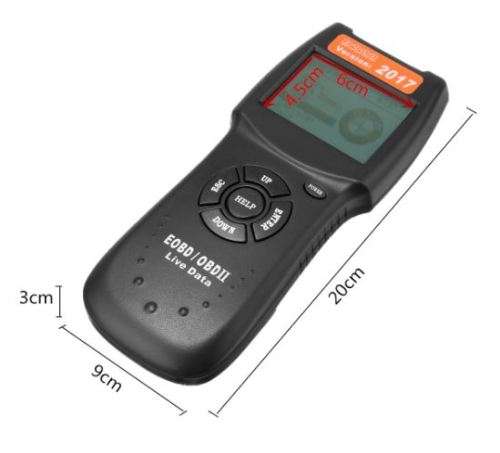

5.Unit dimensions: 9 x 20 x 3cm (W x L x D).
6.Screen dimensions: 6 x4.5cm (W x L).
7.Cable length: 109cm.
D900 Code Scanner Supports Multi Brands Cars:

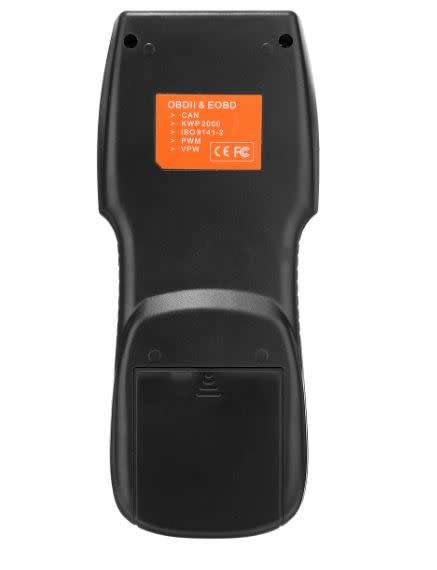

1. This is an OBDII and EOBD scanner which supports the following protocols:
CAN / KWP 2000/ISO 9141-2/J1850 VPW/J1850 PWM.
2. Supports ISO, VPW and PWM bus systems as well as can bus systems.
3. Supports vehicles:
US Models - European - Japanese - Asian - German - Korean:
Suitable for almost all cars after 1996.
All other - Asian and European 96 - 2015 (OBD-II).

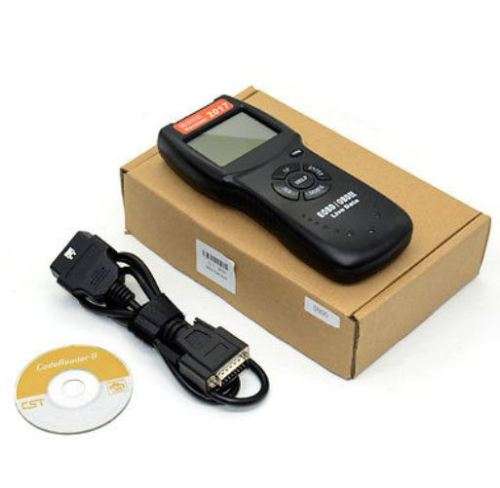

Packing List:
1* D900 Code Scanner V2017
1* OBD2 Cable
1* Manual CD Driver
