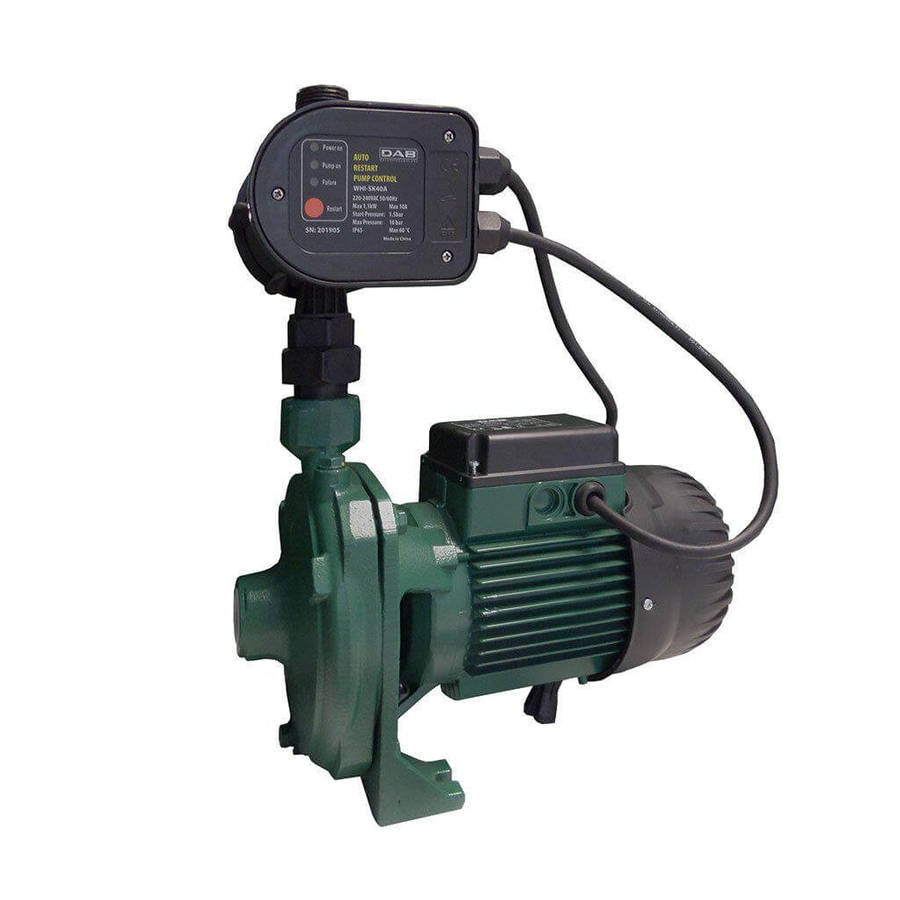

DAB K 30/70 M AUTO Water Booster Pump with Automatic Controller (0.75kW, 220V)

The DAB K 30/70 M AUTO Water Booster Pump with Automatic Controller (0.75kW, 220V) is ideal for domestic, civil and industrial pressurisation units.

• Perfect for medium to large use water systems like pressurisation units, watering systems & water purification systems
• To be installed at a horizontal or vertical position as long as the motor is above the pump
• Can pump up to 31.8m with clean, chemically neutral pumped liquid
• Manufactured for durability with a cast-iron body, die-cast aluminium motor support & technopolymer, stainless steel & carbon/ceramic components
• Equipped with an automatic controller that will restart the pump on water demand with dry run protection
• 12 month limited warranty

With over 40 years in the industry, DAB Pumps has manufactured and designed some of the finest electric driven water pumps and systems to date using the latest technologies.

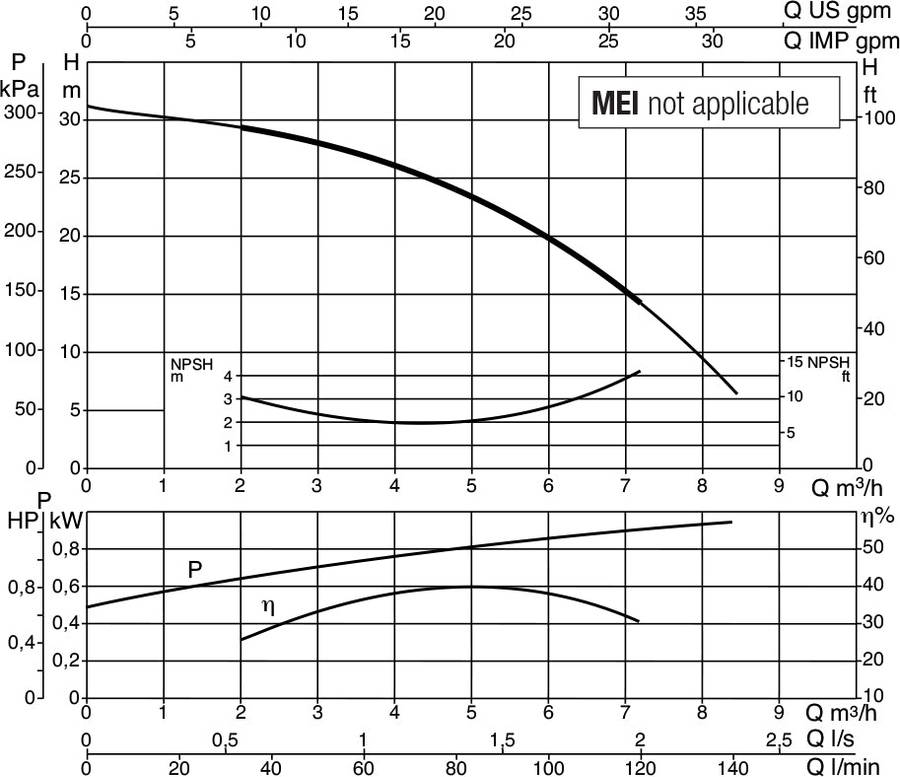

DAB K 30/70 M Single-Impeller Centrifugal Pump Performance Curve:

Product specifications:

• Operating range: from 1,8 to 96m/h, with head up to 62m
• P2 nominal: 0.75kW, 1hp
• Maximum suction depth: Up to 31.8m
• Pumped liquid: clean, without solids or abrasives, non-viscous, non-aggressive, non-crystallized & chemically neutral, with properties similar to water.
• Liquid temperature range: from -10C to +50C
• Maximum operating pressure: 1bar (1000kPa)
• Protection class: IP44
• Protection class at the terminal board: IP55
• Insulation class: F
• Dimensions [w x h x d]: 185 x 235 x 330mm
• Weight: 13.9kg
