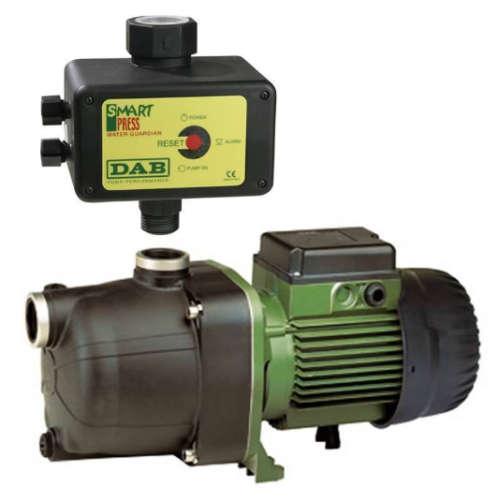

DAB Self-Priming Centrifugal Pump with Pressure Control

DAB Self-Priming Centrifugal Pump

with Pressure Control

Perfect for domestic pressure boosting and small-scale irrigation

Suitable for pumping water with low levels of sandy impurities

Excellent suction capacity, up to 8m, even with the presence of air bubbles

Rotor-mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life

DAB SMART PRESS Pressure Control Switch device automatically switched the pump ON/OFF and protects the pump against dry running.

Supply up to 3 bathrooms & a kitchen with 10 litres per minute at 3 bar pressure, or 2 rows of sprinklers with 3 nozzles at 2.5 bar pressure. For over 40 years, DAB has been a main player in the sector of the technologies for the movement and management of our most precious resource, water.

Please note, that because of this product being couriered, the pressure switch is not preinstalled on the system to eliminate connection cracks.

Installation is required.

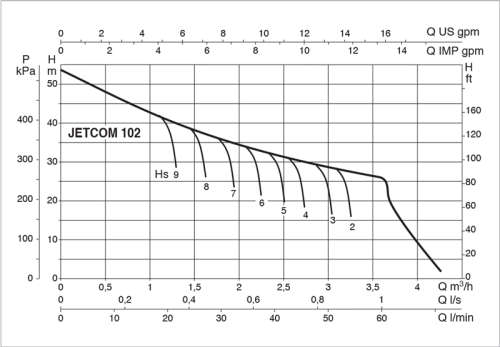

DAB JETCOM 102M Performance Curve:

Technical specs:

Operating range: Up to 60 l/min; head up to 47m

P2 nominal: 0.75kW, 1HP

Motor suction depth: Up to 8m

Pumped liquid:  clean, free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, with properties similar to water

Liquid temperature range: from 0 C to +35 C

Maximum operating pressure: 6 bar (600kPa)

Motor protection class: IP 44

Protection class at the terminal board: IP 55

Insulation class: F

Dimensions: L x 470mm B x 240mm H x 240mm

Weight: 9.5kg
