DAB WATERPACK 4 S4 -2/14 Borehole Pump Set with 70m Cable (0.75kW, 1.0hp 220V)

The DAB WATERPACK 4 S4 -2/14 Borehole Pump Set with 70m Cable (0.75kW, 1.0hp 220V) is a submersible electric pump for 4-inch boreholes and wells and larger.

• Cost-effective construction ensures low cost, high efficiency, better performance & reliability
• Abrasion-resistant construction, floating impellers ensure optimum resistance to abrasion
• Delivery port & suction support made of precision-cast stainless steel, guarantee resistance to corrosion, durability & a sturdy coupling to the motor
• The hexagonal pump shaft guarantees an effective impeller driving
• Non-return valve fitted at discharge to prevent backflow & alleviate water hammer, thus safeguarding impellers & diffusers made from ABS material

These pumps generate a wide range of flows and heads. Multiple application possibilities include but are not limited to lifting, distribution, and pressurization, filling of pressure vessels and tanks, fire-fighting systems and washing of irrigation systems. Used in civil, industrial & agricultural water systems.

For over 40 years, DAB has been a main player in the sector of the technologies for the movement and management of our most precious resource, water.

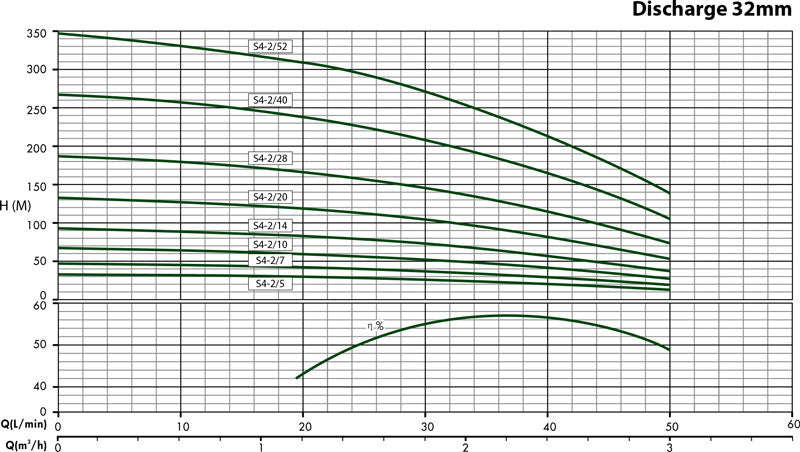

WATERPACK performance curve:

Product specifications:

• Operating range: up to 50l/min; head up to 93m
• P2 nominal: 0.75kW, 1.0hp
• Cooling flow: 8 cm/sec
• Installation: 4-inch wells or larger, tanks and cisterns, vertical position.
• Dimensions [l x w x h]: 880 x 450 x 120mm

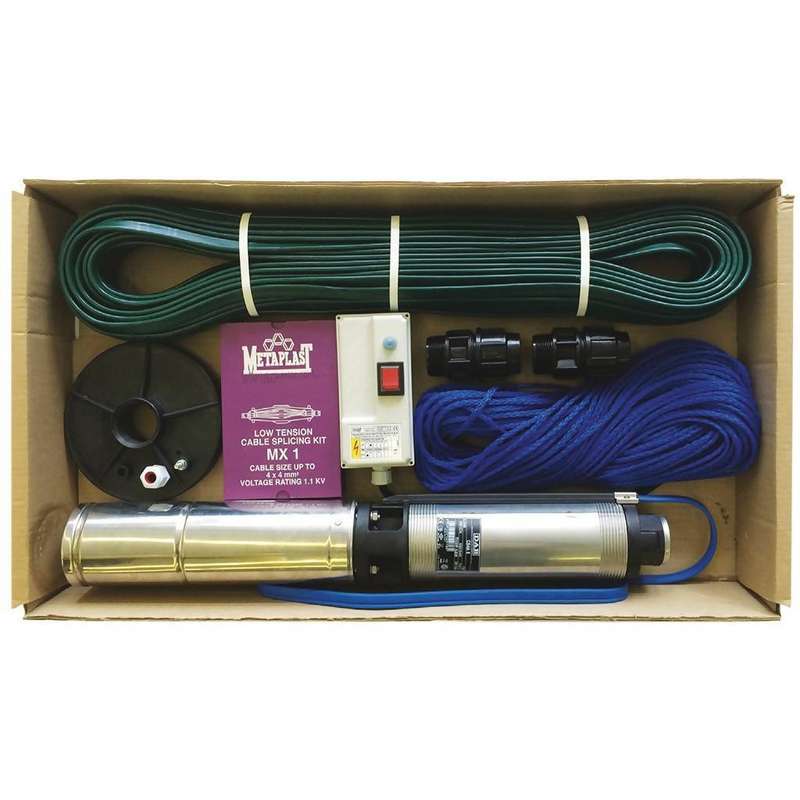

What's in the box:

• 1.5mm2 4 core submersible cable
• MX1 epoxy cable joint kit
• Control box
• 40mm base-plate with integrated cable gland
• Male adaptors
• 6mm nylon safety rope
• Wet end
• Tesla 4OL submersible motor
