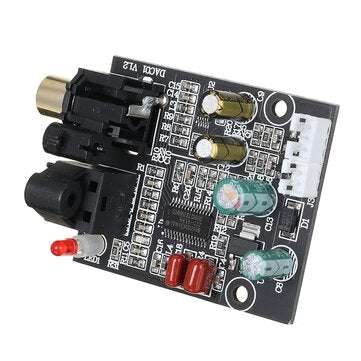

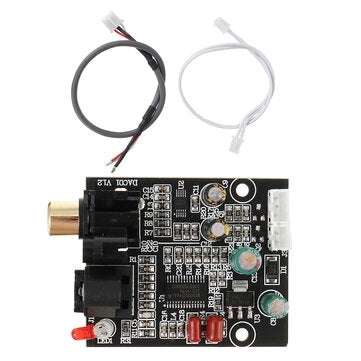

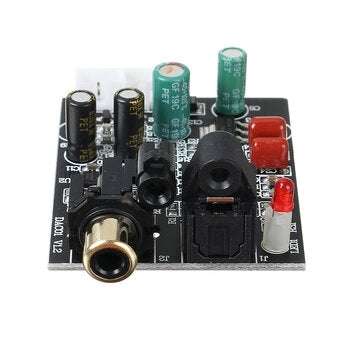

Name: DAC Digital Decoder 24 Bit 192K Optical Fiber Coaxial Decoding Board CS8416+CS4344 for Amplifier
SKU: ZHIQIAN-023618
Price: 546.00 ZAR
Availability: InStock

DAC Digital Decoder 24 Bit 192K Optical Fiber Coaxial Decoding Board CS8416+CS4344 for Amplifier

New

20 available

R546.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 11 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou5583

91.16 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Product code

ZHIQIAN-023618

Bob Shop ID

690017284

Description:
DAC digital decoder, DAC module, can be installed in the power amplifier to expand the power amplifier input interface, connect the PC or TV box digital output interface with optical fiber or coaxial. Digital signal transmission can effectively reduce interference noise and improve sound quality.
Features:

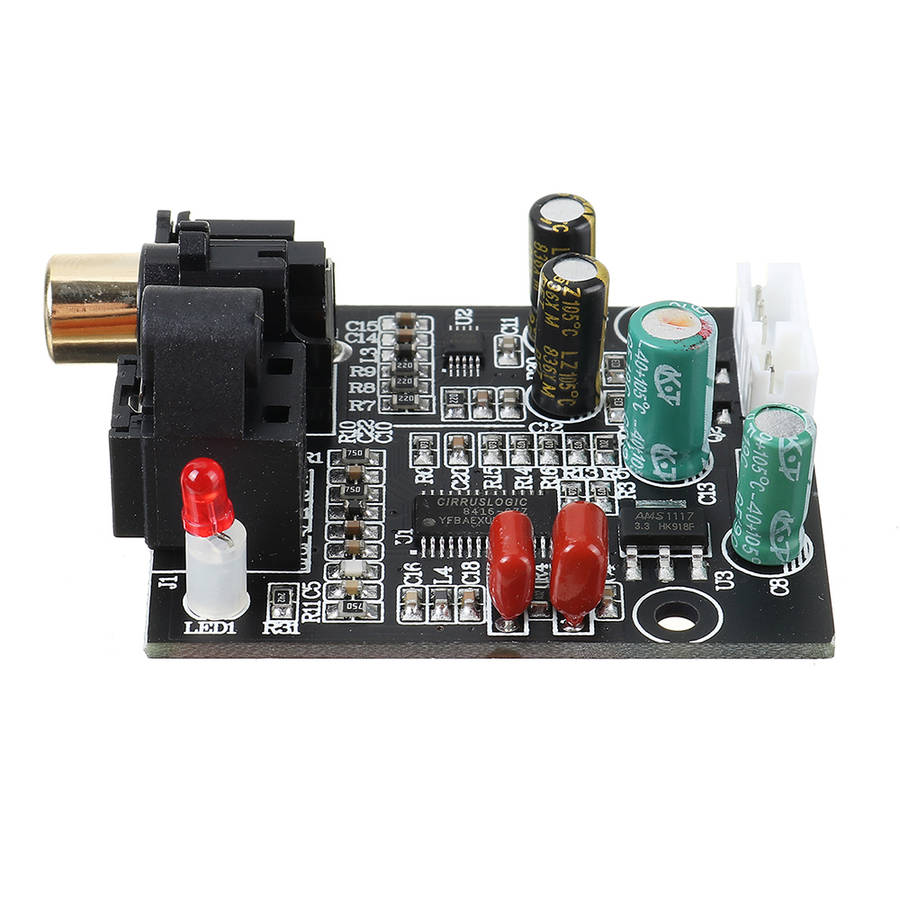

1. Support 32K-192K, added power supply anti-protection. 2. LED elbow parallel, 6 MM LED bracket, LED center point to PCB is about 6.5 MM, convenient for installation. 3. Adopt CS8416+CS4344, better sound quality than ordinary audio decoding. 4. 24-BIT D/A, support 16-24 BIT. 5. Sample rate reaches 192K, support 44.1K 48K 96K 192K. 6. PCB size: 40*48 mm 7. Net weight: 25g

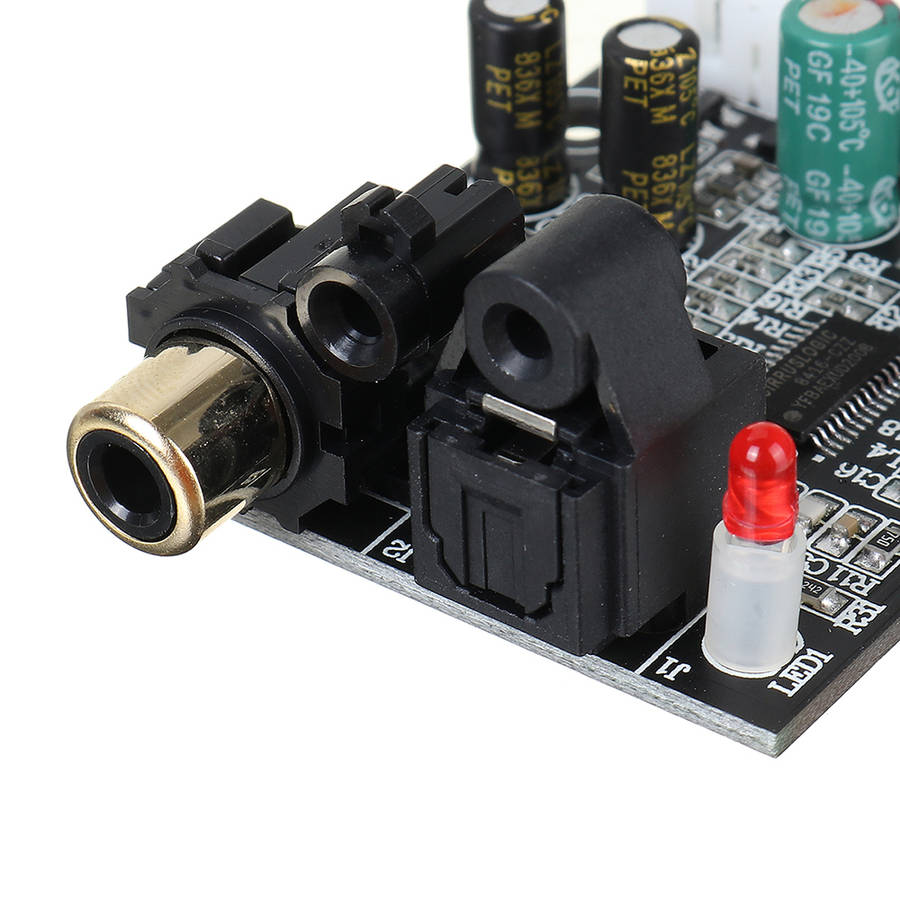

Function: -Optical fiber and coaxial digital signal input (optical fiber priority). -Output stereo audio signal 0.7VA (with mute function).
Supply Power Input: +5.1V to +12V (cannot exceed the power supply range), can not be powered by the AC adapter. To avoid the individual +5V power supply voltage is low, the DAC chip supply voltage is low, resulting in various problems, please use the power supply higher than +5V, and 6V-12V to test. It can continue to use if there is no problem for the +5V power test, without any effect.
Package Included:
1 x Decoder Board
Note: The measured current of the DAC board (192K) is not less than 0.1A, so the power of the general power supply can be satisfied.
