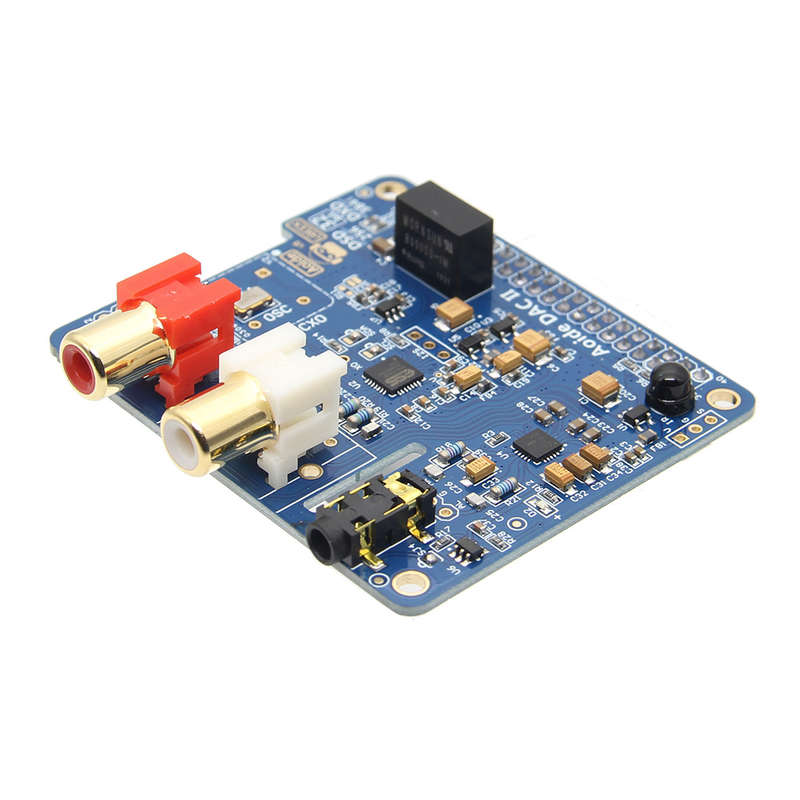

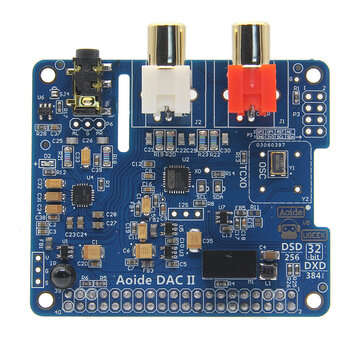

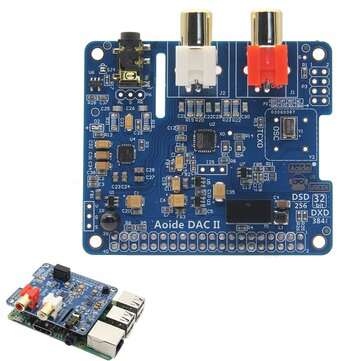

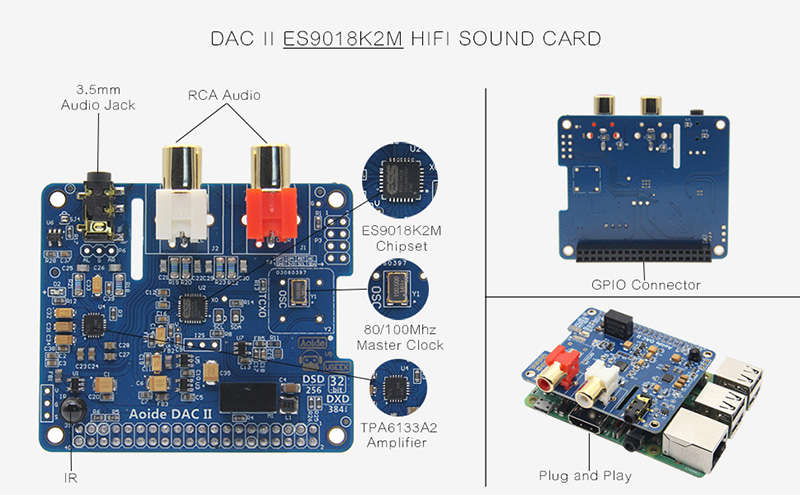

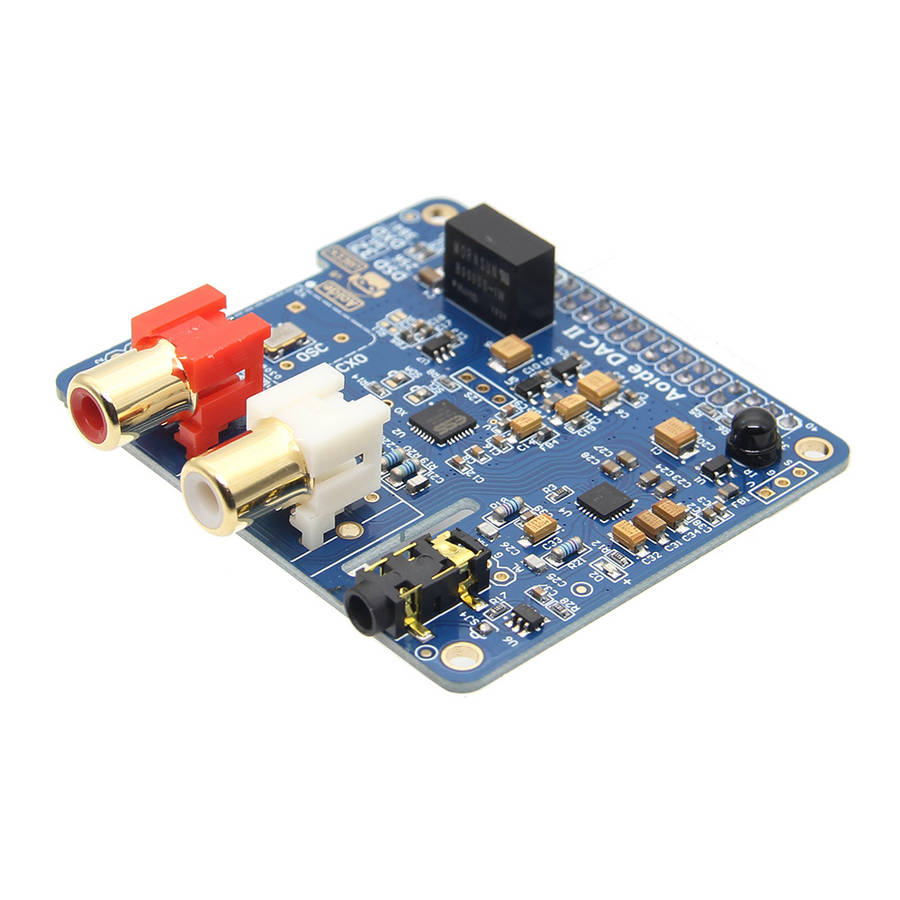

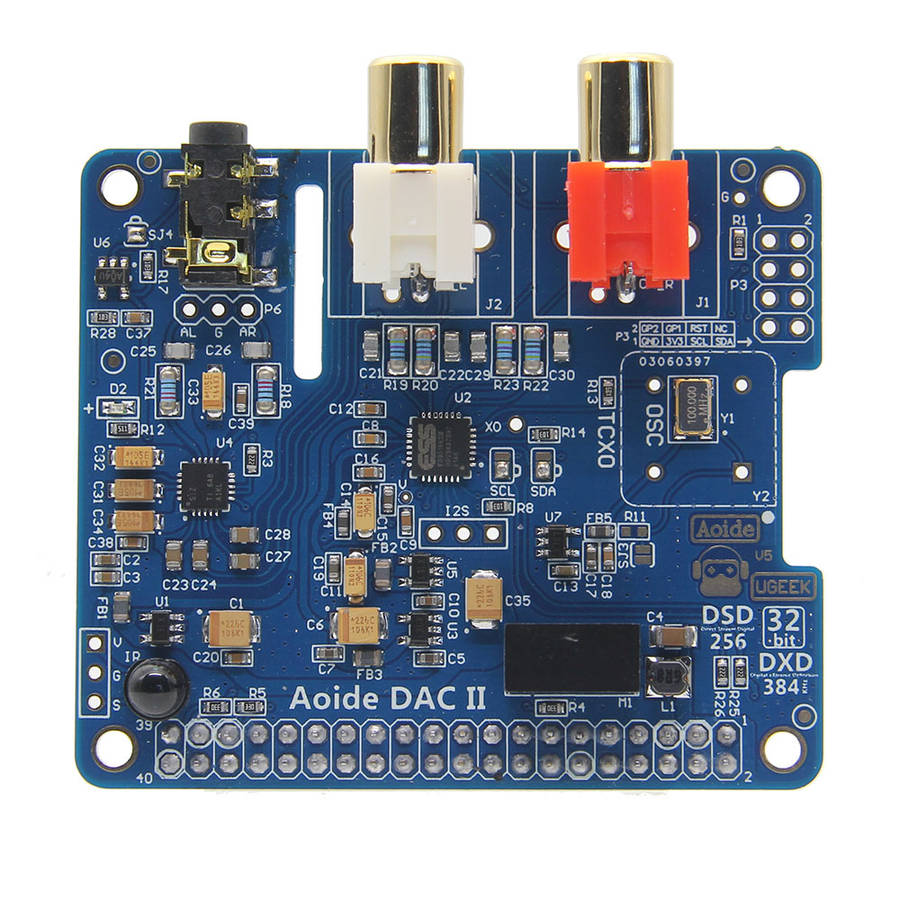

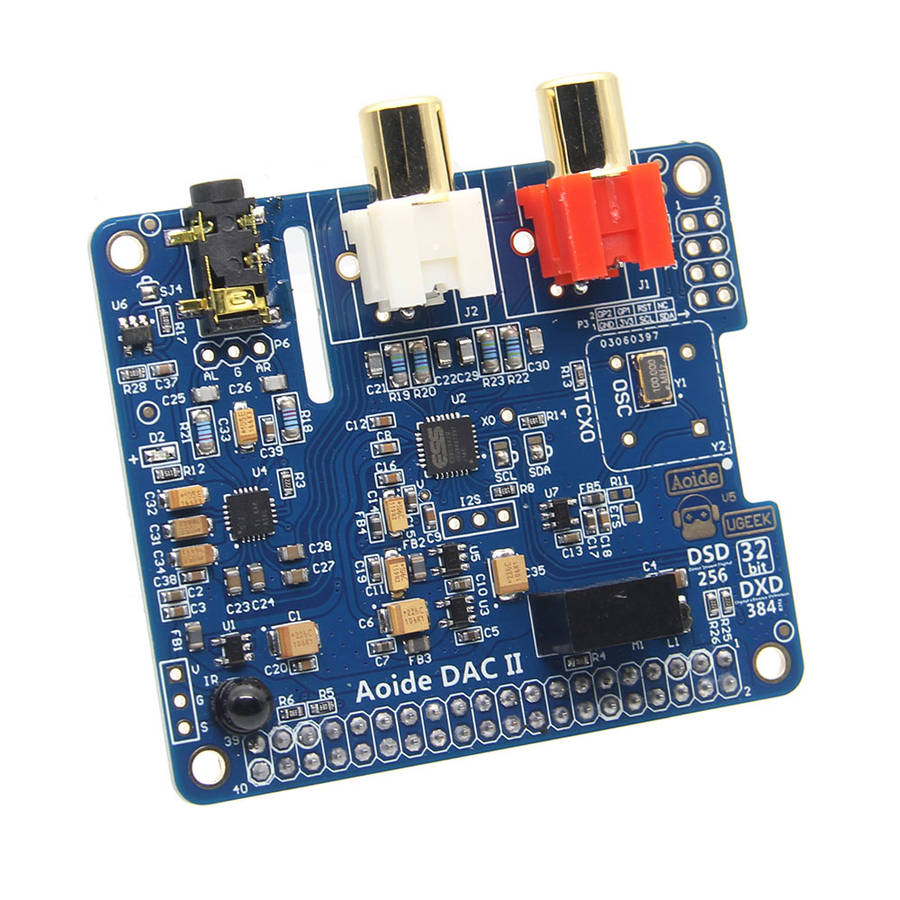

Overview: ? This is DAC II, the lateset Raspberry pi HAT size HIFI player, and it supports the lossless music formats, such as DSD/DXD,FLAC,APE,WAV... ? Experience high quality playback of PCM (Pulse Code Modulation) converted content (DSD ?256/128/64 ) with the same warm sound of the DSD (Direct Stream Digital) original.? DAC II uses the ES9018K2M chipset by Ess Technology Inc as decode chip, and sampling rate is up to 384 kHz/32-bit, that means it will take your digital music collection to another level with ?High-Resolution Audio. Excellent performance from superior quality product: With Amplifier TPA6133A2 by Texas Instruments, it supports a High-power output; With 80/100Mhz high precision master clock; With low-impedance parts including a thick copper foil main board, with MELF resistors resistor to get low distortion and low resistance for Headphone output; With A film condenser minimizes interference from vibration and electrical sources. ?
Features: ? Bit Perfect, Support up to 32Bit/384kHz High-performance ES9018K2M DAC Chip Built-in 5V Voltage Swing Headphone AMP 3.5mm Headphone Output and Line Out(RCA) Support Digital Volume Control Support DSD256/128/64; 32Bit/384KHz(PCM) Audio Formats Supported: DSD, APE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3 Support IR control ?
Specifications: ?
Line out: Frequency Response: 20Hz~20KHz +/-0.1dB S/N: -119dB +/-1dB THD+N: -120dB DNR: 127dB ?
Headphone out: Frequency Response: 20Hz~20KHz +/-0.1dB THD+N: 0.0021% (16ohm load) Output Level: 138mW(+4dB gain) SNR: 93dB PSSRR: >100dB CMRR: 69dB ?
How to use: More detail please refer to the ? ?
Note: Only support VOLUMIO and Raspbian now, and you need use the last customized volumio version. ?
How to Play the Lossless Music by customized Volumio from us? Please download the last customized volumio from Download the img file which we provided, unzip and burn it into the micro sd card. Insert the card to Raspberry Pi, connect the Raspberry pi to network. Manage the sound card by web page. ?
Setting: Set the I2S DAC to On; Select Aoide DAC II as the Output device; Select Aoide DAC II as the DAC Modle; Save and reboot. ?
How to config the DAC II base on the official Raspbian system? ? We commit the shell script on the github, you only need to execute the following shell command to finish the installation. Enter the console, and run: ? #Add the drives to the system curl -L --output ./dac_install.sh sudo chmod +x ./dac_install.sh sudo ./dac_install.sh reboot
Package Included: 1x DAC II Board
?
