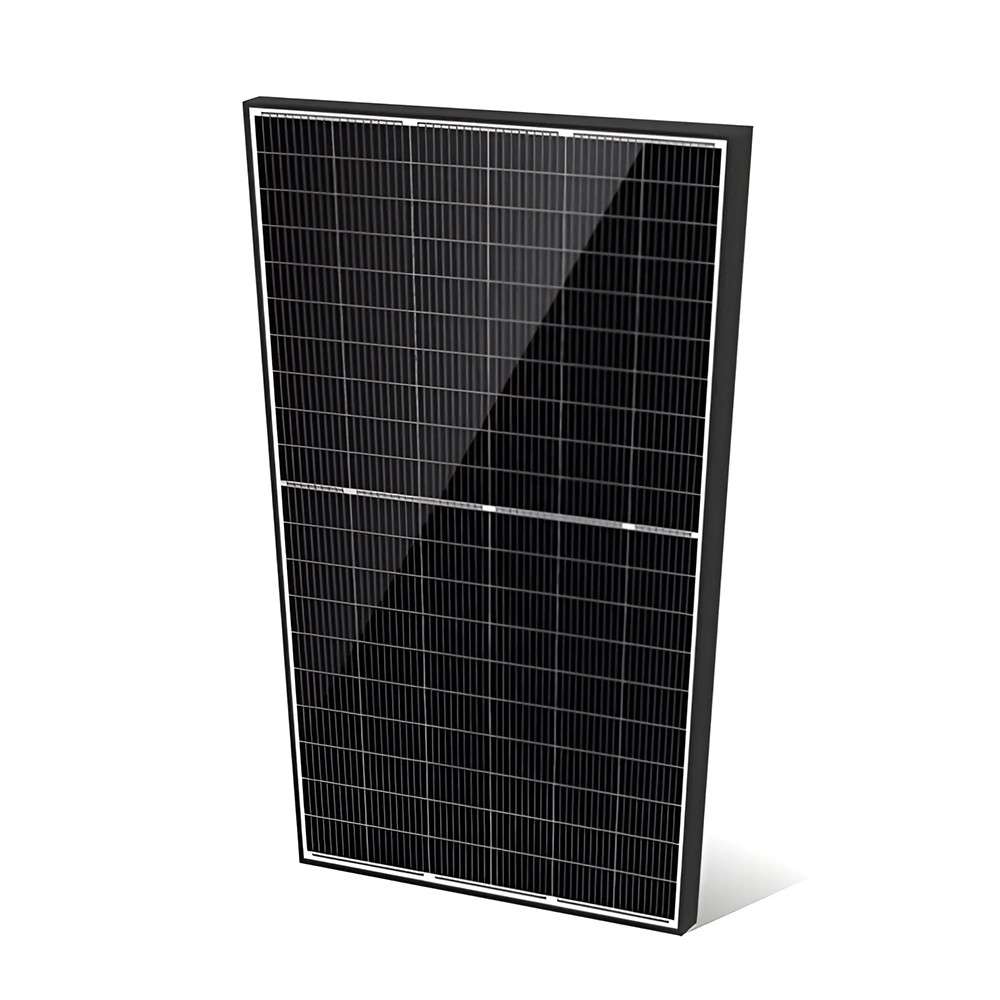

DAH Solar 580W Monocrystalline Solar Panel Frameless

Please note:

Delivery will take 1-2 days extra to any area outside of Gauteng
An additional charge of R295 shipping applies owing to the weight/dimensions of the item
Collection from our Johannesburg office will be at no additional charge

Features

Increase power generation by 6.15%+: The panel is capable of decreasing power generation loss caused by Dust, reducing the hot spot risk.
Curved Surface 128° R Angle Reduce holding pressure by 75%+:  Curved Frame with ergonomic Design, optimized
Revolutionary Assembling Technology: Using excellent frame assembling technology, Strong Adhesion, and Durable in Use.
Excellent mechanical load capacity: Certified by Dust-Sand, Salt-Mist, Ammonia, etc. weather resistance tests and enhanced mechanical load: wind load (2400 Pa) and snow load (5400 Pa).

Specifications

Electrical Specifications

STC

Maximum Power (Pmax/W): 580W

Mechanical Specifications

Cable (Including connector): 4.0mm2, 300/400mm in length,
No.of Cells: 144 (6×24)
Glass: 3.2mm High Transmission, Antireflection Coating
Junction box: IP68, 3 Bypass Diodes
Connector: MC4 Compatible
Weight: 29kg
Cells Type: Mono 182×91mm
Dimension (L×W×H): 2279×1134×32mm

Operations Parameters

Maximum system voltage: 1500V DC
Operating Temperature: -40°C~+85°C
Maximum series fuse rating: 25A
Snow load, frontside/Wind load, backside: 5400Pa/2400Pa
Nominal operating cell temperature: 45°C±2°C
Application level: Class A
