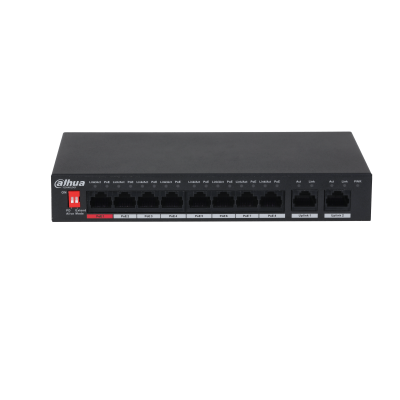

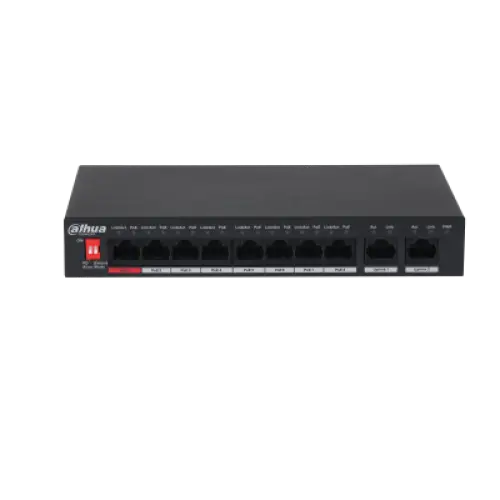

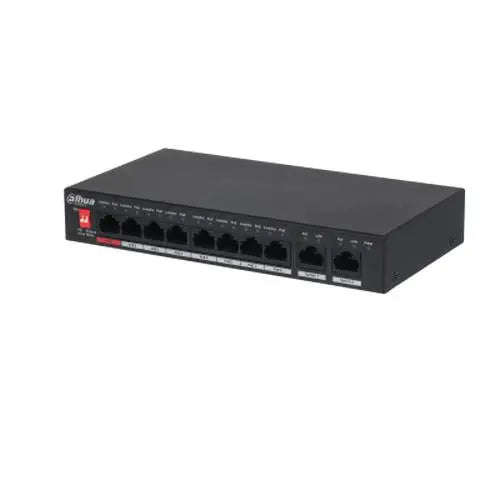

Dahua 10 Port Unmanaged Switch

Hardware

Data Transmission Port

Port 18: 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)

Power Supply

48 V - 57 V DC

Operaing Temperature

10 °C to +55 °C (+14°F to +131°F)

Operating Humidity

5% 95% (RH)

Storage Temperature

20 °C to +70 °C (4°F to +158°F)

Storage Humidity

5% 95% (RH)

Power Consumption

Idling: 3 W
Full load: 96 W

Performance

Switching Capacity

5.60 Gbps

Packet Forwarding Rate

4.17 Mpps

Packet Buffer Memory

4 Mbit

MAC Table Size

8K

Communication Standard

IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE

PoE Standard

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

Port 1 90 W, Port 2-8 30 W, total 96 W

Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE

250 m long distance PoE transmission

PoE Watchdog

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Thunder-proof

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.50 kg (1.10 lb)

Gross Weight

1.32 kg (2.91 lb)

Product Dimensions

190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")
