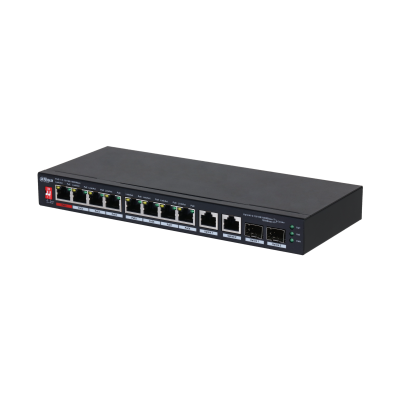

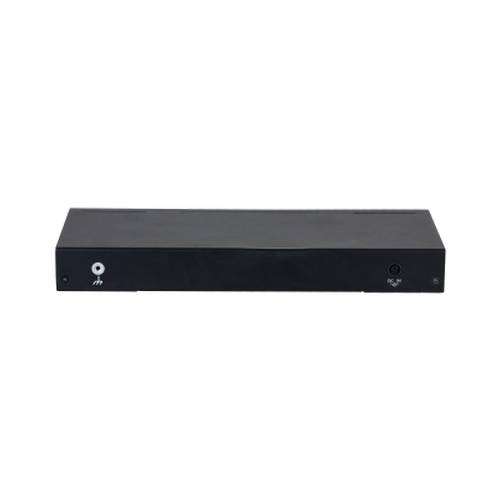

Dahua 10 Port Unmanaged Switch

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

8

Ethernet Port Speed

10/100/1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-8: 8 × 10/100/1000 Base-T (PoE)
Uplink 1-2: 2 × 10/100/1000 Base-T (Combo)
Uplink 1-2: 2 × 1000 Base-X (Combo)

Power Supply

53 VDC, 1.81 A

Operating Temperature

10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%90% (RH)

Storage Temperature

40 °C to +70 °C (40 °F to +158 °F)

Storage Humidity

5%95% (RH)

Power Consumption

Idling: 3 W
Full load: 96 W

Performance

Layer

Unmanaged

Management Type

No

Smart Managed Switch

No

MTBF

82.57 year

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

Packet Buffer Size

1.5 Mbit

Jumbo Frame

9K Byte

MAC Table Size

4K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x

PoE

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power

Port 2-8 30 W, port 1 90 W, total 96 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.65 kg (1.43 lb)

Gross Weight

1.4 kg (3.09 lb)

Product Dimensions

240 mm × 105 mm × 28 mm (9.45" × 4.13" × 1.10")

Packaging Dimensions

279 mm × 239 mm × 89 mm (10.98" × 9.41" × 3.50")

Casing Material

Metal

Installation

Desktop mount

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10 /100 m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90 W

100

71.3

1000

150

62

10

200

51

10

250

40

10

Hi-PoE 60 W

100

53

1000

150

50

10

200

47

10

250

37

10
