System |
Main Processor | Industrial-grade processor |
Operating System | Embedded Linux |
Operating Interface | Web; Local GUI |
QuickPick 2.0 |
QuickPick 2.0 AI by Recorder (Number of Channels) | 2 channels |
Perimeter Protection |
Perimeter Performance AI by Recorder (Number of Channels) | Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channel |
Face Detection |
Face Attributes | 6 attributes |
Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels(up to 12 face images/s each channel) |
Face Recognition |
Face Database Capacity | Up to 10 face databases with 10,000 images. |
Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
SMD Plus |
SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
SMD Plus by Camera | 24 channels |
AI Video Quality Analytics |
AI Video Quality Analytics by Recorder | 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
Scene Changing |
Scene Changing by Recorder | 1 channel |
Irregular Black Block Masking |
Irregular Black Block Masking by Recorder | 1 channel |
Audio and Video |

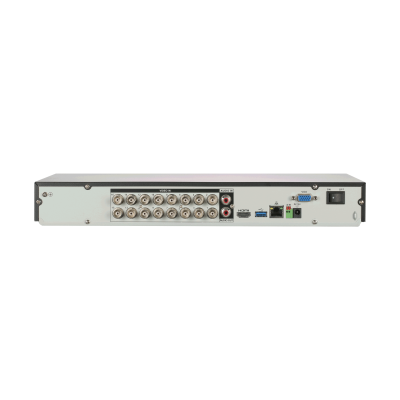

Analog Camera Input | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
Camera Input | 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
IP Camera Input | Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used. |
Encoding Capacity | Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps 12 fps); 4M-N/1080p@(1 fps15 fps); 1080N/720p/960H/D1/CIF@(1 fps25/30 fps) Sub stream: D1/CIF@(1 fps15 fps) |
Dual-stream | Yes |
Video Bit Rate | 32 kbps6144 kbps |
Audio Sampling | 8 kHz, 16 bit |
Audio Bit Rate | 64 kbps |
Video Output | 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face, IVS&SMD or Quick Pick is selected in AI Mode. |
Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
Third-party ... |
