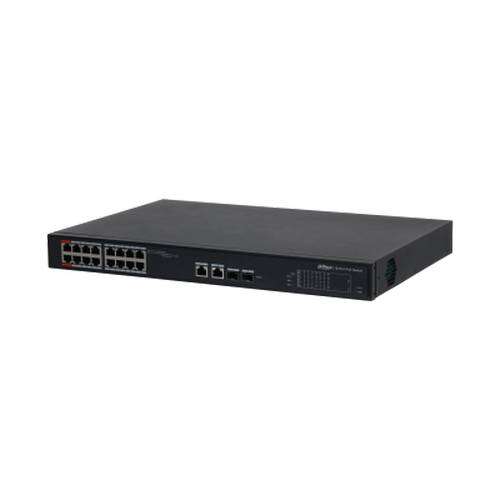

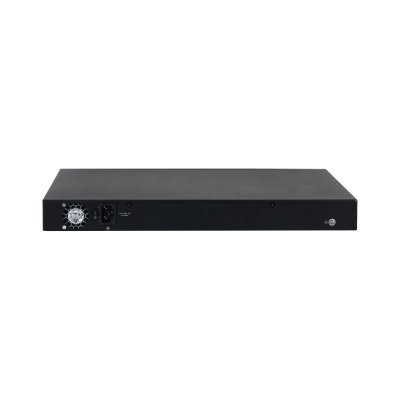

Dahua 18 Port Cloud Managed Switch

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Speed

10/100 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 116: 16 × RJ45 10/100 Mbps

Port 17-18: 2 × 10M/100M/1000M Base-T (uplink)(combo)

Port 17-18: 2 × 1000M SFP (uplink)(combo)

Power Supply

100240 VAC, 50/60 Hz, 2 A

Operating Temperature

10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%95% (RH), non-condensing

Storage Temperature

40 °C to +70 °C (40 °F to +158 °F)

Storage Humidity

5%95% (RH), non-condensing

Power Consumption

Idling: 5 W
Full: 240 W

Performance

Smart Managed Switch

Yes

MTBF

371,069 h

Switching Capacity

7.2 Gbps

Packet Forwarding Rate

5.36 Mpps

Packet Buffer Size

4 Mbit

MAC Table Size

16K

PoE

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

Port 12 90 W;
Port 316 30 W;
Total 240 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8(V)

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

3.20 kg (7.05 lb)

Gross Weight

4.30 kg (9.48 lb)

Product Dimensions

440 mm × 300 mm × 44 mm
(17.32"" × 11.81"" × 1.73"") (L × W × H)

Packaging Dimensions

528 mm × 412 mm × 112 mm
(20.79"" × 16.22"" × 4.41"") (L × W × H)

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

100

150

25.5

10

200

25.5

10

250

25.5

10
