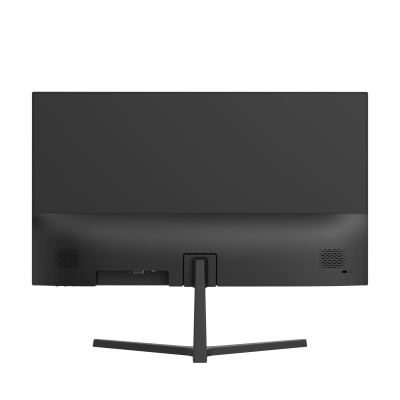

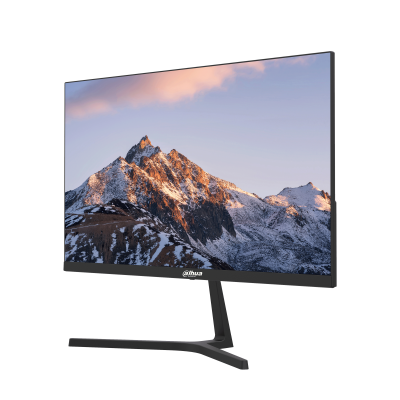

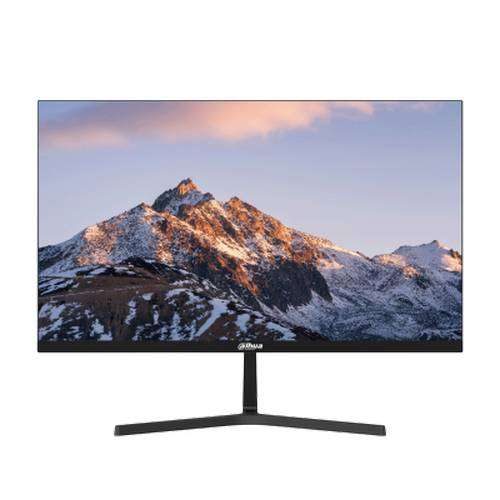

Dahua 22 Inch Monitor

Display

Model

DHI-LM22-B200S

LCD Technology

VA

Backlight

ELED

Screen Size

21.45 inch

Aspect Ratio

16:9

Viewing Size

478.656 (H) × 478.656 (V) mm

Screen-to-Body Ratio

90%

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.2493 mm × 0.241 mm

Pixels Per Inch

102.7

Resolution

1920 (H) × 1080 (V)

Refresh Rate

100 Hz

Display Color

16.7M colors

Color Gamut

72% NTSC

Brightness

250 cd/m² (max)

Contrast Ratio

3000:1

Response Time

OD 5 ms

Lifespan

30,000 hrs

Surface Treatment

Haze 25%, 3H

Low Blue Light

Software blue light protection

Device Ports

Input Port

1 × HDMI 1.4 (1920 × 1080@100 Hz), 1 × VGA

Output Port

1 × Audio out

Speaker

2 × 1 W

Power & Environmental Conditions

Power Supply

12 VDC, 2 A

Power Consumption

14 W (basic), 17 W (typ.), 19 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%85% (RH)

Storage Temperature

20 °C to +60 °C (4 °F to +140 °F)

Storage Humidity

5%90% (RH)

General

Inclined Angle

-5° / 15°

Product Dimensions

492.7 mm × 284.0 mm × 39.5 mm (19.40" × 11.18" × 1.56") (W × H × D), without wall-mount bracket

Package Size

598 mm × 366mm × 99 mm (23.54" × 14.41" × 3.90"） (W × H × D)

Unilateral Splicing

U/L/R/D: 2.2 mm/2.2 mm/2.2 mm/15.2 mm

Net Weight

2.18 kg (4.81 lb)

Gross Weight

3.12 kg (6.88 lb)

Casing Color

Black

Control Mode

Five-button

Status Indicator Light

Yes

Accessory

Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc.

Certification

Certifications

CE EMC, CE LVD, CE ERP
