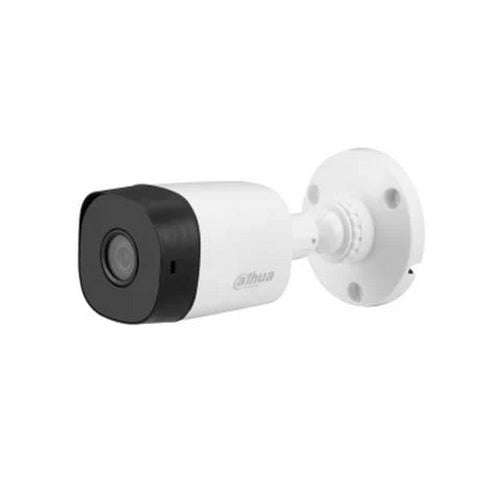

Dahua 2MP Bullet 20m IR 2.8mm

Dahua 2MP Bullet 20m IR 2.8mm

• Max. 30fps@1080P
• HD and SD output switchable
• 2.8mm fixed lens
• Max. IR length 20m, Smart IR
• IP67, DC12V

• Camera
  Image Sensor	2 MP CMOS
  Max. Resolution	1920 (H) × 1080 (V)
  Scanning System	Progressive
  Electronic Shutter Speed	PAL: 1/25 s1/100,000 s; NTSC: 1/30 s1/100,000 s
  Min. Illumination	0.02 lux@F2.0 (Color, 30 IRE) 0.002 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
  S/N Ratio	>65 dB
  Illumination Distance	30 m (98.43 ft)
  Illuminator On/Off Control	Auto/Manual
  Illuminator Number	2 (IR light)
  Angle Adjustment	Pan: 0°360° Tilt: 0°90° Rotation: 0°360°
  Lens
  Lens Type	Fixed-focal
  Lens Mount	M12
  Focal Length	2.8 mm
  Max. Aperture	F2.0
  Field of View	2.8 mm: H: 100°; V: 54°; D: 117°
  Iris Control	Fixed
  Close Focus Distance	2.8 mm: 0.5 m (1.64 ft)
  DORI Distance	Lens	Detect	Observe	Recognize	Identify
  	2.8 mm	44.7 m (146.65 ft)	17.9 m (58.73 ft)	8.9 m (29.20 ft)	4.5 m (14.76 ft)
  Video
  Video Frame Rate	CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H
  Resolution	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
  Day/Night	Auto(ICR)/Color/B/W
  BLC	BLC; DWDR
  WDR	DWDR
  White Balance	Auto
  Gain Control	Auto
  Noise Reduction	2D NR
  Illumination Mode	Smart IR
  Certification
  Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035
  Port
  Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
  Power
  Power Supply	12 VDC ± 30%
  Power Consumption	Max 2.8 W (12 VDC, IR on)
  Environment
  Operating Temperature	40 °C to +60 °C (40 °F to +140 °F)
  Operating Humidity	<95% (RH), non-condensing
  Storage Temperature	40 °C to +60 °C (40 °F to +140 °F)
  Storage Humidity	<95% (RH), non-condensing
  Protection	IP67
  Anti-corrosion Level	Basic Protection
  Structure
  Casing Material	Plastic
  Product Dimensions	146.1mm × 70.0 mm × 69.8mm (5.75" × 2.76" × 2.75")
  Net Weight	0.15 kg (0.33 lb)
  Gross Weight	0.23 kg (0.51 lb)
  Installation	Wall mount; ceiling mount; vertical pole mount
