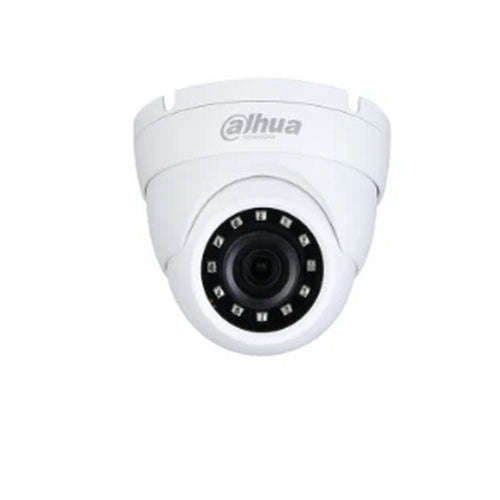

Dahua 2MP Dome 30m IR 2.8mm

Dahua 2MP Dome 30m IR 2.8mm

• Max 30fps@1080P
• HD and SD output switchable
• 2.8mm fixed lens
• Built-in mic(-A)
• Max. IR length 50m, Smart IR
• IP67, DC12V

• Camera

  Image Sensor

  1/2.7 inch CMOS

  Effective Pixels

  1920(H)×1080(V), 2MP

  Scanning System

  Progressive

  Electronic Shutter Speed

  PAL: 1/25s1/100000s NTSC: 1/30s1/100000s

  S/N Ratio

  >65dB

  Minimum Illumination

  0.02Lux/F1.9, 30IRE, 0Lux IR on

  Fill Light Working Distance

  50 m (164 ft)

  IR On/Off Control

  Auto; manual

  IR LED Number

  1

  Pan/Tilt/Rotation Range

  Pan: 0°360° Tilt: 0°78° Rotation: 0°360°

  Lens

  Lens Type

  Fixed-focal

  Mount Type

  M12

  Focal Length

  2.8 mm; 3.6 mm; 6 mm

  Max. Aperture

  F1.9

  Field of View

  2.8 mm: 119° x 101° x 54°

  Iris Type

  Fixed iris

  Close Focus Distance

  2.8 mm: 0.5 m (1.7 ft)

  DORI Distance

  Lens

  Detect

  Observe

  Recognize

  Identify

  2.8 mm

  38.6 m (126.6 ft)

  15.4 m (50.5 ft)

  7.7 m (25.3 ft)

  3.9 m (12.8 ft)

  Video

  Frame Rate

  CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H

  Resolution

  1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

  Day/Night

  Auto switch by ICR

  BLC

  BLC/HLC/DWDR

  WDR

  DWDR

  White Balance

  Auto; manual

  Gain Control

  Auto; manual

  Noise Reduction

  2D NR

  Smart IR

  Yes

  Electronic Defog

  Yes

  Mirror

  Off/On

  Privacy Masking

  Off/On (8 area, rectangle)

  Certifications

  Certifications

  CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

  Port

  Audio Output

  One channel built-in mic (-A)

  Video Output

  Video output choices of CVI/TVI/AHD/CVBS by one BNC port

  Power

  Power Supply

  12V ±30% DC

  Power Consumption

  Max 3.2W (12V DC, IR on)

  Environment

  Operating Temperature

  -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

  Storage Temperature

  -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

  Protection Grade

  IP67

  Structure

  Casing

  Mental throughout the whole casing

  Camera Dimensions

  106.0 mm × 93.6 mm (4.17" × 3.69")

  Net Weight

  0.44 Kg (0.97 lb)

  Gross Weight

  0.59 Kg (1.3 lb)
