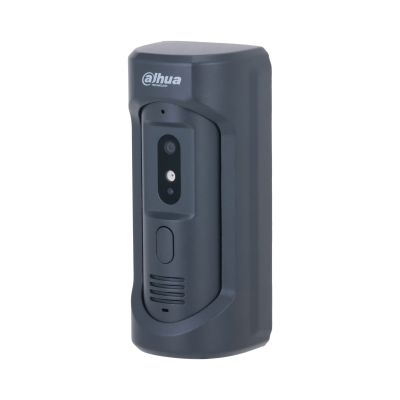

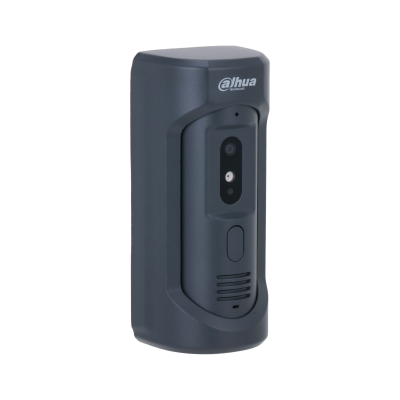

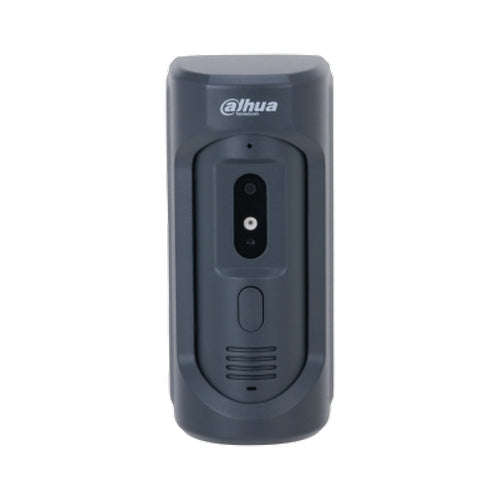

Dahua 2MP IP Villa Outdoor Station 2.8mm

System

Main Processor

Embedded Processor

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Basic

Camera

1/2.8" 2-MP CMOS HD Camera

Field of View

H: 80°; V: 40°; D: 90°

WDR

120 dB

Noise Reduction

3D NR; 2D NR

Video Compression

H.264; H.265

Video Resolution

Main stream: 720p, WVGA, D1, and CIF;
Sub stream: 1080p, WVGA, D1, QVGA, and CIF

Video Frame Rate

PAL: 25 fps
NTSC: 30 fps

Video Bit Rate

768 kbps8 Mbps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W; Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Communication Mode

Full digital

Unlock Mode

Remote

Leave Videos

Yes (SD card inserted in VTH is needed)

Web Configuration

Yes

Performance

Casing

Zinc alloy

Port

RS-485

1

Alarm Input

1

Exit Button

1

Lock Control

1

Network Port

1 × RJ-45 10/100 Mbps Ethernet port

Alarm

Tamper Alarm

Yes

General

Appearance color

Grey

Power Supply

12 VDC, 1 A;
Standard PoE

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE; FCC

Accessory

Included: Alarm power ribbon cable, rain cover

Product Dimensions

163.0 mm × 73.0 mm × 55.0 mm (6.42" × 2.87" × 2.17")

Protection

IP65 IK10

Operating Temperature

40 °C to +60 °C (40 °F to +140 °F)

Operating Humidity

10%90% (RH), non-condensing

Operating Altitude

0 m3,000 m (0 ft9,842.51 ft)

Power Consumption

2.5 W (standby), 5 W (working)

Gross Weight

0.8 kg (1.76 lb)

Net Weight

0.3 kg (0.66 lb)
