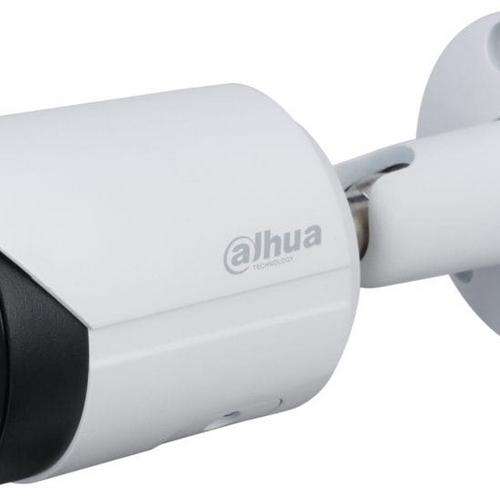

Dahua 2MP IR Bullet Network Camera
System Overview
With upgraded H.265 encoding technology, Dahua Lite series camera has
efficient video encoding capacity, which saves bandwidth and storage
space. This camera adopts the latest starlight technology and displays
better colorful image in the environment of low illumination. It supports
SD card storage, waterproof function, dust-proof function, complying to
the standards of IP67.
Functions
Smart ( H.265+ & H.264+ )
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher effi-
ciency than (H.265 & H.264 ), providing high-quality video, and reducing
the cost of storage and transmission.
Starlight
Dahua Starlight technology mainly applies to the environment of low
illumination, and it can provide clear colorful video. Even in the envi-
ronment of min. illumination, the technology can guarantee the good
image effect.
· 2MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
· Outputs 2MP (1920 × 1080)@25/30 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card,
SD card full, SD card error, network disconnected, IP conflict, illegal
access, voltage detection
· Supports max. 256 GB Micro SD card
· 12V DC/POE power support
· IP67 protection
2Mp IP67
H.265+ Starlight IVS
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent
detection, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It
has dust-proof function, and the enclosure can works normal after
soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.
