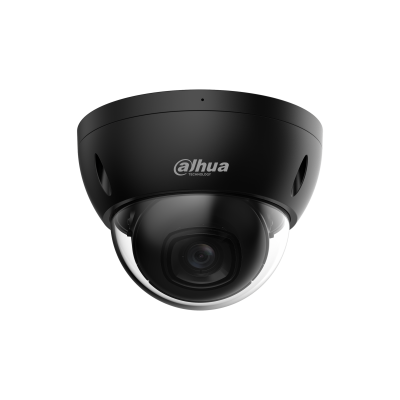

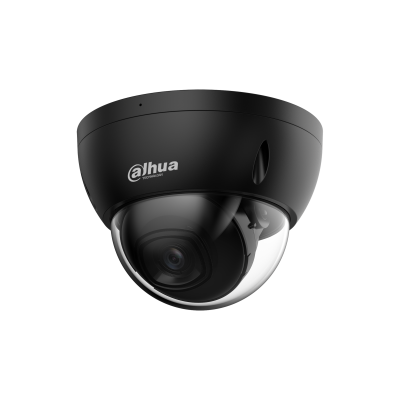

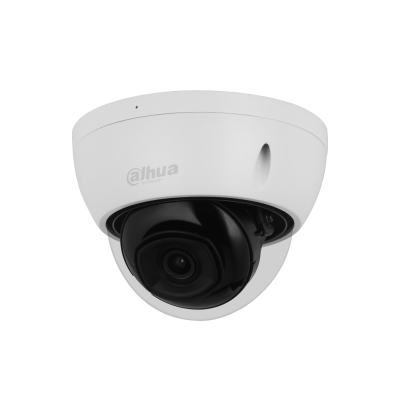

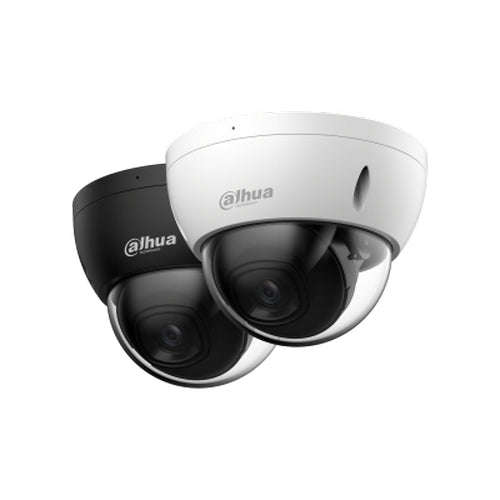

Dahua 2MP IR Fixed-focal Dome WizSense Network Camera
> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080)@25/30 fps.
> Support Triple Stream.
> H.265 codec, high compression rate, ultra-low bit rate. · Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 and IK10 protection.
> SMD Plus.
Camera |
Image Sensor | 1/2.8" CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.002 lux@F1.6 (Color, 30 IRE)
0.0002 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | up to 30 m (98.43 ft) (IR LED) |
Illuminator On/Off Control | Auto;Manual |
Illuminator Number | 3 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°355°
Tilt: 0°65°
Rotation: 0°355° |
Lens |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 2.8 mm; 3.6 mm |
Max. Aperture | F1.6 |
Field of View | 2.8 mm: H: 106°; V: 56°; D: 127°
3.6 mm: H: 88°; V: 44°; D: 105° |
Iris Control | Fixed |
Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 43.9 m (144.03 ft) | 17.5 m (57.41 ft) | 8.8 m (28.87 ft) | 4.4 m (14.44 ft) |
3.6 mm | 58.9 m (193.24 ft) | 23.6 m (77.43 ft) | 11.8 m (38.71 ft) | 5.9 m (19.37 ft) |
Intelligence |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Video Frame Rate | Main stream: 1920 × 1080@(125/30 fps)
Sub stream: 704 × 576@(125 fps)/704 × 480@(130 fps) Third stream: CIF@1fp
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 3 streams |
Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbps6144 kbps H.265: 12 kbps6144 kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Manual;Auto |
Noise Reduction | 3D NR |
