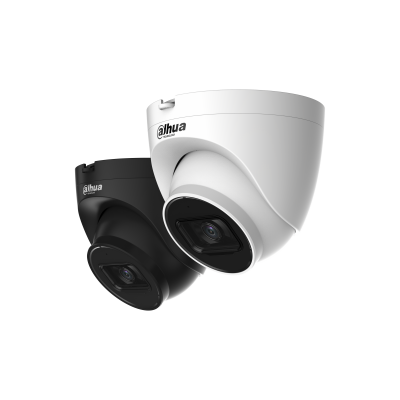

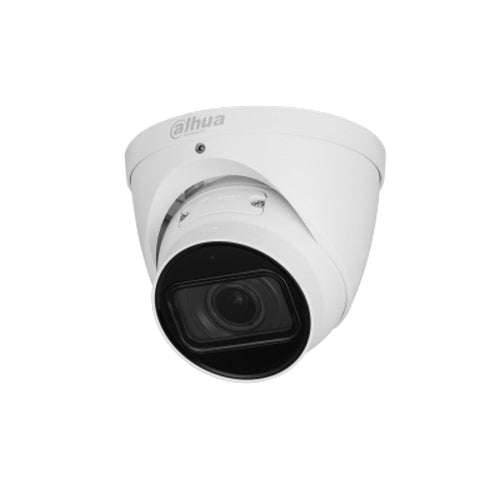

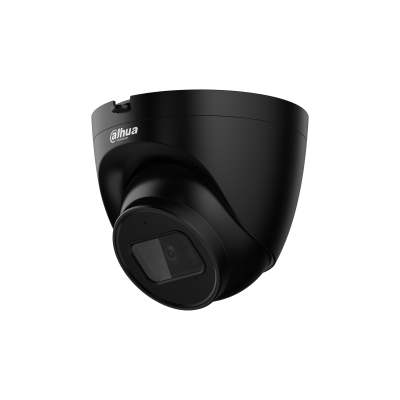

> 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire.
> Abnormality detection: Motion detection, privacy masking, audio abnormity, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Max. 256 G micro SD card; built-in MIC.
> 12V DC/PoE power supply.
> IP67 protection.
Camera |
Image Sensor | 1/2.8" CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.005 Lux@F1.6 (Color, 30 IRE) 0.0005 Lux@F1.6 (B/W, 30 IRE) 0 Lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | 30 m (98.43 ft) (IR) |
Illuminator On/Off Control | Auto; manual |
Illuminator Number | 2 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°360°
Tilt: 0°78°
Rotation: 0°360° |
Lens |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 2.8 mm; 3.6 mm |
Max. Aperture | 2.8 mm: F1.6
3.6 mm: F1.6 |
Field of View | 2.8 mm: Horizontal: 107°; Vertical: 56°; Diagonal: 127°
3.6 mm: Horizontal: 88°; Vertical: 44°; Diagonal: 105° |
Iris Control | Fixed |
Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 43.9 m (144.03 ft) | 17.5 m (57.41 ft) | 8.8 m (28.87 ft) | 4.4 m (14.44 ft) |
3.6 mm | 58.9 m (193.24 ft) | 23.6 m (77.43 ft) | 11.8 m (38.71 ft) | 5.9 m (19.36 ft) |
Smart Event |
IVS | Tripwire; intrusion |
Video |
Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Video Frame Rate | Main stream:
1920 × 1080@125/30 fps
Sub stream:
704 × 576@125 fps
704 × 480@130 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 2 streams |
Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbps6144 kbps
H.265: 12 kbps6144 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | DWDR |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto; manual |
Noise Reduction | 3D NR |
Motion D... |
