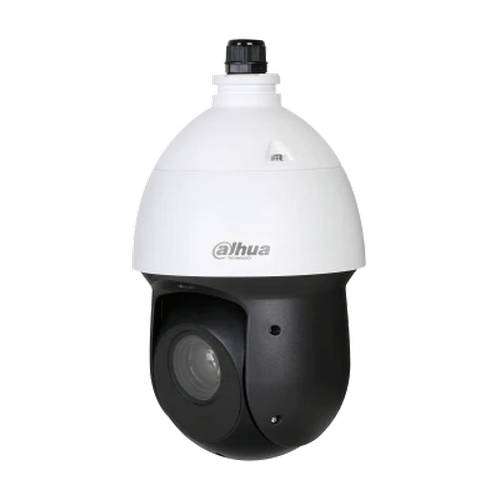

Dahua 2MP PTZ 100m IR 25 x Optical Zoom

Camera

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

256 MB

Electronic Shutter Speed

1/3 s1/30,000 s

Scanning System

Progressive

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (IR light)

Illumination Distance

100 m (328.08 ft) (IR)

Illuminator On/Off Control

Zoom Prio; manual

Illuminator Number

6 (IR)

Lens

Focal Length

4.8 mm120 mm

Max. Aperture

F1.6F3.5

Field of View

H: 60.6°3.2°;
V: 34.1°1.8°;
D: 69.4°3.7°

Optical Zoom

25×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m2 m (0.33 ft6.56 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

1655.2 m (5430.45 ft)

653.8 m (2145.01 ft)

331.0 m (1085.96 ft)

165.5 m (542.98 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless;
Tilt: 15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°200°/s
Tilt: 0.1°120°/s

Preset Speed

Pan: 240°/s;
Tilt: 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern;Preset;Scan;Tour

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Video

Resolution

1080p (1920 × 1080); 720p (1280 × 720); D1 (704 ×
576/704 × 480)

Video Frame Rate

1080p (25/30 fps); 720p (25/30/50/60 fps)

Day/Night

Yes

BLC

Yes

WDR

120dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Yes

S/N Ratio

50 dB

Function

CVI Product Output Mode

TVI;CVI;CVBS;AHD(CVBS is only used for debugging)

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port

Analog Output

1 channel (CVBS/CVI output, BNC)

RS-485

1 (baud rate range: 1200 bps9600 bps)
