System |
Main Processor | Industrial-grade processor |
Operating System | Embedded Linux |
Operating Interface | Web; Local GUI |
QuickPick 2.0 |
QuickPick 2.0 AI by Recorder (Number of Channels) | 2 channels |
Perimeter Protection |
Perimeter Performance AI by Recorder (Number of Channels) | Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 8 channels, 10 IVS rules for each channel |
Face Detection |
Face Attributes | 6 attributes |
Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
Face Recognition |
Face Database Capacity | Up to 10 face databases with 10,000 images. |
Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
SMD Plus |
SMD Plus by Recorder | 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
SMD Plus by Camera | 48 channels |
AI Video Quality Analytics |
AI Video Quality Analytics by Recorder | 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
Scene Changing |
Scene Changing by Recorder | 1 channel |
Irregular Black Block Masking |
Irregular Black Block Masking by Recorder | 1 channel |
Audio and Video |

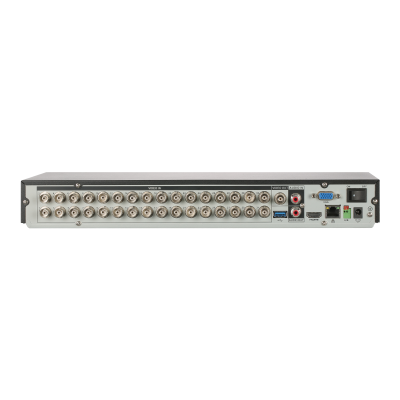

Analog Camera Input | 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
Camera Input | 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
IP Camera Input | Up to 48 channels of IPC access 16 IP channels by default +32 channels (analog channels are converted to IP channels) incoming bandwidth: 192 Mbps, recording bandwidth: 192 Mbps and outgoing bandwidth: 192 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used. |
Encoding Capacity | Encode Enhancement disabled： Main stream: Channels 1-4 and 17-20 5M-N@(1 fps25 fps), others 5M-N@(1 fps12 fps); Channels 1-4 and 17-20 4M-N/1080p@(1 fps30 fps), others 4M-N/1080p@(1 fps15 fps); 1080N/720p/960H/D1/CIF@(1 fps30 fps); Sub stream: D1/CIF@(1 fps15 fps); Encode Enhancement enabled： Main stream: Channels 1-8 and 17-24 5M-N@(1 fps20 fps), others 5M-N@(1 fps-12 fps); (4 channels can be transformed to 5MP@6 fps) Channels 1-8 and 17-24 4M-N/1080p@(1 fps25 fps), others 4M-N/1080p@(1 fps15 fps); 1080N/720p/960H/D1/CIF@(1 fps30 fps); Sub stream: D1/CIF@(1 fps15 fps); *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used. |
Dual-stream | Yes |
Video Bit Rate | 32 kbps6144 kbps |
Audio Sampling | 8 kHz, 16 bit |
