System |
Main Processor | Industrial-grade processor |
Operating System | Embedded Linux |
Operating Interface | Web; Local GUI |
SMD Plus |
SMD Plus by Recorder | 4-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
Audio and Video |
Analog Camera Input | 4 BNC ports, CVI access by default, supports HDCVI/ AHD/TVI/CVBS auto-detect |
Camera Input | 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
4. CVBS: PAL/NTSC |
IP Camera Input | Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled. |
Encoding Capacity | Main Stream:
All channel 5M-N@ (1 fps10 fps); 4M-N/1080p@ (1 fps15 fps); 1080N/ 720p/960H/D1/CIF@ (1 fps25/30 fps)
Sub stream:
D1/CIF (1 fps15 fps) |
Dual-stream | Yes |
Video Bit Rate | 32 kbps6144 kbps |
Audio Sampling | 8 kHz, 16 bit |
Audio Bit Rate | 64 kbps |
Video Output | 1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
Multi-screen Display | When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6 |
Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
Compression Standard |
Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
Audio Compression | G.711a; G.711u; PCM |
Network |
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
Mobile Phone Access | iOS; Android |
Interoperability | ONVIF 21.06; CGI Conformant |
Browser | Chrome
IE9 or later
Firefox |
Network Mode | Single-address mode |
Recording Playback |
Record Mode | General, motion detection, alarm,POS |
Recording Playback | 1/4 |
Backup Method | USB device and network |
Playback Mode | Instant playback, general playback, event playback, tag playback |
Alarm |
General Alarm | Motion detection, video loss, tampering |
Anomaly Alarm | No disk, disk error, low space, offline, ip conflict, MAC conflict |
Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |

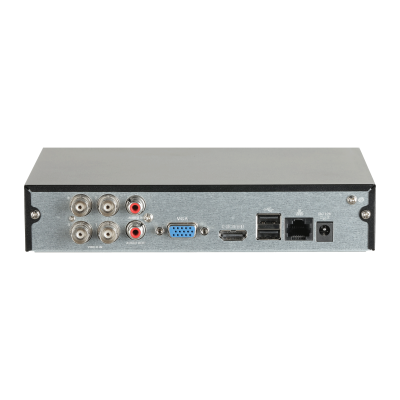

Ports |
Audio Input | 1-channel RCA
4-channel BNC (Coaxial Audio) |
Audio Output | 1-channel RCA |
Two-way Talk | Yes (share the same audio input with the first channel) |
HDD Interface | 1 SSD: 512 GB (replaceable with 256 GB or 1 TB) Stores for 11 days under default settings. |
USB | 2 USB ports (USB 2.0) |
HDMI | 1 |
VGA | 1 |
Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
|
