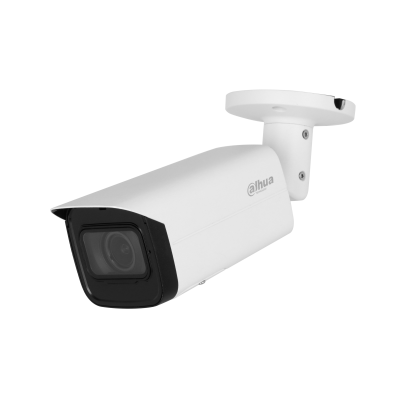

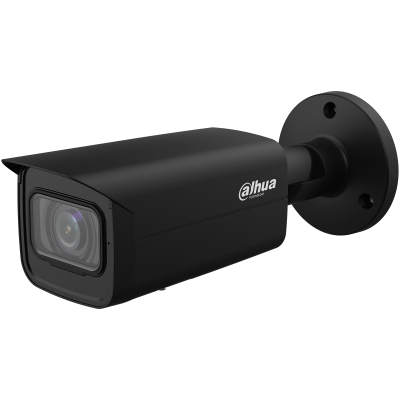

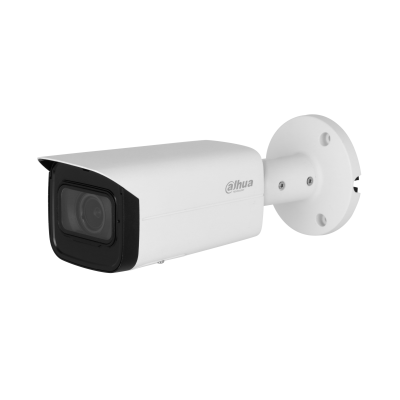

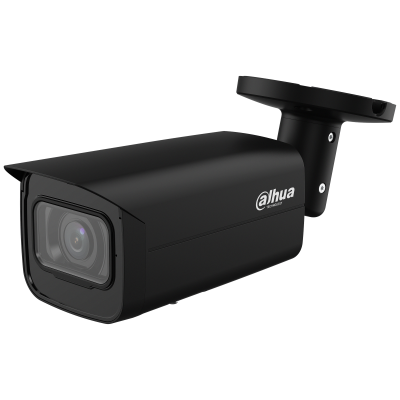

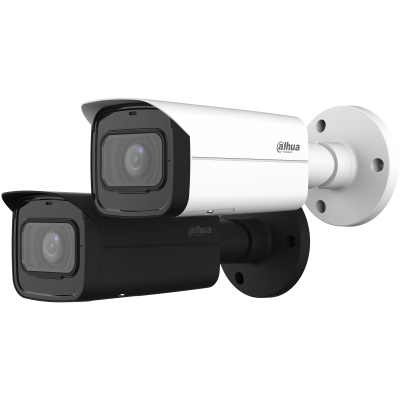

Dahua 4MP Bullet 60m IR 2.7-13.5mm
> 5-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4MP (2688 × 1520) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, max. IR distance: 60 m.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card. built-in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 (optional) protection.
> SMD 4.0, AI SSA.
Camera |
Image Sensor | 1/2.7" CMOS |
Max. Resolution | 2960 (H) × 1668 (V) |
ROM | 128 MB |
RAM | 512 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | Up to 60 m (196.85 ft) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 4 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°360°; Tilt: 0°90°; Rotation: 0°360° |
Lens |
Lens Type | Motorized vari-focal |
Lens Mount | 14 |
Focal Length | 2.7 mm13.5 mm |
Max. Aperture | F1.5 |
Field of View | Horizontal: 99°28° Vertical: 71°21° Diagonal: 134°35° |
Iris Control | Fixed |
Close Focus Distance | 0.8 m (2.62 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 64.0 m (209.97 ft) | 25.6 m (83.98 ft) | 12.8 m (41.99 ft) | 6.4 m (21.00 ft) |
T | 210.0 m (688.98 ft) | 84.0 m (275.59 ft) | 42.0 m (137.80 ft) | 21.0 m (68.90 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence |
IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
AI SSA | Yes |
Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.265+
Smart H.264+ |
AI Coding | AI H.265
AI H.264 |
Video Frame Rate | Main stream: 2880 × 1620 @ (120) fps / 2960 × 1668 @ (120) fps / 2688 × 1520@(125/30 fps)
Sub stream 1: 704 × 576 @ (125 fps)/ 704 × 480 @ (130 fps)
Sub stream 2: 1920 × 1080 @ (125/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
Stream Capability | 3 streams |
|
...
