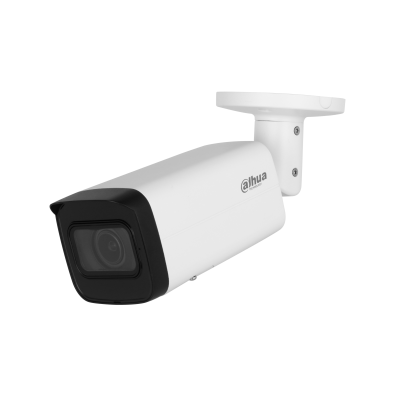

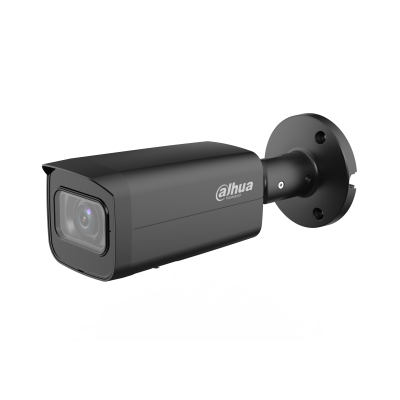

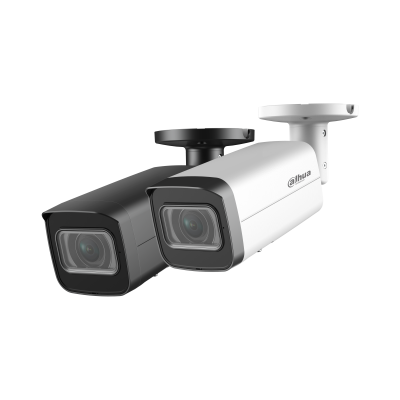

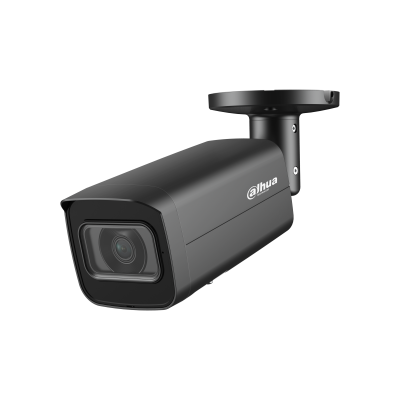

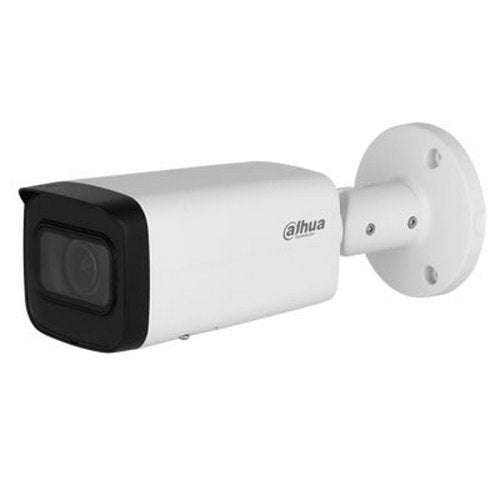

Dahua 4MP Bullet 60m IR 2.7-13.5mm
> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 (2560 × 1440)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67, IK10 (optional) protection.
> SMD Plus.
Camera |
Image Sensor | 1/2.9" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.006 lux@F1.5 (Color, 30 IRE) 0.0006 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | Up to 60 m (196.85 ft) (IR LED) |
Illuminator On/Off Control | Auto; Manual |
Illuminator Number | 4 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°360°
Tilt: 0°90°
Rotation: 0°360° |
Lens |
Lens Type | Motorized vari-focal |
Lens Mount | 14 |
Focal Length | 2.7 mm13.5 mm |
Max. Aperture | F1.5 |
Field of View | H: 104°29°;
V: 54°16°;
D: 125°34° |
Iris Control | Fixed |
Close Focus Distance | 0.8 m (2.62 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 64.0 m (209.97 ft) | 25.6 m (83.99 ft) | 12.8 m (41.99 ft) | 6.4 m (20.99 ft) |
T | 210.0 m (688.97 ft) | 84.0 m (275.59 ft) | 42.0 m (137.80 ft) | 21.0 m (68.90 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Video Frame Rate | Main stream: 2688 × 1520@(120 fps)/2560 × 1440@(1-25/30 fps)
Sub stream: 704 × 576@(125 fps)/704 × 480@(130 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 2 streams |
Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbps6144 kbps;
H.265: 12 kbps6144 kbps |
