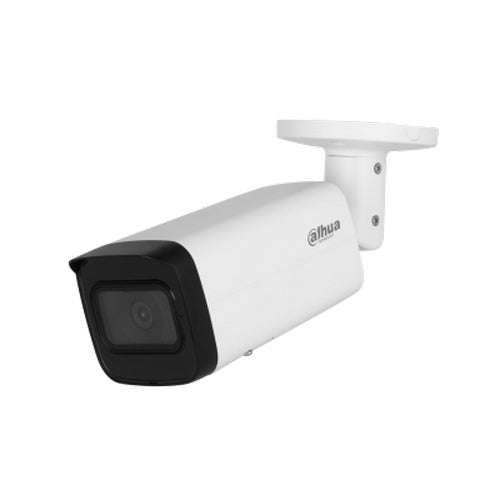

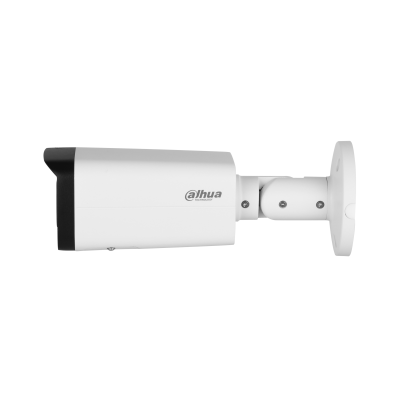

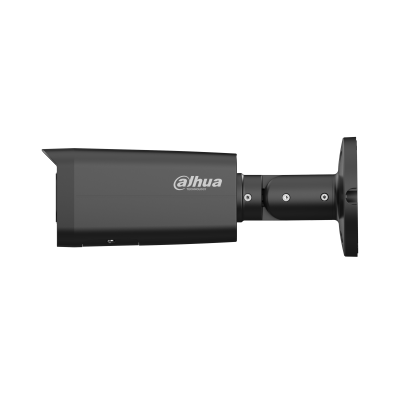

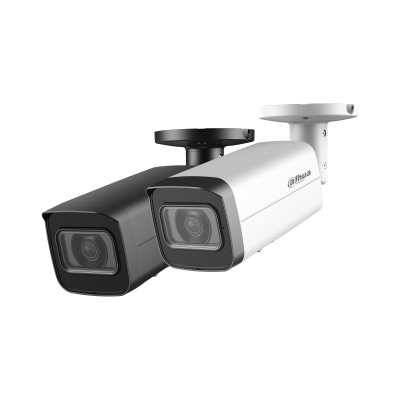

Dahua 4MP Bullet 80m IR 6mm - SMD
> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps and supports 2560 × 1440 (2560 × 1440)@25/30 fps.
> Support Triple Stream.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> IIntelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out ; audio: 1 in, 1 out ; supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 , IK10 (optional) protection.
> SMD Plus.
Camera |
Image Sensor | 1/2.9" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.006 Lux@F1.6 (Color, 30 IRE) 0.0006 Lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | up to 80 m (262.47 ft) (IR LED) |
Illuminator On/Off Control | Auto; Manual |
Illuminator Number | 4 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°360°
Tilt: 0°90°
Rotation: 0°360° |
Lens |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 8 mm; 6 mm; 3.6 mm |
Max. Aperture | F1.6 |
Field of View | 3.6 mm: H: 84°; V: 42°; D: 101°
6 mm: H: 52°; V: 28°; D: 61°
8 mm: H: 40°; V: 23°; D: 46° |
Iris Control | Fixed |
Close Focus Distance | 3.6 mm: 1.7 m (5.58 ft)
6 mm: 3.2 m (10.50 ft)
8 mm: 4.6 m (15.09 ft) |
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
3.6 mm | 85.4 m (280.18 ft) | 34.2 m (112.20 ft) | 17.1 m (56.10 ft) | 8.5 m (27.89 ft) |
6 mm | 124.0 m (406.82 ft) | 49.6 m (162.73 ft) | 24.8 m (81.36 ft) | 12.4 m (40.68 ft) |
8 mm | 150.4 m (493.44 ft) | 60.2 m (197.51 ft) | 30.1 m (98.75 ft) | 15.0 m (49.21 ft) |
Intelligence |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Video Frame Rate | Main stream: 2688 × 1520@(120 fps)/2560 × 1440@(125/30 fps)
Sub stream: 704 × 576@(125 fps)/704 × 480@(130 fps) Third stream: CIF@1fp
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 3 streams |
Resolution | 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbp... |
