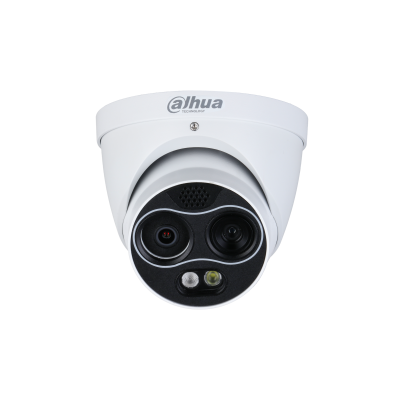

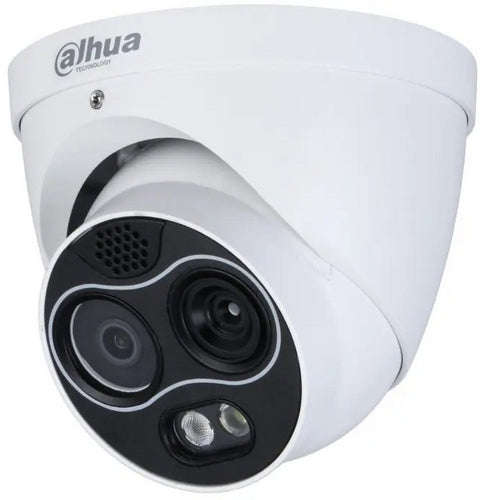

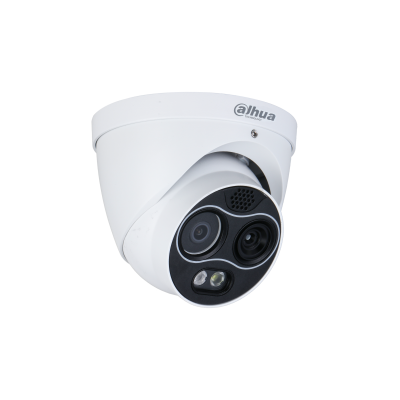

Dahua 4MP Dual Thermal EyeBall

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Max. Resolution

256 (H) × 192 (V)

Pixel Pitch

12 m

Spectral Range

8 m14 m

Thermal Sensitivity (NETD)

< 40 mK (@f/1.0, 25 Hz, 300 K)

Field of View

2 mm: H: 87.8°; V: 63.8°

3.5 mm: H: 50.6°; V: 37.8°

7 mm: H: 24°; V: 18°

Close Focus Distance

2mm: 0.3 m (0.98 ft)

3.5 mm: 0.5 m (1.64 ft)

7 mm: 1 m (3.28 ft)

Detection Distance

2 mm: Vehicle: 256 m (839.90 ft);

Human: 83 m (272.31 ft)

3.5 mm: Vehicle: 449 m (1,473.10 ft);

Human: 146 m (479.00 ft)

7 mm: Vehicle: 897 m (2,942.91 ft);

Human: 292 m (958.01 ft)

Recognition Distance

2 mm: Vehicle: 63 m (206.69 ft);

Human: 21 m (68.90 ft)

3.5 mm: Vehicle: 110 m (360.89 ft);

Human: 38 m (124.67 ft)

7 mm: Vehicle: 220 m (721.78 ft);

Human: 75 m (246.06 ft)

Identification Distance

2 mm: Vehicle: 32 m (104.99 ft);

Human: 11 m (36.09 ft)

3.5 mm: Vehicle: 56 m (183.73 ft);

Human: 19 m (62.34 ft)

7 mm: Vehicle: 111 m (364.17 ft);

Human: 38 m (124.67 ft)

Note:

Detection Distance: Detects objects, but cannot recognize their characteristics

(objects must cover more than 3.6 pixels of the image).

Recognition Distance: Classifies objects into general categories, such as human,

vehicle (the object must cover more than 14 pixels of the image).

Identification Distance: Classifies objects into specific categories based on their

characteristics, such as engineering truck, car (the object must cover more than 28

pixels of the image).

Aperture

F1.0

Digital Detail
Enhancement (DDE)

Yes

Digital Zoom

16 levels

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

180°

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)

Fusion Mode

3 (Warm color; Cool color; Ironred)

Visible

Image Sensor

1/2.7'' CMOS

Max. Resolution

2336 (H) × 1752 (V)

Pixel

4 MP

Electronic Shutter Speed

1/30,000 s1 s

Min. Illumination

Color: 0.05 lux

Black & white: 0.005 lux

0 lux (IR on)

IR Illumination Distance

30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Aperture

2 mm: F2.2

4 mm: F1.6

8 mm: F2.0

Field of View

2 mm: H: 94°; V: 72°

4 mm: H: 71.2°; V: 52°

8 mm: H: 33.4°; V: 25°

Focus Control

Fixed

Close Focus Distance

2 mm: 0.3 m (0.98 ft)

4 mm: 1 m (3.28 ft)

8 mm: 2.5 m (8.2 ft)

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

DWDR

HLC

Yes
