General

Appearance

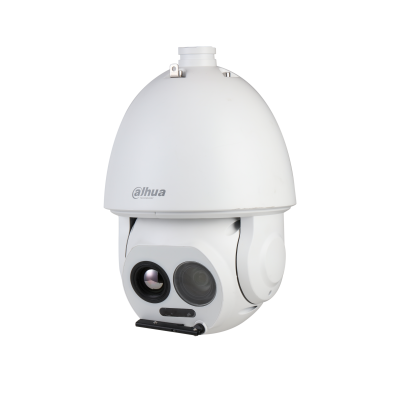

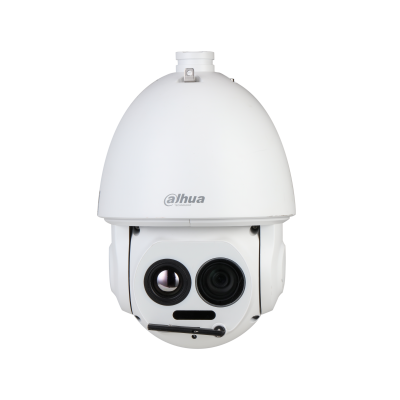

Thermal Network Hybrid Speed Dome Camera

Type

Radiometry

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

640 (H) × 512 (V)

Pixel Pitch

12 m

Spectral Range

8 m14 m

Sensitivity (NETD)

<35 mK (@f/1.0, 25 Hz, 300 K)

Focal Length

7 mm; 13 mm; 19 mm; 25 mm; 35 mm; 50 mm

Field of View

7 mm: H: 63.8°; V: 51°

13 mm: H: 36.7°; V: 29.4°

19 mm: H: 23.3°; V: 18.6°

25 mm: H: 18.6°; V: 14.8°

35 mm: H: 12.6°; V: 10.1°

50 mm: H: 9.2°; V: 7.3°

Thermal Focus Control

Fixed-focal

Detection Distance

7mm: Vehicle: 897 m (2,942.91 ft) ;

Human: 292 m (958.01 ft);

13mm: Vehicle: 1,667 m (5,469.16 ft);

Human: 572 m (1,876.64 ft);

19 mm: Vehicle: 2,436 m (7,992.13 ft);

Human: 792 m (2,598.43 ft);

25 mm: Vehicle: 3,205 m (1,0515.09 ft);

Human: 1,042 m (3,418.64 ft);

35 mm: Vehicle: 4,487 m (14,721.13 ft);

Human: 1,458 m (4,783.46 ft);

50 mm: Vehicle: 6,410 m (21,030.18 ft)

Human: 2,083 m (6,833.99 ft);

Recognition Distance

7mm: Vehicle: 220 m (721.78 ft) ;

Human: 75 m (246.06 ft);

13mm: Vehicle: 409 m (1,341.86 ft);

Human: 139 m (456.04 ft);

19 mm: Vehicle: 598 m (1,961.94 ft);

Human: 204 m (669.29 ft);

25 mm: Vehicle: 786 m (2,578.74 ft);

Human: 268 m (879.27 ft);

35 mm: Vehicle: 1,101 m (3,612.2 ft);

Human: 375 m (1,230.31 ft);

50 mm: Vehicle: 1,572 m (5,157.48 ft);

Human: 536 m (1,758.53 ft);

Identification Distance

7mm: Vehicle: 111 m (364.17 ft);

Human: 38 m (124.67 ft);

13mm: Vehicle: 206 m (675.85 ft);

Human: 67 m (219.82 ft);

19 mm: Vehicle: 302 m (990.81 ft);

Human: 102 m (334.65 ft);

25 mm: Vehicle: 397 m (1,302.49 ft);

Human: 134 m (439.63 ft);

35 mm: Vehicle: 556 m (1,824.15 ft);

Human: 188 m (616.8 ft);

50 mm: Vehicle: 794 m (2,604.99 ft));

Human: 268 m (879.27 ft)

Note:

Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image).

Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image).

Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image).

Digital Detail Enhancement (DDE)

Yes

Thermal Image Stabilization

Electronic Image Stabilization (EIS)

Digital Zoom

24 levels

Thermal AGC

Auto/Manual

Thermal Noise Reduction

2D NR/3D NR

Image Flip

180°

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)

Temperature Measurement

Range

Low temperature mode:

20 °C (4 °F) to +150 °C (+302 °F)

High temperature mode:

0 °C (+34 °F) to +550 °C (+1022 °F)

Auto mode

Temperature Measurement

Accuracy

Max. (±2 °C, ±2%)

Operating temperature: 20 °C (4 °F) to +50 °C (+122

°F)

Temperature Measurement

Mode

Spot: 12

Line: 12

Area: 12

Supports 12 rules simultaneously

Visible

Image Sensor

1/2.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

Center 1200 TVL

Edge 900 TVL

Min. Illumination

Color: 0.01 lux

Black & white: 0.001 lux

0 lux (IR on)

Visible AGC

Auto/Manual

Visible Noise Reduction

2D NR/3D NR

S/N Ratio
