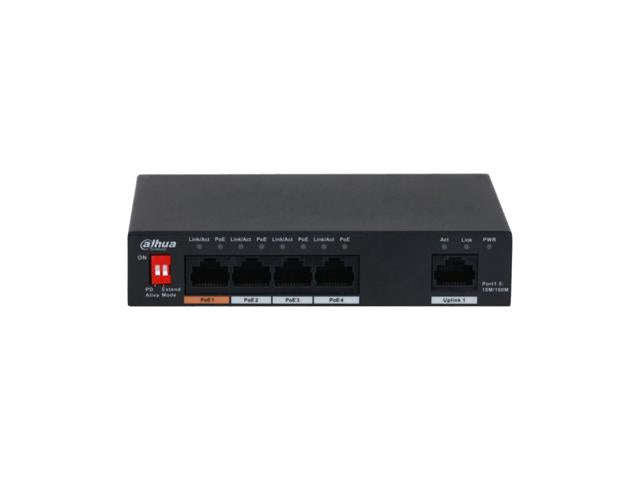

Dahua 5 Port Unmanaged Switch

Dahua 5 Port Unmanaged Switch

Ethernet Port

• Port 1-4: 4 × RJ-45 10/100M (PoE)
• Port 5: 1 × RJ-45 10/100M (uplink)

PoE Power Consumption

• Port 1 60 W (Hi-PoE)
• port 2-4 30 W
• total 60 W

Power Consumption

• Idling: 0.8 W
• Full load: 60 W
• Standard : IEEE802.3, IEEE802.3u, IEEE802.3x

PoE

• PoE Protocol : IEEE802.3af/ IEEE802.3at/ Hi-PoE
• Power Supply Pin : 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Long Distance : 250 m long distance PoE transmission
• PoE Power Management : Yes
• PoE Watchdog : Yes

Performance

• Switching Capacity : 1.8 Gbps
• Packet Forwarding Rate : 744 Kbps
• Packet Buffer Memory : 1 Mbit
• Flow Control : Enable by default
• Working Temperature : 10 °C to +55 °C (+14 °F to +131 °F)
• Application Humidity : 5% 95% (RH)

General

• Power Input : 48 V - 57 V DC
• Lighting Protection
  • Common mode: 4 kV
  • Differential mode: 2 kV
• ESD Protection
  • Air discharge: 8 kV
  • Contact discharge: 6 kV
• Wall-mount Installation : Yes
• Anti-theft Lock Hole : Yes
• Weight : 0.30 kg (0.64 lb)
• Dimension : 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")
