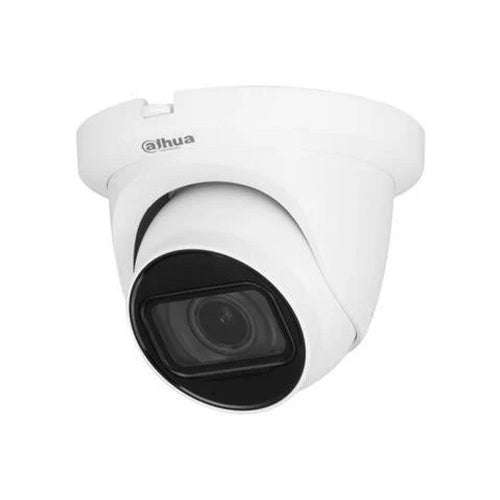

Dahua 5MP Eyeball 30m IR 2.8mm

Dahua 5MP Eyeball 30m IR 2.8mm

• Max 25 fps@5MP (16:9 video output)
• Quick-to-install eyeball saves installation time
• CVI/CVBS/AHD/TVI switchable
• 2.8 mm fixed lens
• Built-in mic(-A)
• Max. IR length 30 m, Smart IR
• IP67, 12V DC

• Camera

  Image Sensor

  1/2.7 inch CMOS

  Max. Resolution

  2880 (H) × 1620 (V)

  Pixel

  5MP

  Scanning System

  Progressive

  Electronic Shutter Speed

  PAL: 1/25s1/100000s NTSC: 1/30s1/100000s

  S/N Ratio

  >65 dB

  Min. Illumination

  0.005 Lux/F1.6, 30IRE, 0 Lux IR on

  Illumination Distance

  30 m (98.4 ft)

  Illuminator On/Off Control

  Auto; manual

  Illuminator Number

  1

  Pan/Tilt/Rotation Range

  Pan: 0°360° Tilt: 0°78° Rotation: 0°360°

  Lens

  Lens Type

  Fixed-focal

  Mount Type

  M12

  Focal Length

  2.8 mm; 3.6 mm

  Max. Aperture

  F1.6

  Field of View

  2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical)

  Iris Type

  Fixed iris

  Close Focus Distance

  2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft)

  DORI Distance

  Lens

  Detect

  Observe

  Recognize

  Identify

  2.8 mm

  63.6 m (208.7 ft)

  25.4 m (83.3 ft)

  12.7 m (41.7 ft)

  6.4 m (21.0ft)

  3.6 mm

  80 m (262.5 ft)

  32 m (105.0 ft)

  16 m (52.5 ft)

  8 m (26.2 ft)

  Video

  Frame Rate

  CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H

  Resolution

  5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)

  Day/Night

  Auto switch by ICR

  BLC

  BLC/HLC/DWDR

  WDR

  DWDR

  White Balance

  Auto; manual

  Gain Control

  Auto; manual

  Noise Reduction

  2D NR

  Smart IR

  Yes

  Mirror

  Off/On

  Privacy Masking

  Off/On (8 area, rectangle)

  Certifications

  Certifications

  CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

  Port

  Audio Interface

  One channel built-in mic (-A)

  Video Output

  Video output choices of CVI/TVI/AHD/CVBS by one BNC port

  Power

  Power Supply

  12V ±30% DC

  Power Consumption

  Max 3.2W (12V DC, IR on)

  Environment

  Operating Temperature

  -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

  Storage Temperature

  -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

  Protection Grade

  IP67

  Structure

  Casing

  Metal dome+metal cover+plastic decorative ring

  Camera Dimensions

  109.9 mm × 88.1 mm ( 4.33" × 3.47" )

  Net Weight

  0.33 kg (0.73 lb)

  Gross Weight

  0.44 kg (0.97 lb)
